Not too familiar with campagnolo but is there an adapter plate underneath that caliper that you could flip around?
Ok-Twist6106 on
Buy a bigger rotar
pkporto1 on

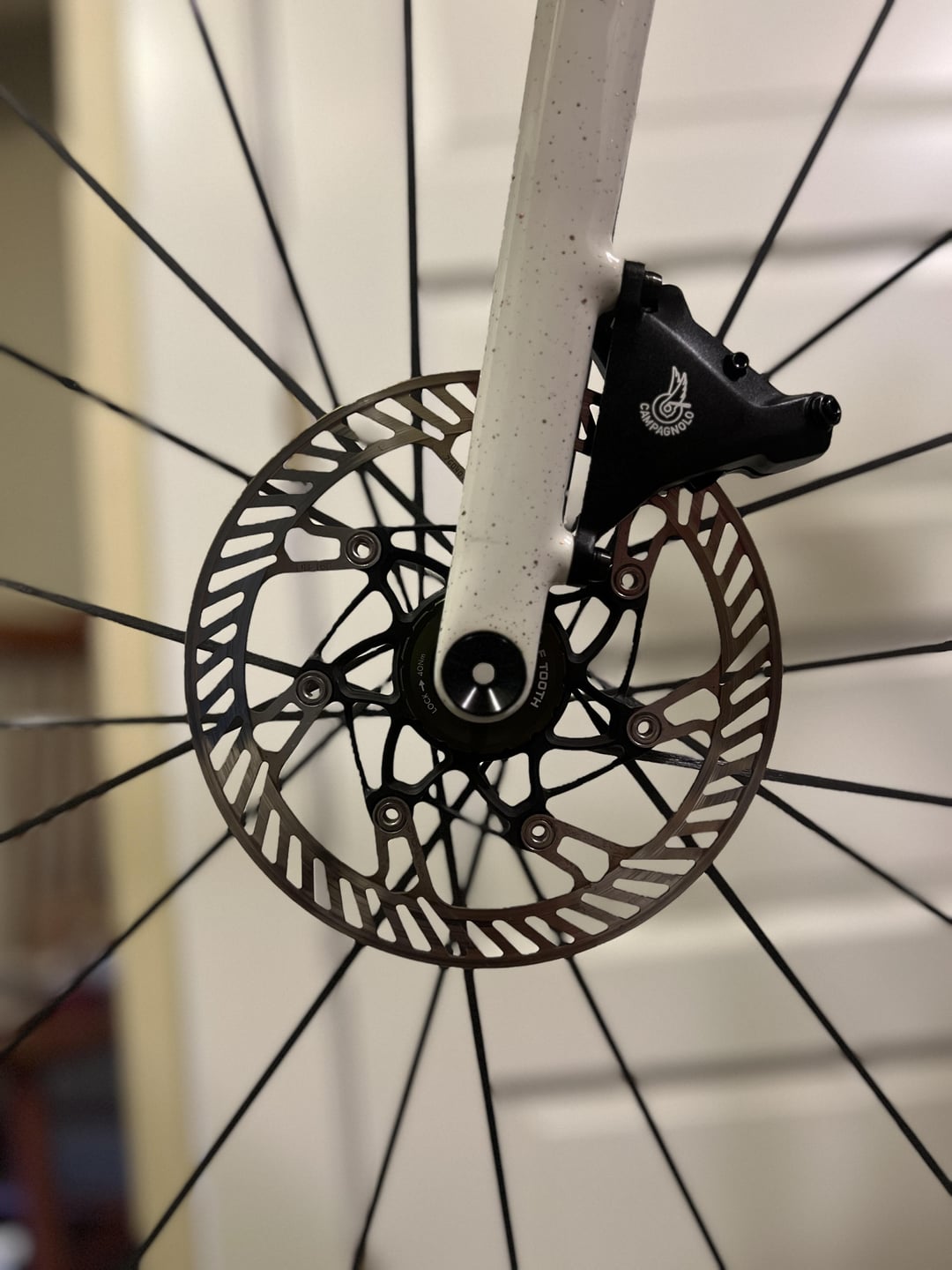

Maybe the rotor is 140mm, have you measure it?
Mayhem_SWE on
Road bikes normally have the front flat mount bolt holes placed so that rotors of 140 and 160 mm can be used depending on the orientation of the adapter. Your fork looks to have the holes farther from the axle to accomodate 160/180 mm rotors, while your caliper has the adapter built-in so you are forced into the position furthest from the axle. So your only two solutions are pretty much:
1. Switch to a 180 mm rotor.
2. Switch to an Ekar rear caliper with a standard flat mount front adapter plate.
Mirokiko on
That disc is obviously used and warn correctly so what happened when you come to this?
Putrid-Mode on
Your disk is too small
dougalmanitou on

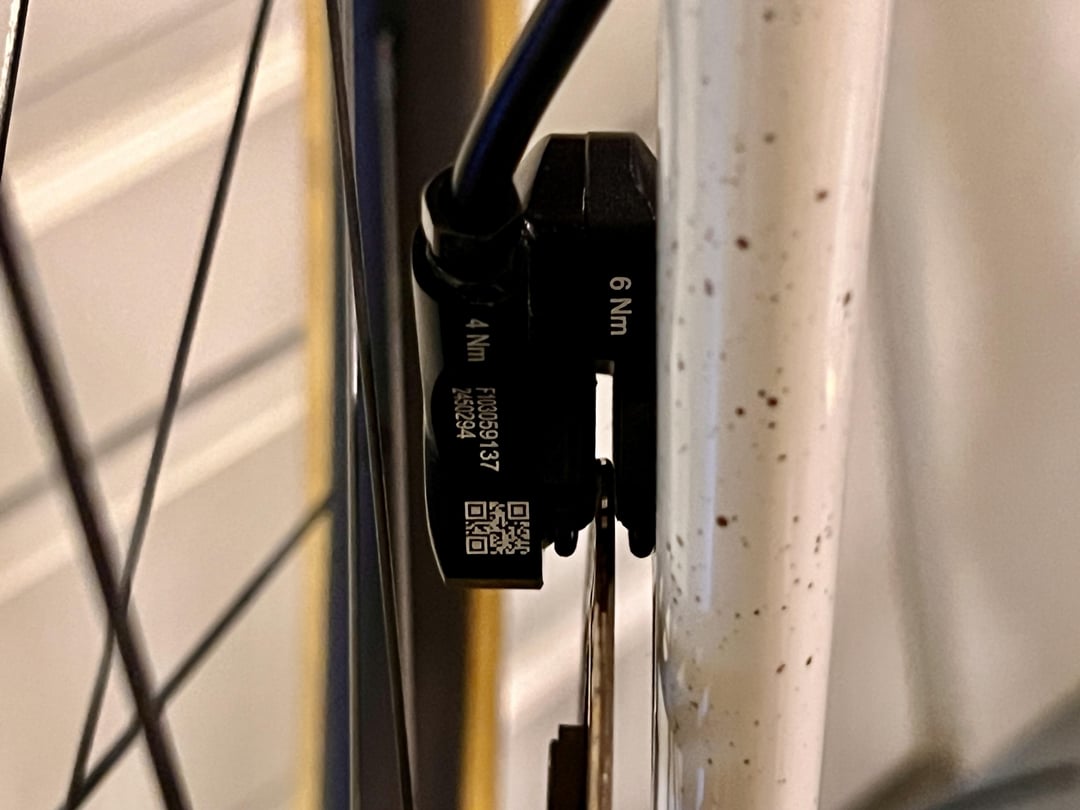

You are using a 140mm rotor with a 160 caliper.
point-virgule on
Who’s great idea was to make rotors with more hole than metal? It makes no engineering sense at all
badger906 on
It likes smaller than 160mm. You can get a flat mount adapter that will move it down.
caliper is +20, fork is +20 so you would need a 180mm rotor with this caliper/combo. The rear caliper type/style (+0) with an adapter is what you would want for 160mm front rotor
SimilarSpend5158 on
The problem is the rotor is small consider buying a bigger rotor that will fit, and preferably a 180mm rotor.
13 Comments
Not too familiar with campagnolo but is there an adapter plate underneath that caliper that you could flip around?
Buy a bigger rotar
Maybe the rotor is 140mm, have you measure it?
Road bikes normally have the front flat mount bolt holes placed so that rotors of 140 and 160 mm can be used depending on the orientation of the adapter. Your fork looks to have the holes farther from the axle to accomodate 160/180 mm rotors, while your caliper has the adapter built-in so you are forced into the position furthest from the axle. So your only two solutions are pretty much:
1. Switch to a 180 mm rotor.
2. Switch to an Ekar rear caliper with a standard flat mount front adapter plate.
That disc is obviously used and warn correctly so what happened when you come to this?
Your disk is too small
You are using a 140mm rotor with a 160 caliper.
Who’s great idea was to make rotors with more hole than metal? It makes no engineering sense at all
It likes smaller than 160mm. You can get a flat mount adapter that will move it down.
https://preview.redd.it/p77l49z2duod1.jpeg?width=1125&format=pjpg&auto=webp&s=e93035184202264b2586e32a011c071d2c08f497
You’re missing this
caliper is +20, fork is +20 so you would need a 180mm rotor with this caliper/combo. The rear caliper type/style (+0) with an adapter is what you would want for 160mm front rotor
The problem is the rotor is small consider buying a bigger rotor that will fit, and preferably a 180mm rotor.
