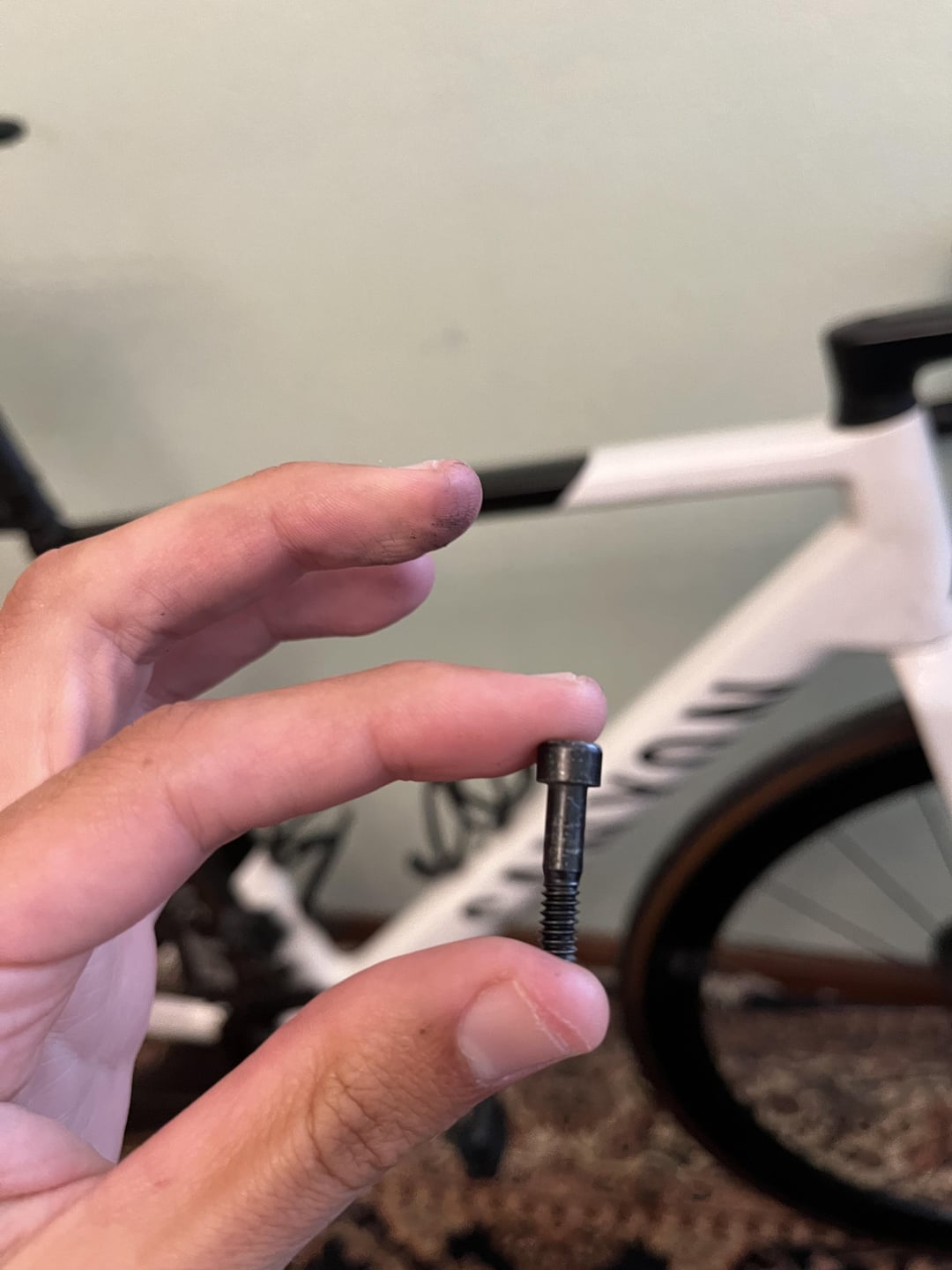

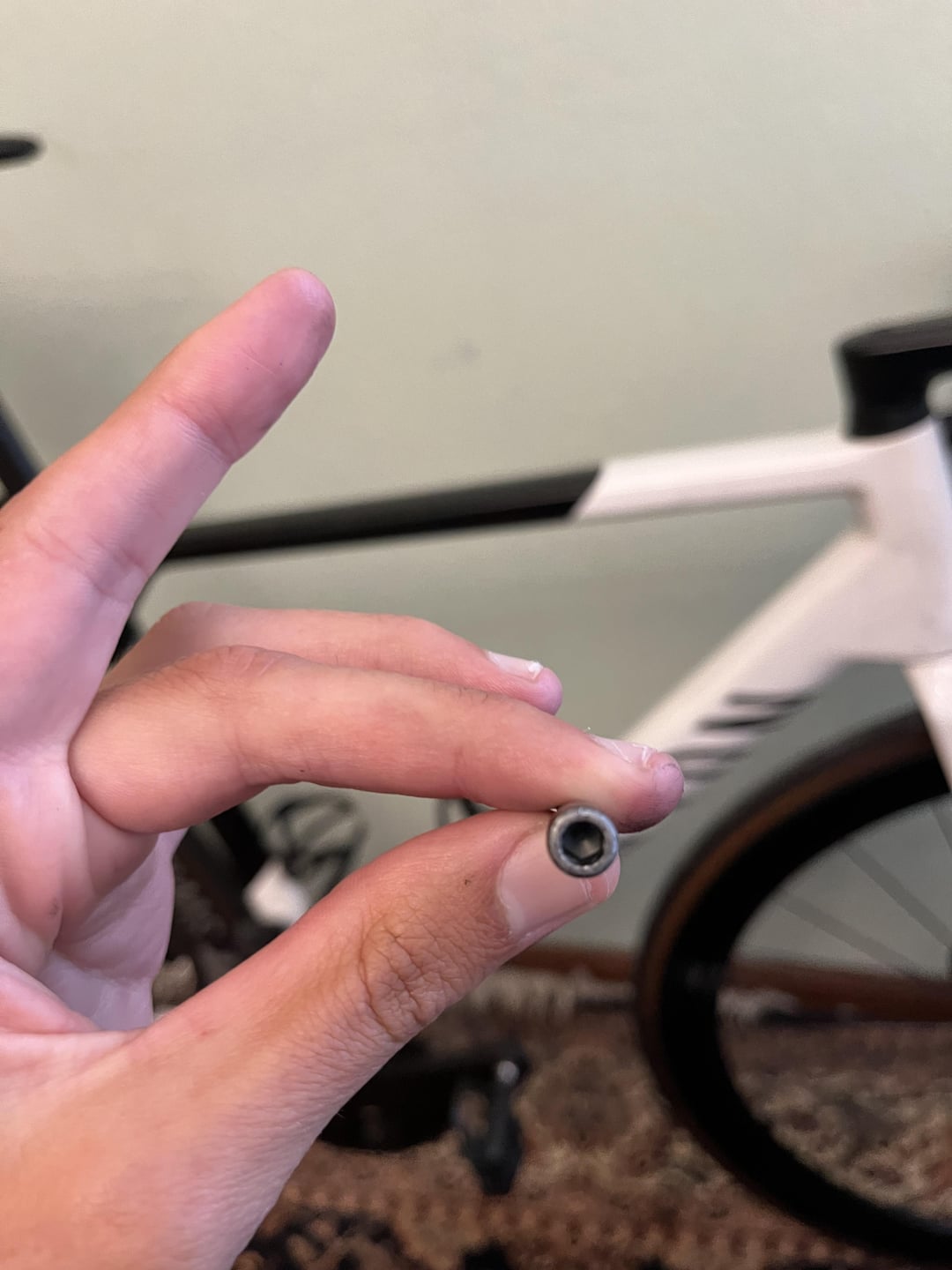

Facebook Twitter LinkedIn Pinterest Bluesky Threads This bolt fell from the Ultimate. Anyone knows where it belongs? by freiren Bicycle Bicycling Bike Biking Canyon Bicycles Canyon Bikes Cycling
oquido on September 9, 2024 3:19 pm Have you checked rear side of the fork just under the bottom headset?
knarfy2222 on September 9, 2024 3:22 pm If you’re sure it fell off then look closely you’ll find it. Looks big enough for handle bars? Bottle cage?
flamingNotMe on September 9, 2024 3:23 pm Check both sides of both crank arms? Looks a bit like a crank bolt
Alive_Woodpecker5 on September 9, 2024 3:35 pm My wife had both stem bolts missing and I only found one in the bottom of the box. This was on an Endurace.
freiren on September 9, 2024 3:45 pm I’m including all the checked parts to make sure I’m not missing something: [https://imgur.com/a/8R1e2Il](https://imgur.com/a/8R1e2Il)
thatguyhy10 on September 9, 2024 4:24 pm It’s looks like the screws for attaching water bottle holders. Are all those still in place for your water bottle holders?
Ok-Shake5152 on September 9, 2024 4:49 pm If all else fails then you must invoke Michael Bolt-on and walk around the bike holding the bolt and singing “Tell me, how am I supposed to live without you…..” 😂
305Cyclist on September 9, 2024 5:22 pm Here’s the Ultimate parts diagram [Ultimate Parts Diagram](https://www.canyon.com/on/demandware.static/-/Library-Sites-canyon-shared/default/dw1ad3d48a/explosiondrawings/2022/ultimate/R100-01_BOM_Ultimate%20CF%20SLX.pdf)
15 Comments
Have you checked rear side of the fork just under the bottom headset?
If you’re sure it fell off then look closely you’ll find it. Looks big enough for handle bars? Bottle cage?
Check both sides of both crank arms? Looks a bit like a crank bolt
check the calipers
My wife had both stem bolts missing and I only found one in the bottom of the box. This was on an Endurace.
Calipers, seat post, stem/handlebar, cranks.
I’m including all the checked parts to make sure I’m not missing something:
[https://imgur.com/a/8R1e2Il](https://imgur.com/a/8R1e2Il)
The thread look like to plastic parts!
Seatpost?
It’s looks like the screws for attaching water bottle holders. Are all those still in place for your water bottle holders?
Bottle cage maybe
If all else fails then you must invoke Michael Bolt-on and walk around the bike holding the bolt and singing
“Tell me, how am I supposed to live without you…..”
😂
Seat rail clamp?
Are you sure though?
Here’s the Ultimate parts diagram
[Ultimate Parts Diagram](https://www.canyon.com/on/demandware.static/-/Library-Sites-canyon-shared/default/dw1ad3d48a/explosiondrawings/2022/ultimate/R100-01_BOM_Ultimate%20CF%20SLX.pdf)
