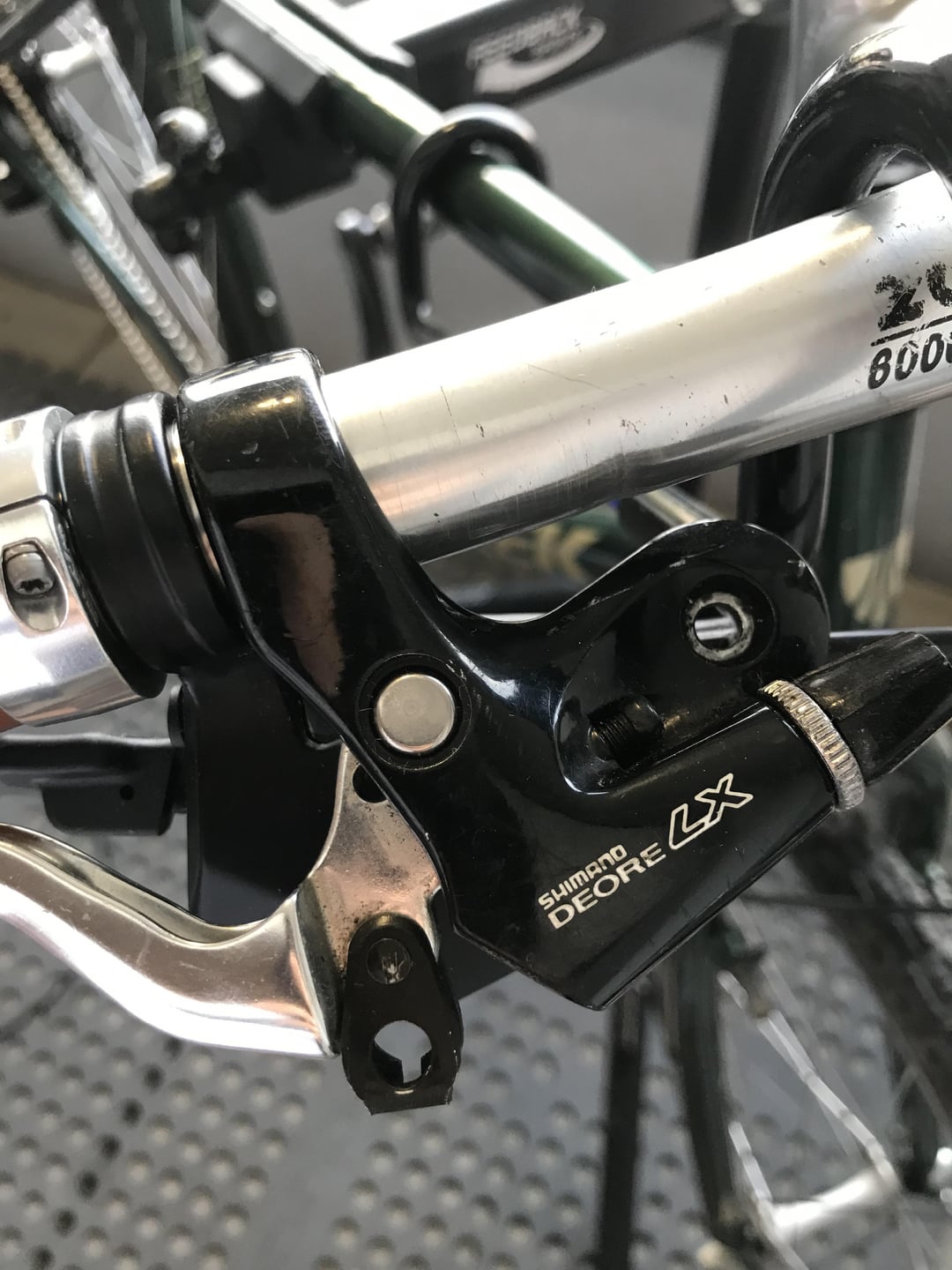

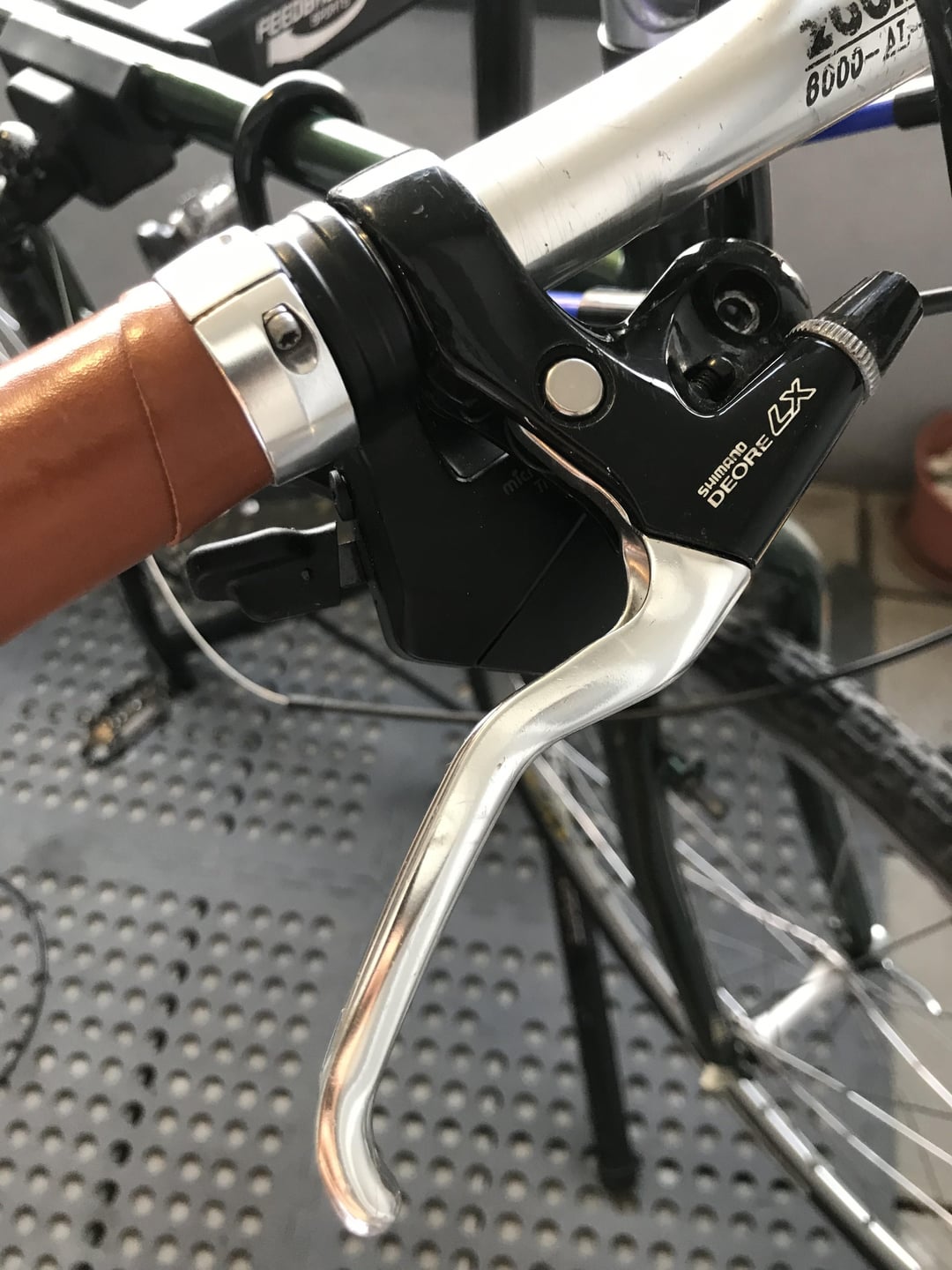

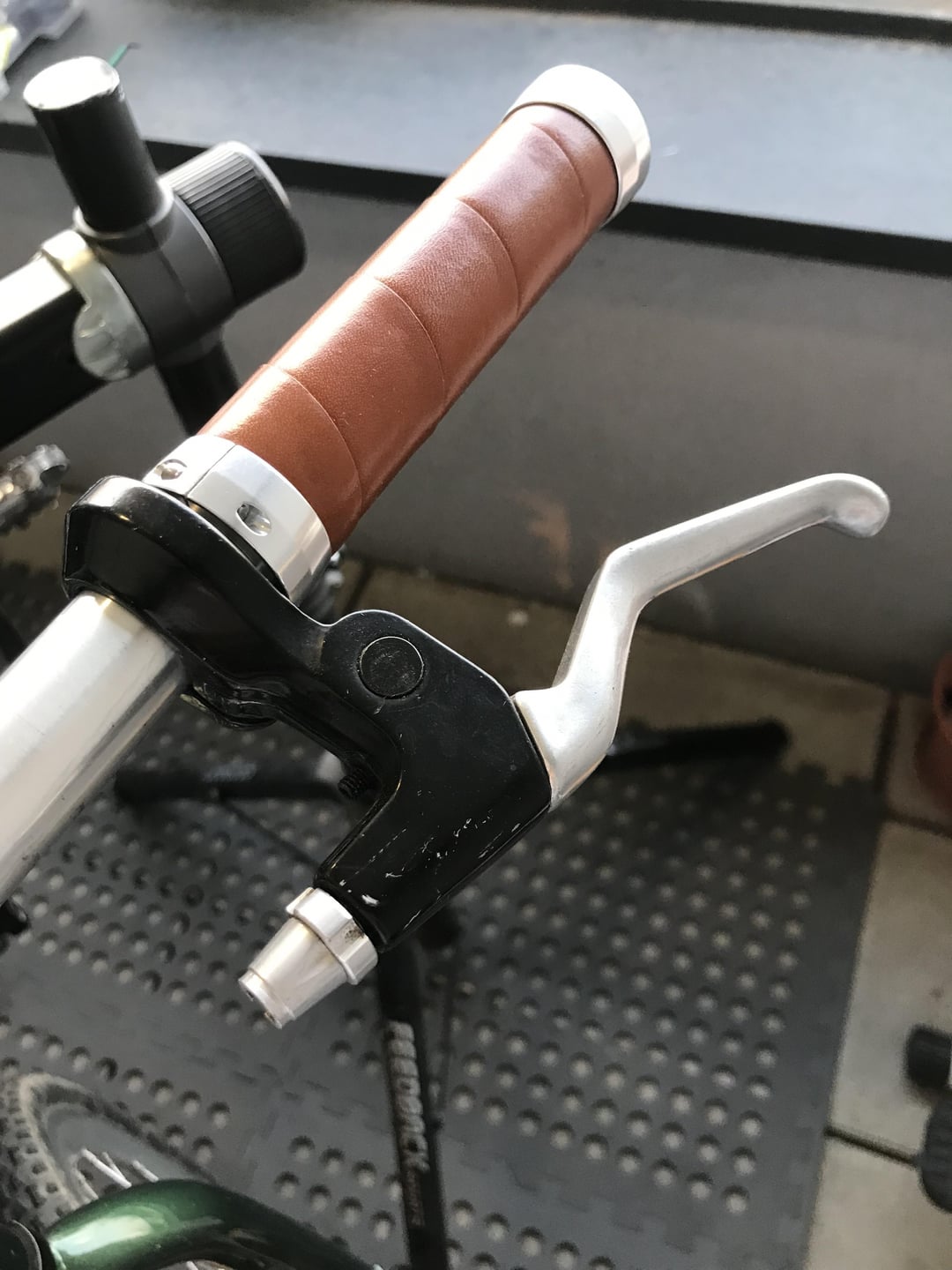

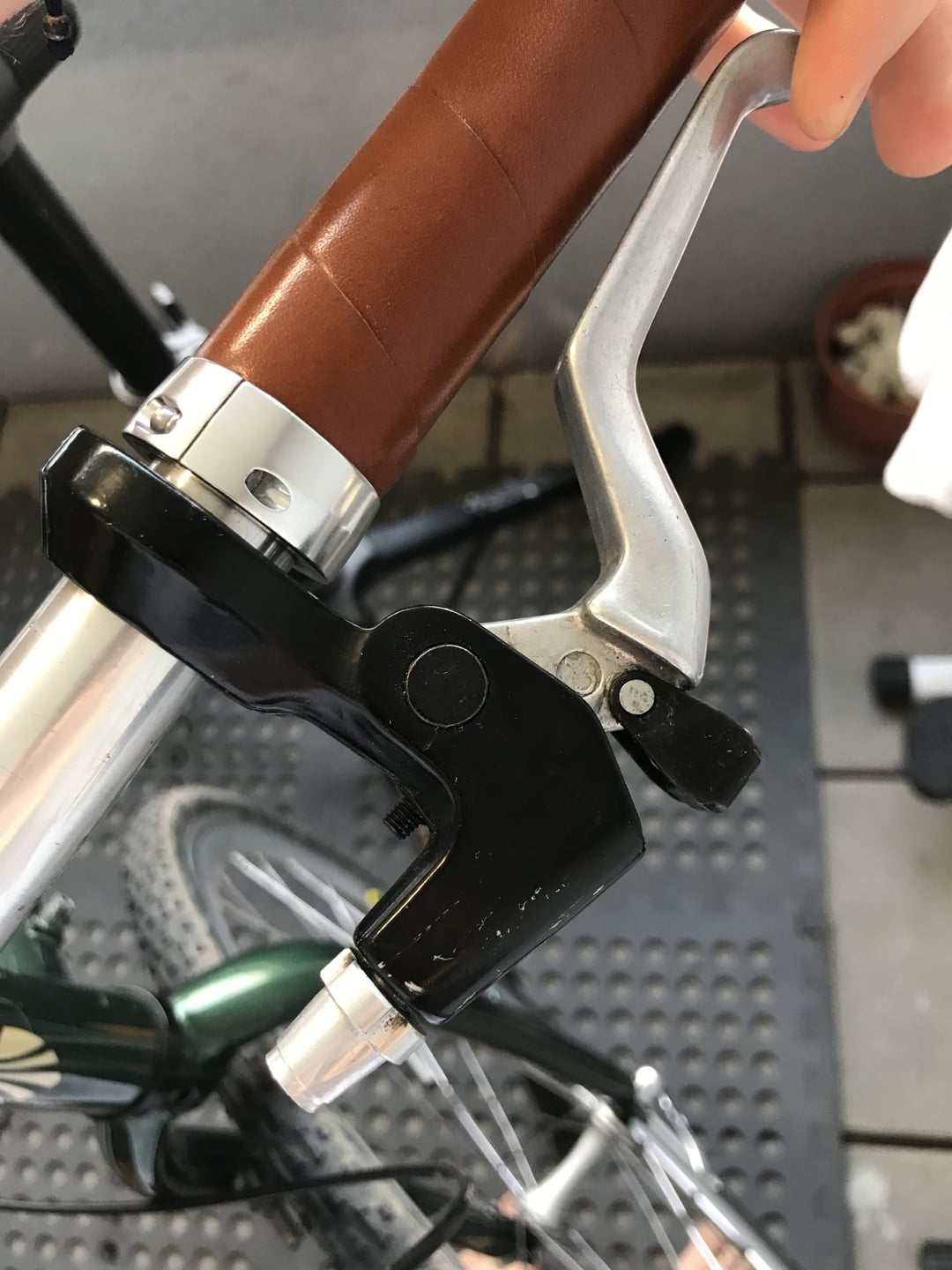

Facebook Twitter LinkedIn Pinterest Bluesky Threads Will these levers work with V Brakes (side pull)? by AnyBarnacle9287 Bicycling Bike Bike Repair Biking Cycling Repair
IKnewThisYearsAgo on August 31, 2024 5:21 am measure the distance from the lever pivot to the anchor pivot. 30 mm for canti 40 mm for v-brake
SpikeHyzerberg on August 31, 2024 5:25 am measure from the pivot to the cable end +/- 20mm short pull +/- 40mm long pull
5 Comments
Thanks for your help!
measure the distance from the lever pivot to the anchor pivot.
30 mm for canti
40 mm for v-brake
measure from the pivot to the cable end
+/- 20mm short pull
+/- 40mm long pull
Those definitely look like short-pull/canti levers.
These are for V brakes.
