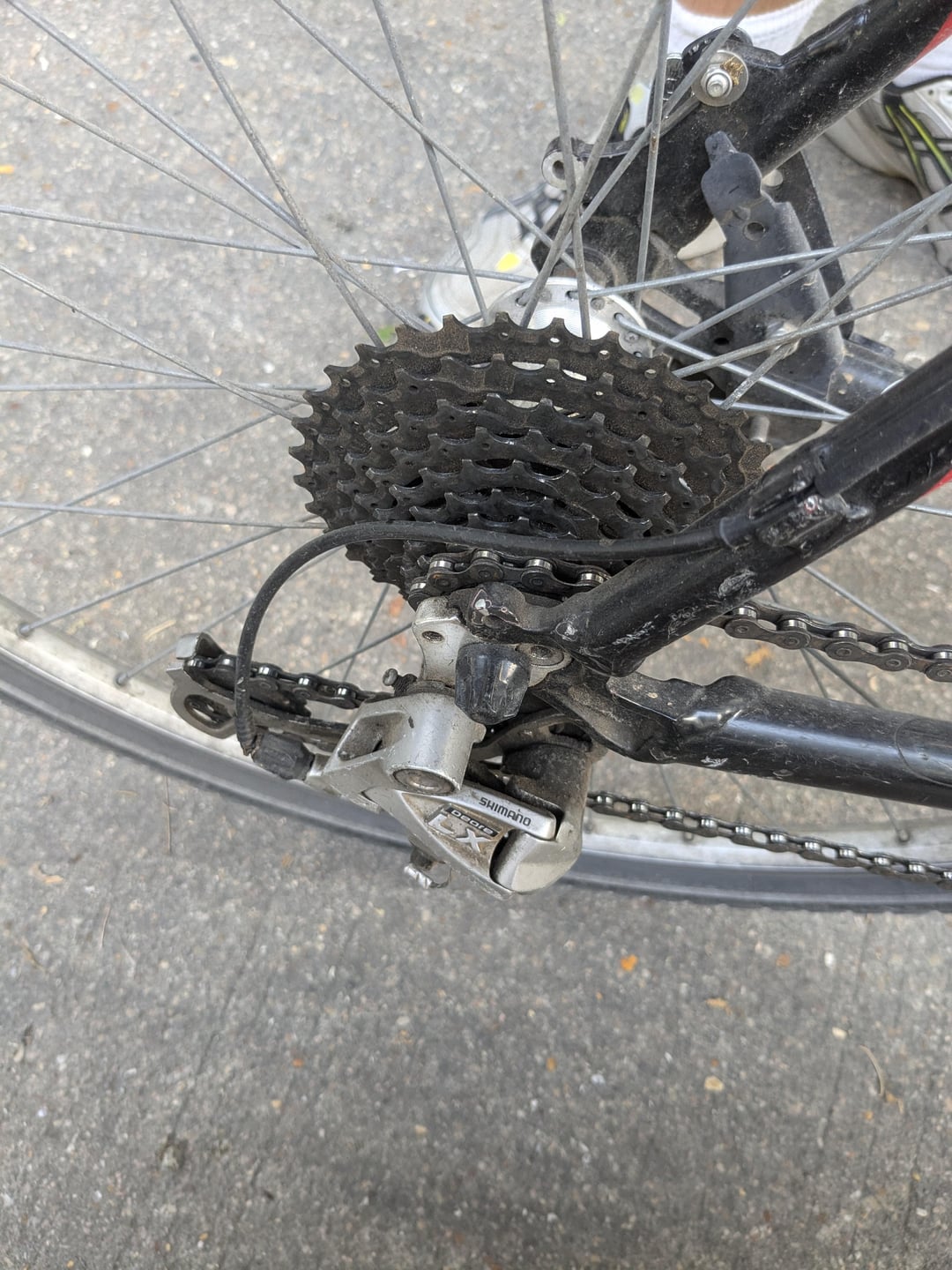

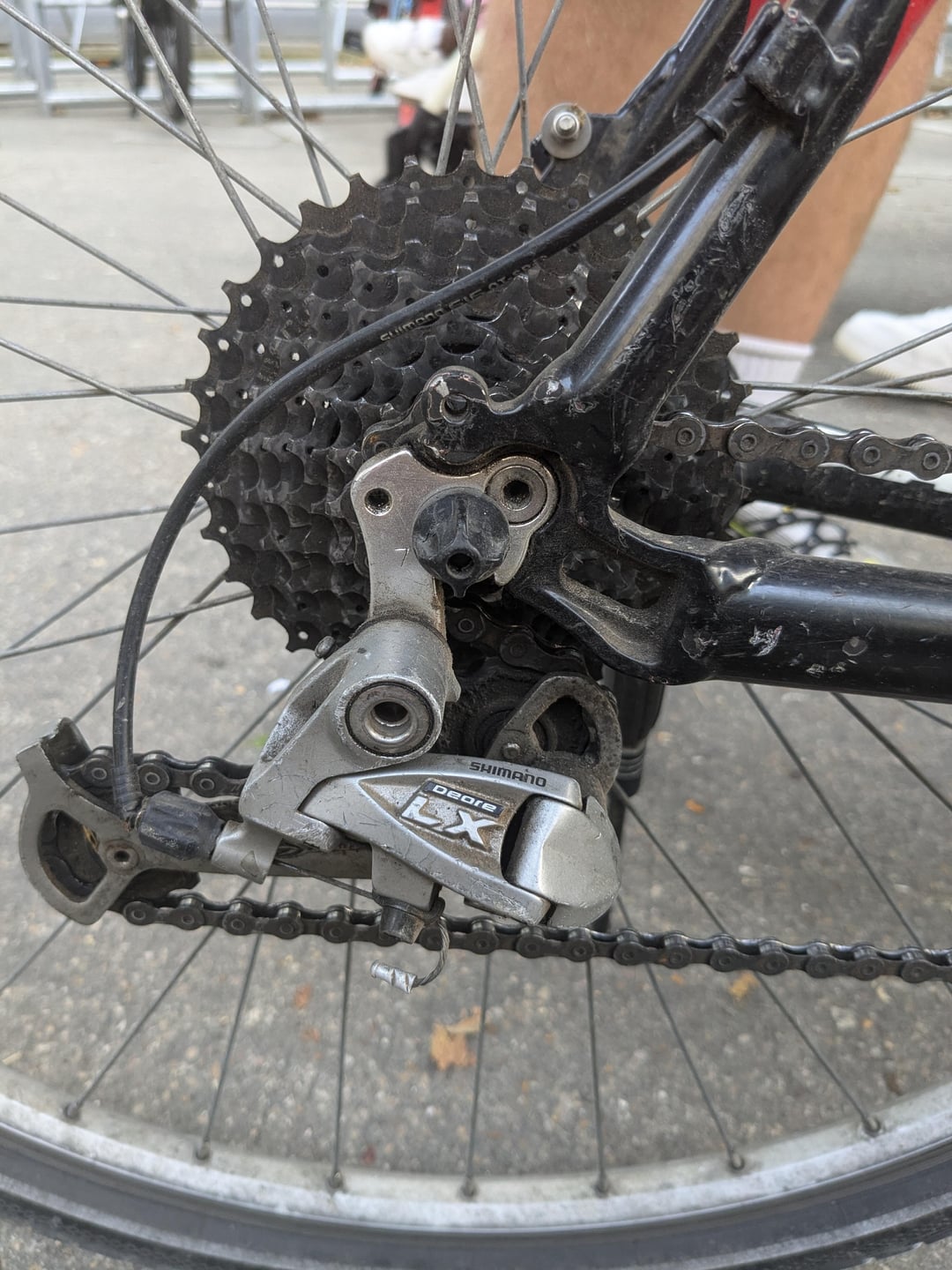

There is absolutely no way to tell whether your derailleur is broken from these two pics.
But it’s super obvious that the derailleur cable housing ferrule is broken and isn’t properly connected to the derailleur. Shifting will obviously suck big time.
ernieball2221 on
It doesn’t look broken, but sometimes it’s difficult to tell from a photo, but the cable going to it is far too short. It should have a gentle curve to it.
_rhenry01 on
That cable is a bit past it but if you are selling it cheap just point out that it needs to be repaired (new cable and housing) and stick to the price. Deore DX is a nice shifting derailleur.
Working-Promotion728 on
The shift cable housing is mangled, and I suspect it was too short. If you want to fix it, you’ll need a new cable and a piece of housing that is a few inches longer.
Leading_Outcome4910 on
The chain appears too long. Derailleur is folded back on itself too heavily.
