Hello everyone,
I'm unsure if this is the place to ask, so if it isn't, feel free to remove it.

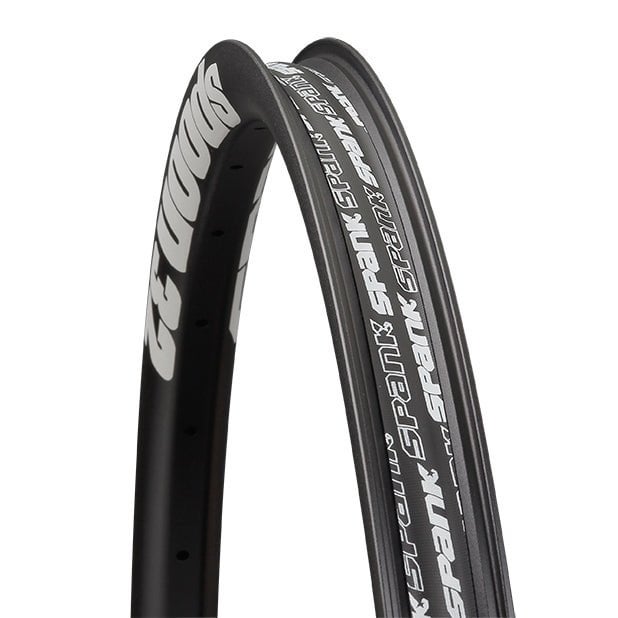

So, the problem I've been having since 2022 has been building a rear wheel for my e-bike. I bought a QS 3kW hub motor from eBay and found out I needed to build it myself. I decided to buy a Spank 26" rim for the build (SPOON 32 Rim – SPANK Industries (spank-ind.com)) but overlooked a minor detail. The motor I bought has 36 holes, whereas my rim has the standard 32. This has made spoking an insane challenge, and I can't figure it out. I've tried straight and single-cross patterns, but they end up causing loose spokes, which sounds like a safety hazard. Given the dimensions and such, I was wondering if anyone here could let me know of a solution. I'll try my best to provide any information anyone needs. Thanks in advance.
by catch-here-24
1 Comment
The solution is to get a 36-spoke rim to match your 36-spoke hub.
There are ways to lace mismatched hubs and rims together, but it is only really done by bored veteran wheel builders as a challenge. Mismatched wheel/rim combos are always going to be weaker than a matched set and would be a very bad ideal for a hub motor wheel build.
Honestly, if you’ve never built a wheel before, a hub motor build isn’t likely to go well for you.
