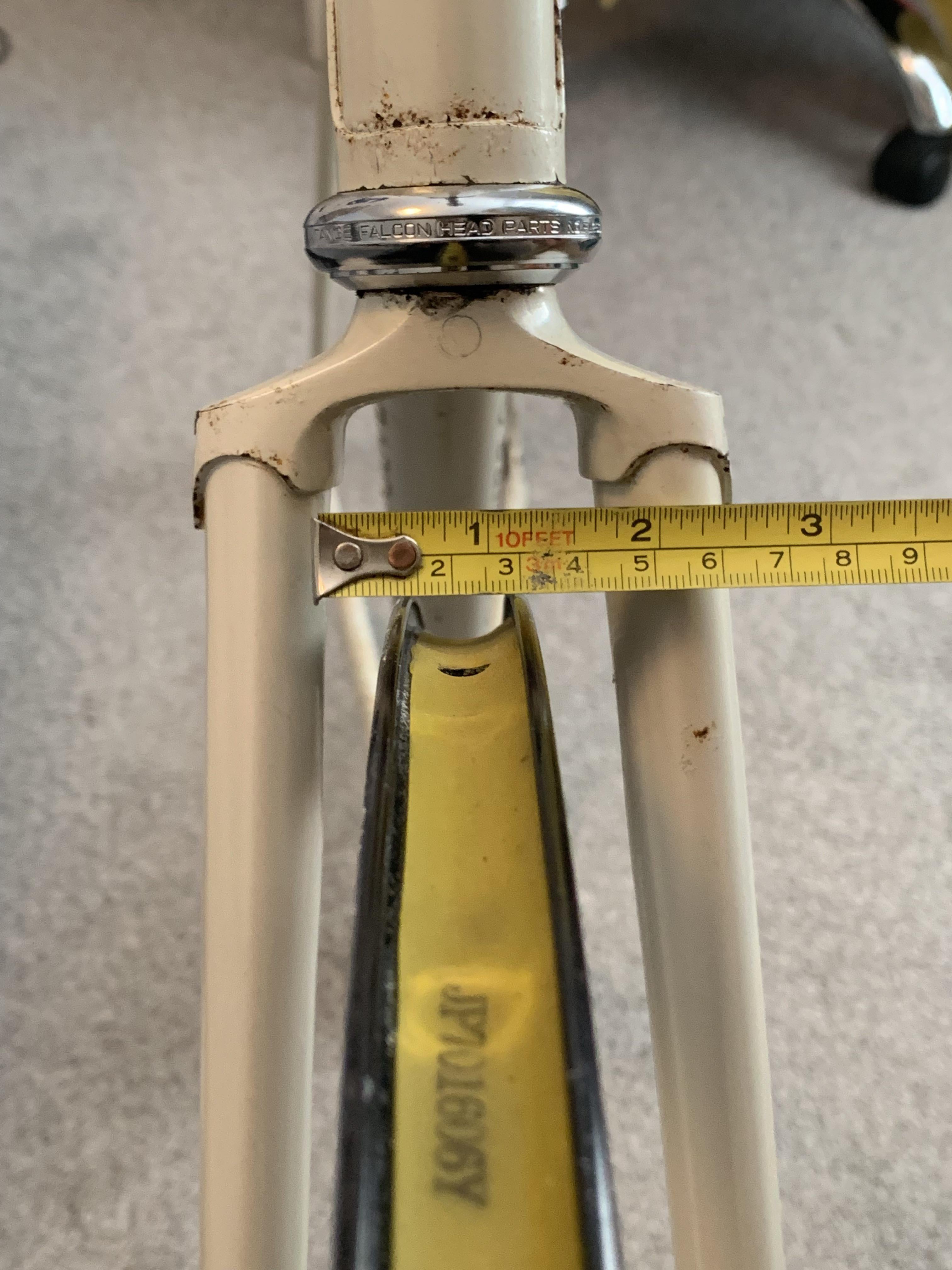

Trying to make this somewhat tracklocross-esque but being a vintage track frame tire size isn’t gunna be huge. Hoping to squeeze as big as possible in there. Would 30’s fit?
by 4tunabrix
Trying to make this somewhat tracklocross-esque but being a vintage track frame tire size isn’t gunna be huge. Hoping to squeeze as big as possible in there. Would 30’s fit?
by 4tunabrix
4 Comments
32s might fit.
Anyways you have to check the downtube and rear
That looks like a pretty narrow internal width on the rim – which is important to keep in mind because it’s going to drastically effect how wide a tire is vs what that tire is labeled. What rims are on there? Also – don’t just look at the front, the actual problem spot is often in the rear between the chainstays.
I’d also recommend getting a cheap caliper for better measurements like this – they’re just so useful for so many different bike maintenance qs.
If I was a betting man I’d say you could maybe try something labeled 35 and have it fit like a 32? But the only real way to tell is actually mounting one on your rim unfortunately. It also depends on your risk tolerance in terms of clearance between the rubber & the frame.
Looks like they have an inner width of 15mm according to the specs on [this store page.](https://bicyclewheelwarehouse.com/product/mavic-open-pro-rim/)
ETA: The rims, not the fork, to be clear.
Remember, it’s not just the width, it’s also the height. I have a couple of “tall” tires that measure taller than their overall width.
