3rd Posting. I designed the geometry from the ground up in 2021, frame actually built by Xian Yongwei Metal Works (XACD)
What is new in this build?
* 34cm bars from Syngergy / BikeDoc (280mm C-C at the hoods)
* Custom Ti cranks. Trust me you don’t want to buy these
* XCadey PM
* 130mm FSA SMR Stem
* A Proto 3D printed transition spacer / headset cap internally using the Deda DCR compression ring
* Prototype angle adjustable out front combo computer mount
* 3d printed Ti stem cap
What is out?
* 40cm Enve SES Aero bars (35cm at the hoods)
* Rival AXS crank with Praxis 48/32 chainrings (165mm cranks)
* 100mm FSA ACR stem.
Rest of Build list:
* 3T Fundi disc fork (50mm offset) with the cable port shaved and plugged for internal ACR routing
* Ascent Polaris wheels
* Silca Ti bottle cages
* Woodman ISP topper
* 2 Zeno Speedlink couplers so I can drop the fork in about 2 minutes for maintenance and to check on it and not rebleed the brakes each time.
* 3D printed saddle rail go pro mount + adapter from amazon for a Varia radar and rear light
* Pair of Cane Creek 110 ec44 headset cups

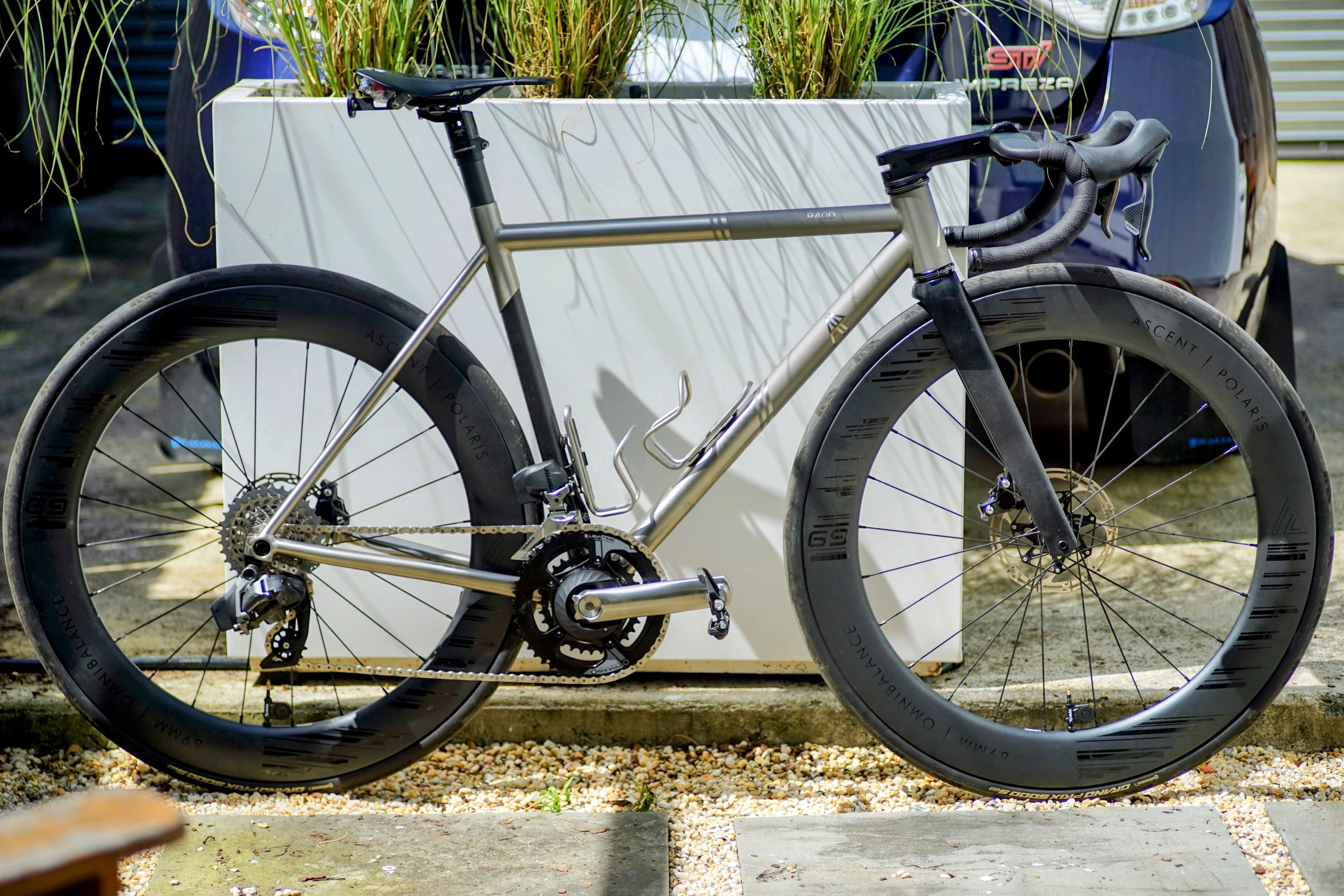

Reach is ~395mm stack is ~510mm as measured from the top of the top bearing cup. Weight as pictured is 8.3kg.
4 Comments
3rd Posting. I designed the geometry from the ground up in 2021, frame actually built by Xian Yongwei Metal Works (XACD)
What is new in this build?
* 34cm bars from Syngergy / BikeDoc (280mm C-C at the hoods)
* Custom Ti cranks. Trust me you don’t want to buy these
* XCadey PM
* 130mm FSA SMR Stem
* A Proto 3D printed transition spacer / headset cap internally using the Deda DCR compression ring
* Prototype angle adjustable out front combo computer mount
* 3d printed Ti stem cap
What is out?
* 40cm Enve SES Aero bars (35cm at the hoods)
* Rival AXS crank with Praxis 48/32 chainrings (165mm cranks)
* 100mm FSA ACR stem.
Rest of Build list:
* 3T Fundi disc fork (50mm offset) with the cable port shaved and plugged for internal ACR routing
* Ascent Polaris wheels
* Silca Ti bottle cages
* Woodman ISP topper
* 2 Zeno Speedlink couplers so I can drop the fork in about 2 minutes for maintenance and to check on it and not rebleed the brakes each time.
* 3D printed saddle rail go pro mount + adapter from amazon for a Varia radar and rear light
* Pair of Cane Creek 110 ec44 headset cups
Reach is ~395mm stack is ~510mm as measured from the top of the top bearing cup. Weight as pictured is 8.3kg.
Photo of the cockpit is here: [https://imgur.com/1JBFnKP.jpg](https://imgur.com/1JBFnKP.jpg)
Edit: Sorry for the CA, used a vintage lens.
how’s the handling with the 34cm bars?
This bike is insane. Looks amazing
Looks so good! If you don’t mind sharing what was the cost for the frame?
