Facebook Twitter LinkedIn Pinterest Bluesky Threads Like the title suggests I may be a stupid bugger or just not able to fit it for lack of trying, unsure if there's a chance I'm doing something wrong or If it will never work at all by Random_username111jr Bicycling Bike Bike Repair Biking Cycling Repair

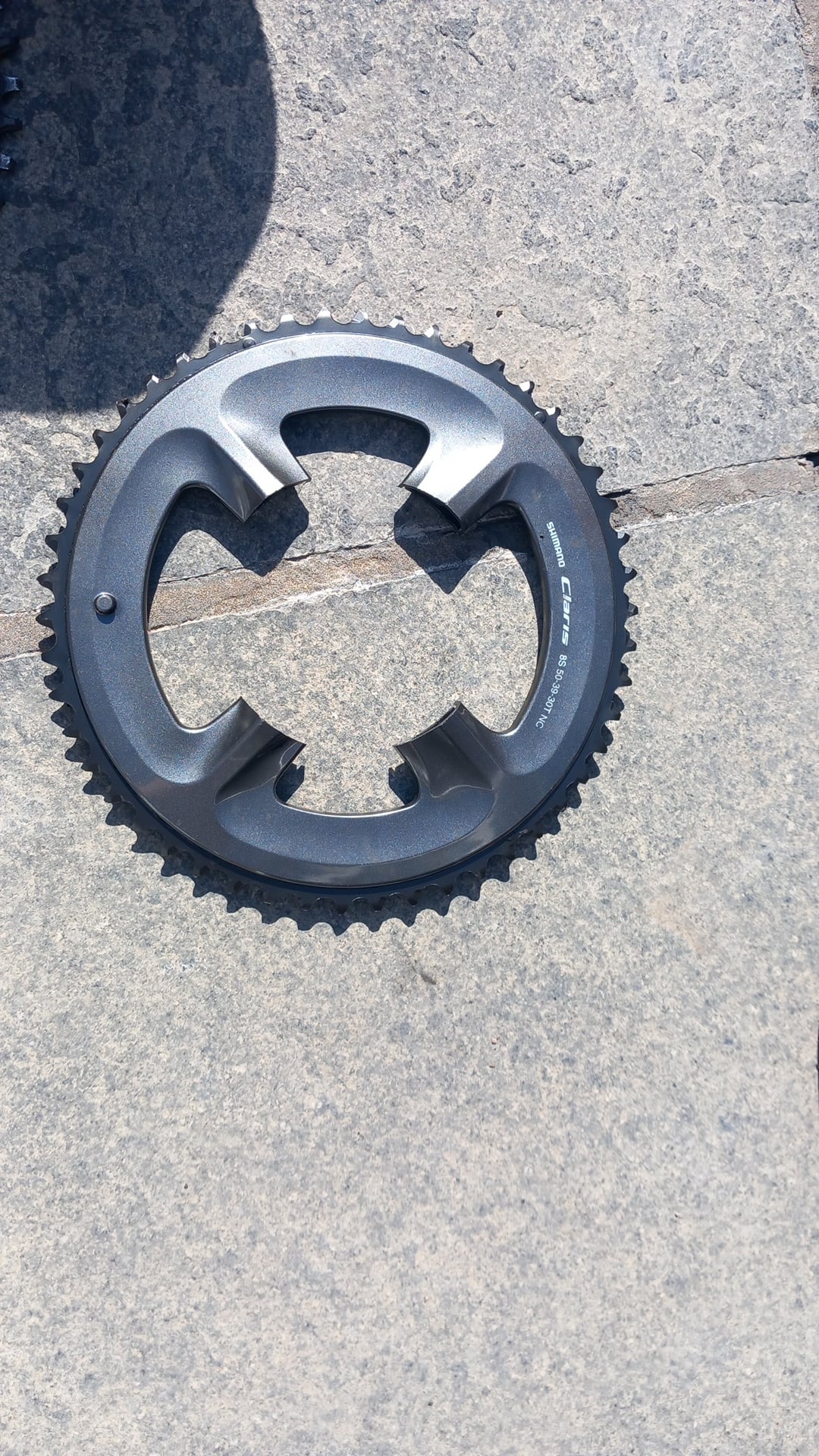

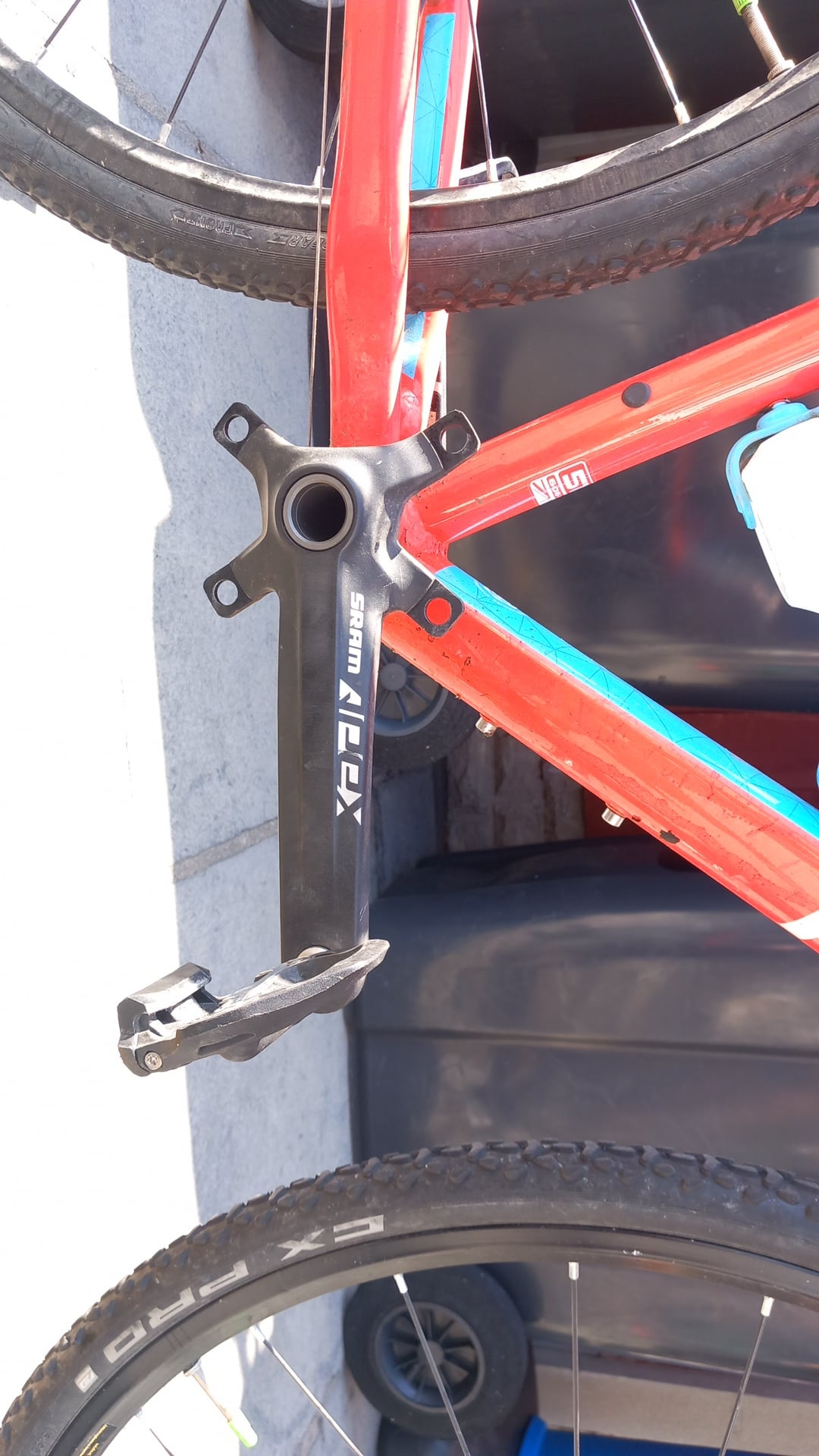

MGTS on June 5, 2024 4:06 pm Sram crank, Shimano chainring. Shimano is known for making chainrings that only fit their cranks. Get an Sram or aftermarket chainring
tgibson12 on June 5, 2024 4:11 pm You need a SRAM chainring. Yes they are both the 4 bolt 110bcd but they do not use the same asymmetry.
schramalam77 on June 5, 2024 5:17 pm Looks a bit big for a 1x Chainring. I’d suggest doing a little research about chainring size before you commit to a new one.
8 Comments
Sram crank, Shimano chainring. Shimano is known for making chainrings that only fit their cranks. Get an Sram or aftermarket chainring
You need a SRAM chainring. Yes they are both the 4 bolt 110bcd but they do not use the same asymmetry.
If you’re running 1x, make sure you get a narrow-wide as well.
Looks a bit big for a 1x Chainring. I’d suggest doing a little research about chainring size before you commit to a new one.
You need a specific Sram Apex ring.
Send it back and buy the correct item.
Personally I would just return them. Not worth the hassle
Could you change the cassette instead?
