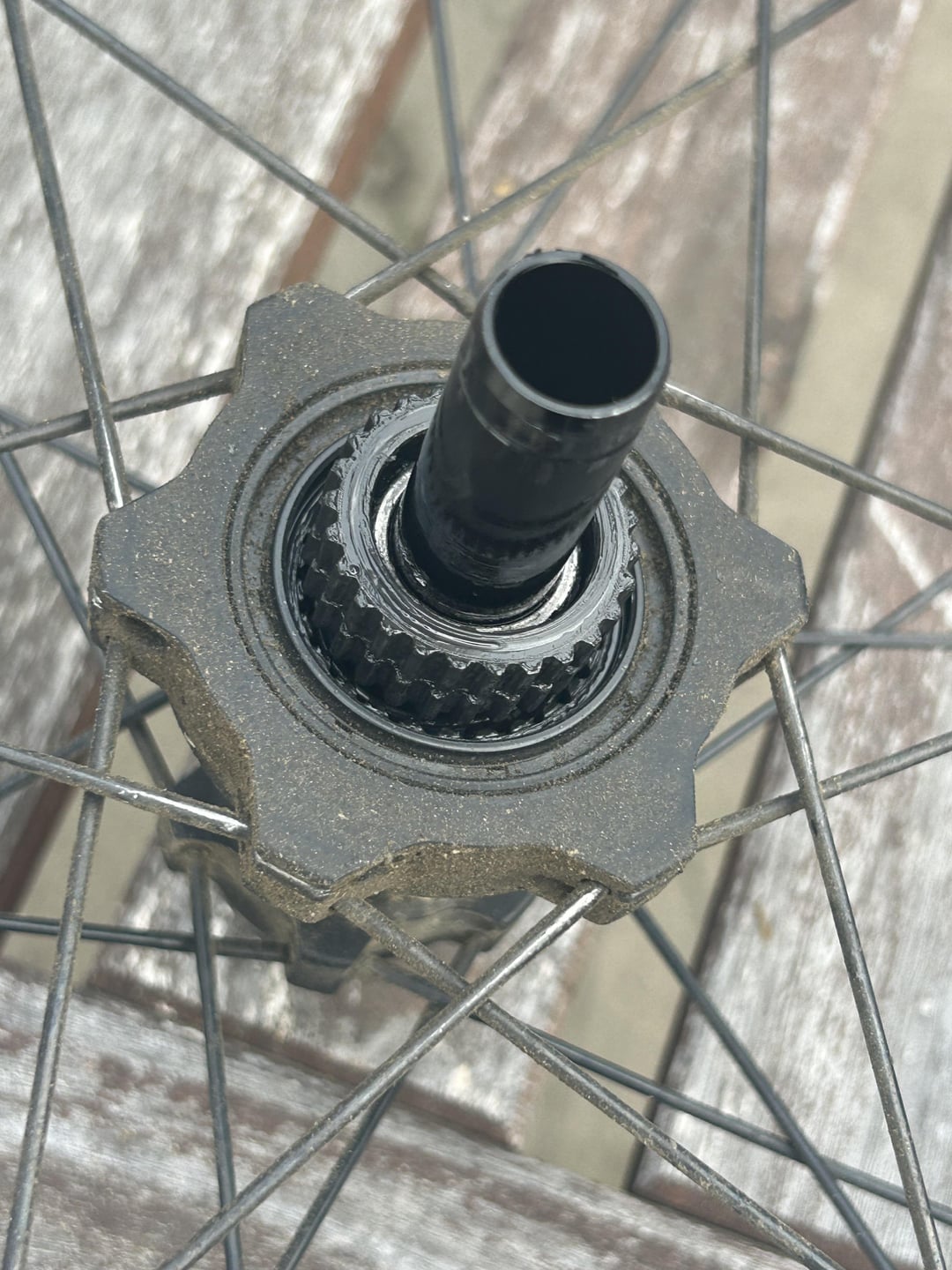

So I was taking off my cassettes and somehow the freehub came off too.
Wheels are FFWD Tyro II rim brake, QR screwers.
Can you advise on-
What to clean/lube?

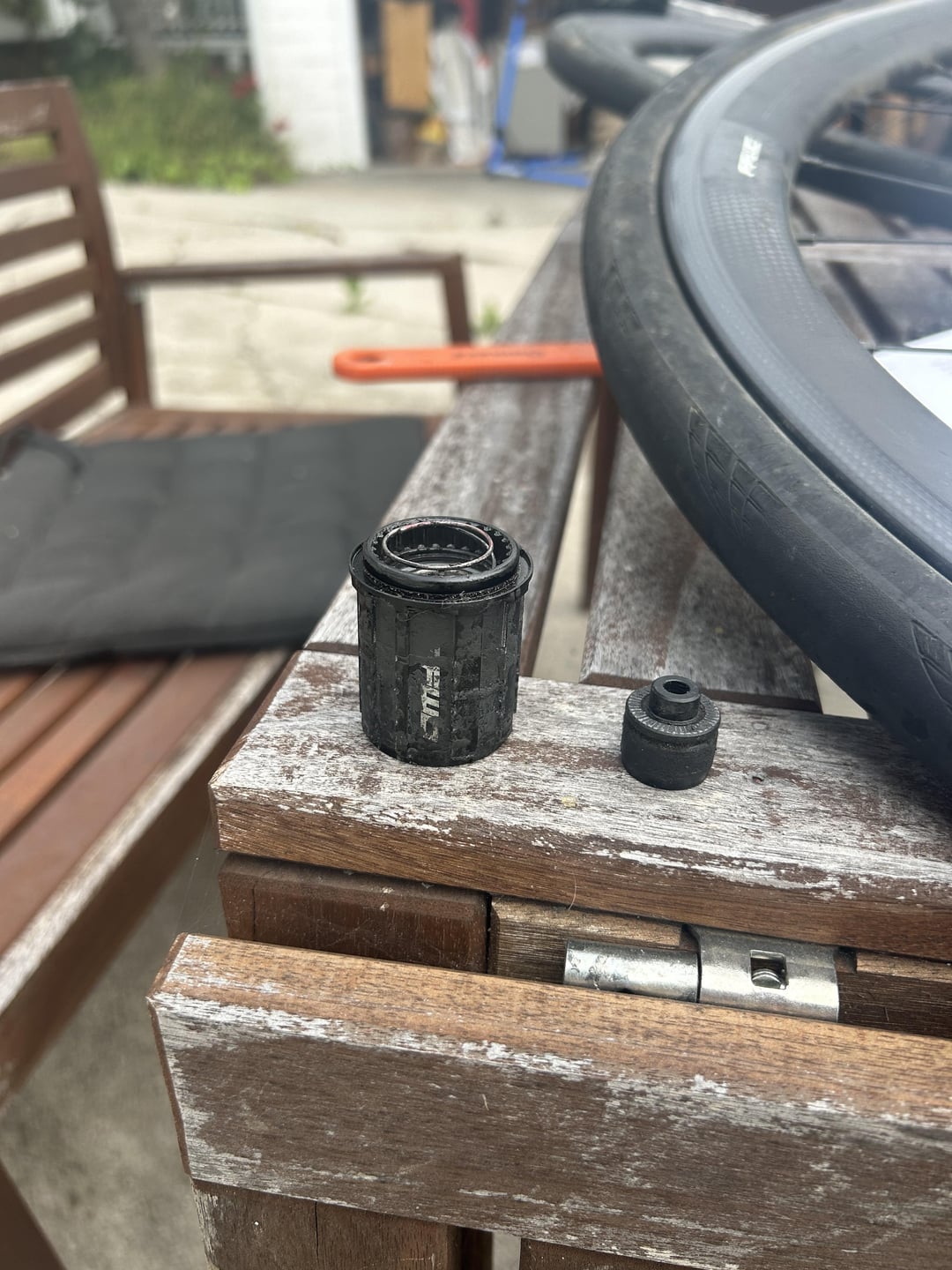

How to put back together? (Including orientation of the piece beside the free hub in first picture)
Thank you!
(Also, how did I manage to take this and not just the cassette?)
by railroadshorty
1 Comment
Looks like a ratchet drive from dt. Not the exp with the red-anno spacers. Correct me if I’m wrong. There’s two rings. The teeth face each other. Spring on either side. Squeeze it together with the driver and put the end cap on with the nipple facing out. Spin it and see if it’s right. Check the online manual or yt service videos for it. GLHF
