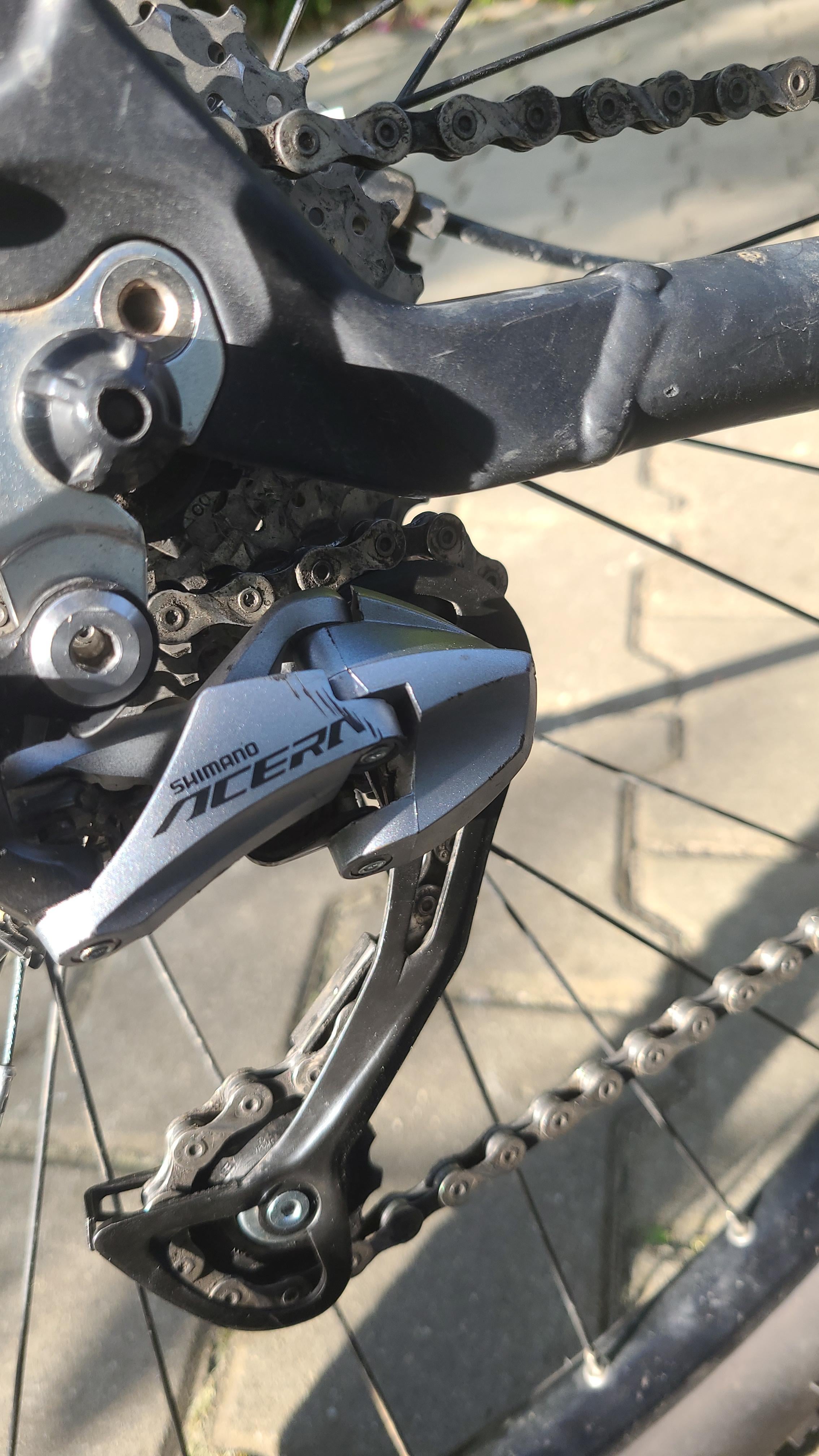

The derailleur (I think that s wjat it s called) is too inwards when compared to the chain so the chain keeps slipping. Pls help.
by Mediocre-Cup-1210
The derailleur (I think that s wjat it s called) is too inwards when compared to the chain so the chain keeps slipping. Pls help.
by Mediocre-Cup-1210
2 Comments
The chain is routed wrong. It needs to go above that little metal lip.
If that’s not what you’re trying to ask, I’ll guess something is bent (which is hard to see in your pictures). Get a new derailleur hanger in that case
You better need to describe the issue.
A: Chain too much inward (towards center of wheel) on biggest gear (=1st inner gear). If so, one of the two end screws needs to be turned clockwise to reduce the movement of the dereailleur to the inside..
B: if your derailleur in general does not meet the gears, you need to adjust the shift cable with the adjustment screw sitting a) at the end of the cable at the derailleur or b) at the end of the cable at the shifter.
In most cases, if your derailleur does not match the gear line of the inner gear, chances are high you have to adjust the cable.
