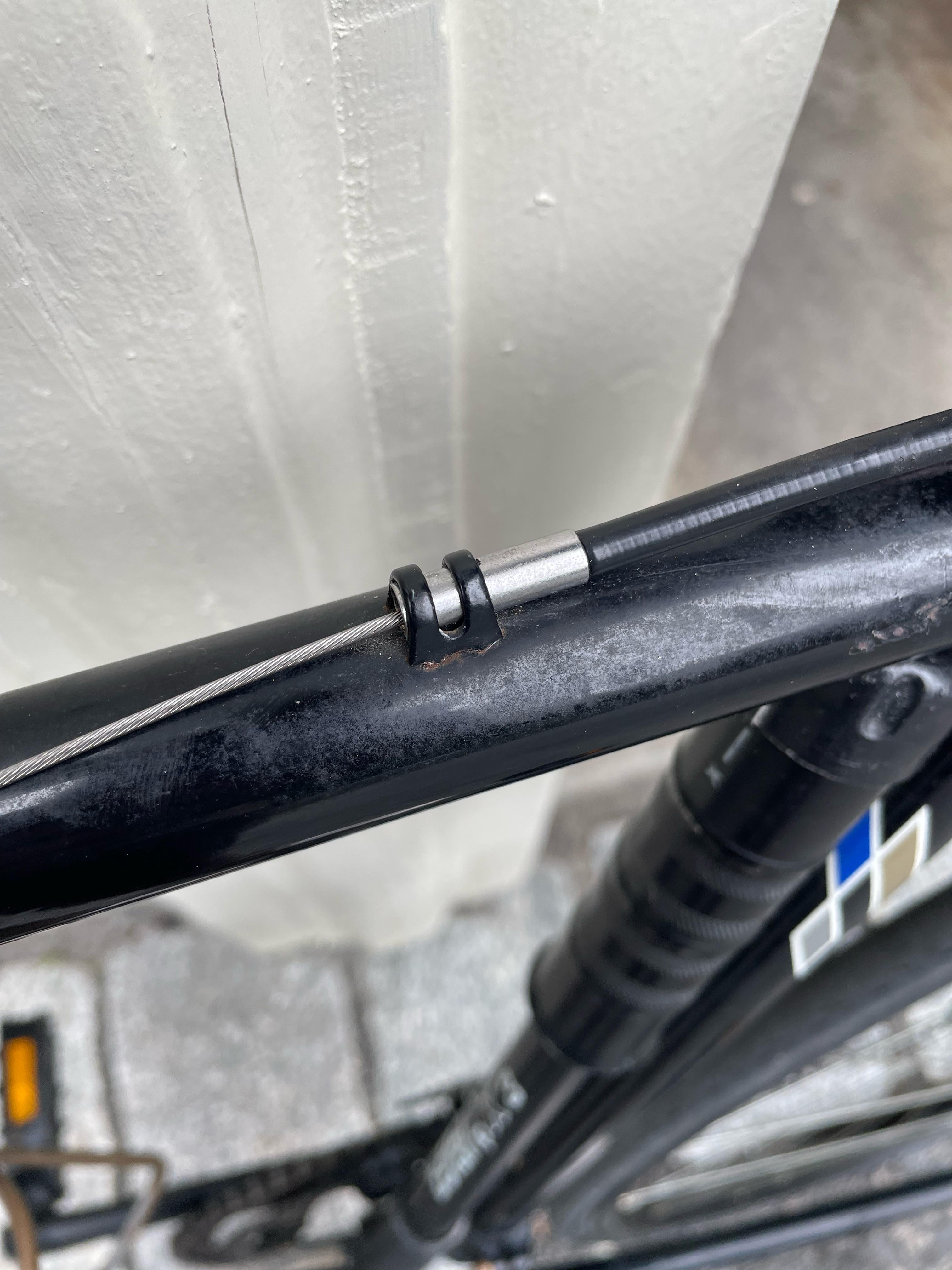

Is that ferrule at the back actually stepped? It kind of looks like not in which case it could pull through under braking force. You can get stepped ferrules but the cable guide has to be raised off the tubing a bit in order to accept it.
You can buy these but the biggest diameter needs to be bigger than 5mm or it will pass straight through the cable guide. Just search stepped ferrules on ebay
GenericName187 on
The little metal sleeve that goes on the end of cable housing is called a ferrule. They slot into a cable stop on the frame.
However, your frame appears to use brazed on cable guides that are intended for full length cable housing.
If that’s your bike, you should have a full run of cable housing. No need for the ferrule except at the very end, and even then you might not need them.
But if you do actually have a use for them, your LBS would probably give you a few for free if you don’t need a metric shit ton. If you live near me, I have a bunch you can have for free.
Lovelyterry on
Ferrule, no? Is that also what the metal bit of a pencil is called?
ruu-ruu on
you can pick them up for free at most bike shops
Morall_tach on
If there’s a bike shop near you, they probably have a bucket of a thousand of these.
fan22606 on
Ferrule. As far as I know shifter cable and break cable ferrules comes in different sizes (in diameter). Less than a dollar a piece sold at bike shops.
Vegbreaker on
Op you just don’t want to listen to anyone else do you? As in your post from 5 hours ago you need cable housing all the way through on this bike….
50c5 on
Shoutout to the Zefal HPX frame pump – mine is still going strong after some 25-30 years.
9 Comments
Is that ferrule at the back actually stepped? It kind of looks like not in which case it could pull through under braking force. You can get stepped ferrules but the cable guide has to be raised off the tubing a bit in order to accept it.
https://preview.redd.it/3tu5bpnrr81d1.jpeg?width=2171&format=pjpg&auto=webp&s=06d9c2c80611c571a61f0358b775a991f707efd6
You can buy these but the biggest diameter needs to be bigger than 5mm or it will pass straight through the cable guide. Just search stepped ferrules on ebay
The little metal sleeve that goes on the end of cable housing is called a ferrule. They slot into a cable stop on the frame.
However, your frame appears to use brazed on cable guides that are intended for full length cable housing.
http://davesbikeblog.squarespace.com/blog/2019/5/20/vintage-brake-cable-routing.html
If that’s your bike, you should have a full run of cable housing. No need for the ferrule except at the very end, and even then you might not need them.
But if you do actually have a use for them, your LBS would probably give you a few for free if you don’t need a metric shit ton. If you live near me, I have a bunch you can have for free.
Ferrule, no? Is that also what the metal bit of a pencil is called?
you can pick them up for free at most bike shops
If there’s a bike shop near you, they probably have a bucket of a thousand of these.
Ferrule. As far as I know shifter cable and break cable ferrules comes in different sizes (in diameter). Less than a dollar a piece sold at bike shops.
Op you just don’t want to listen to anyone else do you? As in your post from 5 hours ago you need cable housing all the way through on this bike….
Shoutout to the Zefal HPX frame pump – mine is still going strong after some 25-30 years.
