ApartmentHibachi on

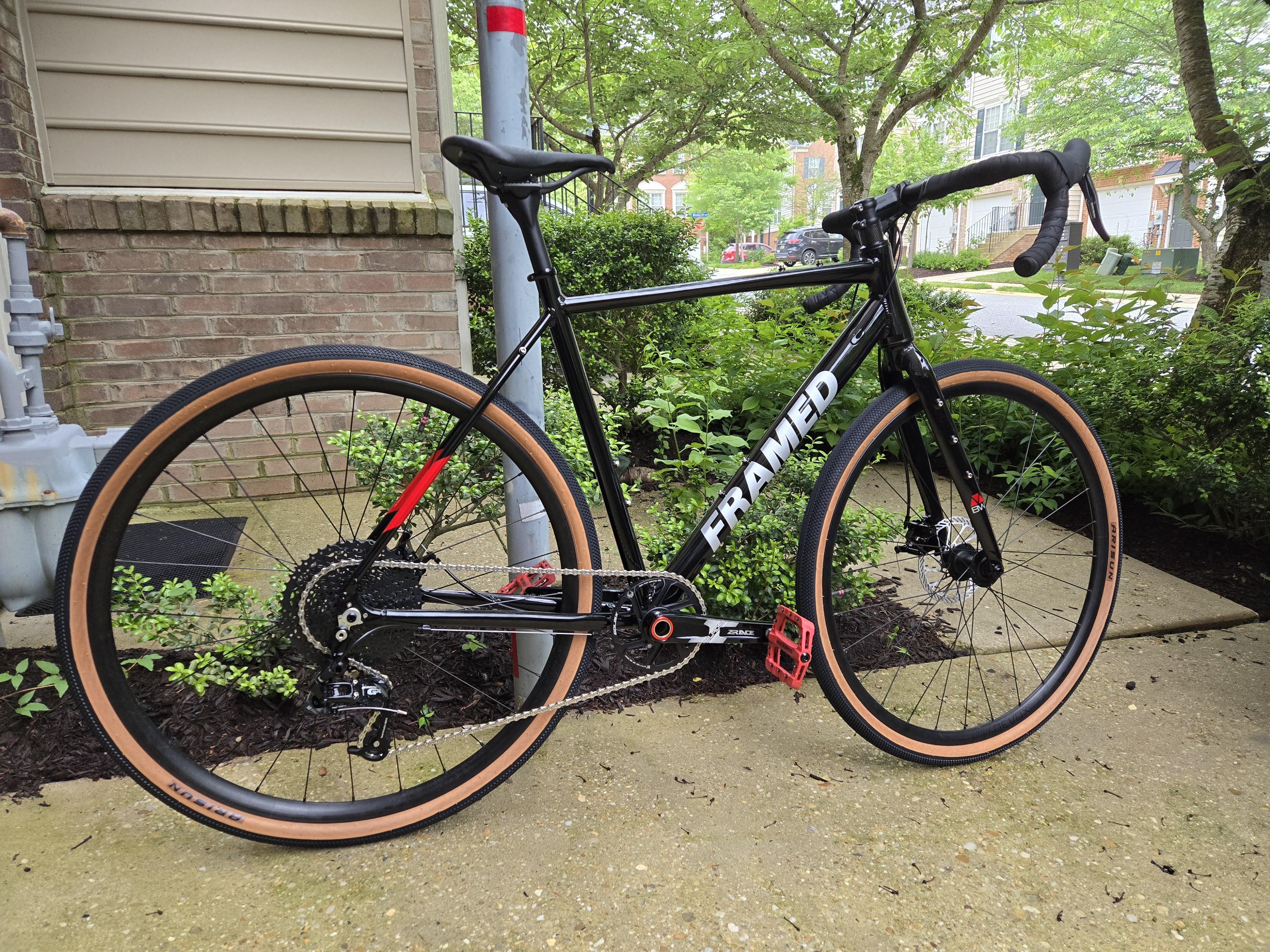

Was looking for a cheap frameset and found Framed was liquidating their stock. Got the frame/fork for $250. All in was $900 to finish. I wanted to post here to provide information for anyone else looking to build one of these frames as there is not much information online.
1×10 setup with Sram Rival brifters and GX 2.1 rear mech
Build notes: The thru axles that were supplied with the frameset are garbage. I went with Kiber axles off amazon (120mm front/162mm rear) and they work nicely. The shifter/mech setup requires the addition of a barrel adjuster. I used a Jagwire Rocket adjuster and placed it at the rear mech. For the rear disc brake, I needed to add two washers in addition to the 160mm flat mount adapter to get clearance for the rotor. This might not be a frame issue and could be a combination of rotor/calipers I’m using. Overall happy with how it turned out.
2 Comments
**Thanks for posting to /r/gravelcycling! It looks like you’ve submitted an image.**
This community encourages additional context about image submissions. You can include details about your post in a comment below. Some suggestions for good comments:
* Bike details (make, model, accessories, and gear)
* Location (specific or general is fine)
You can also use **post flair** to give additional context about your post.
*I am a bot, and this action was performed automatically. Please [contact the moderators of this subreddit](/message/compose/?to=/r/gravelcycling) if you have any questions or concerns.*
Was looking for a cheap frameset and found Framed was liquidating their stock. Got the frame/fork for $250. All in was $900 to finish. I wanted to post here to provide information for anyone else looking to build one of these frames as there is not much information online.
1×10 setup with Sram Rival brifters and GX 2.1 rear mech
Zrace aluminum crankset w/ steel axle, 38t chainring
Sunshine 11-46t cassette, KMC chain
Felt Devox aluminum thru axle wheelset
Ztto mechanical pull hydraulic brake calipers, 160mm rotors
Elite One carbon seat and seatpost
Arisun 700x40c 60 TPI gravel tires w/ TPU inner tubes
UNO aluminum gravel bars
Toseek aluminum stem
Rockbros nylon pedals
Total weight: 10kg
Build notes: The thru axles that were supplied with the frameset are garbage. I went with Kiber axles off amazon (120mm front/162mm rear) and they work nicely. The shifter/mech setup requires the addition of a barrel adjuster. I used a Jagwire Rocket adjuster and placed it at the rear mech. For the rear disc brake, I needed to add two washers in addition to the 160mm flat mount adapter to get clearance for the rotor. This might not be a frame issue and could be a combination of rotor/calipers I’m using. Overall happy with how it turned out.
