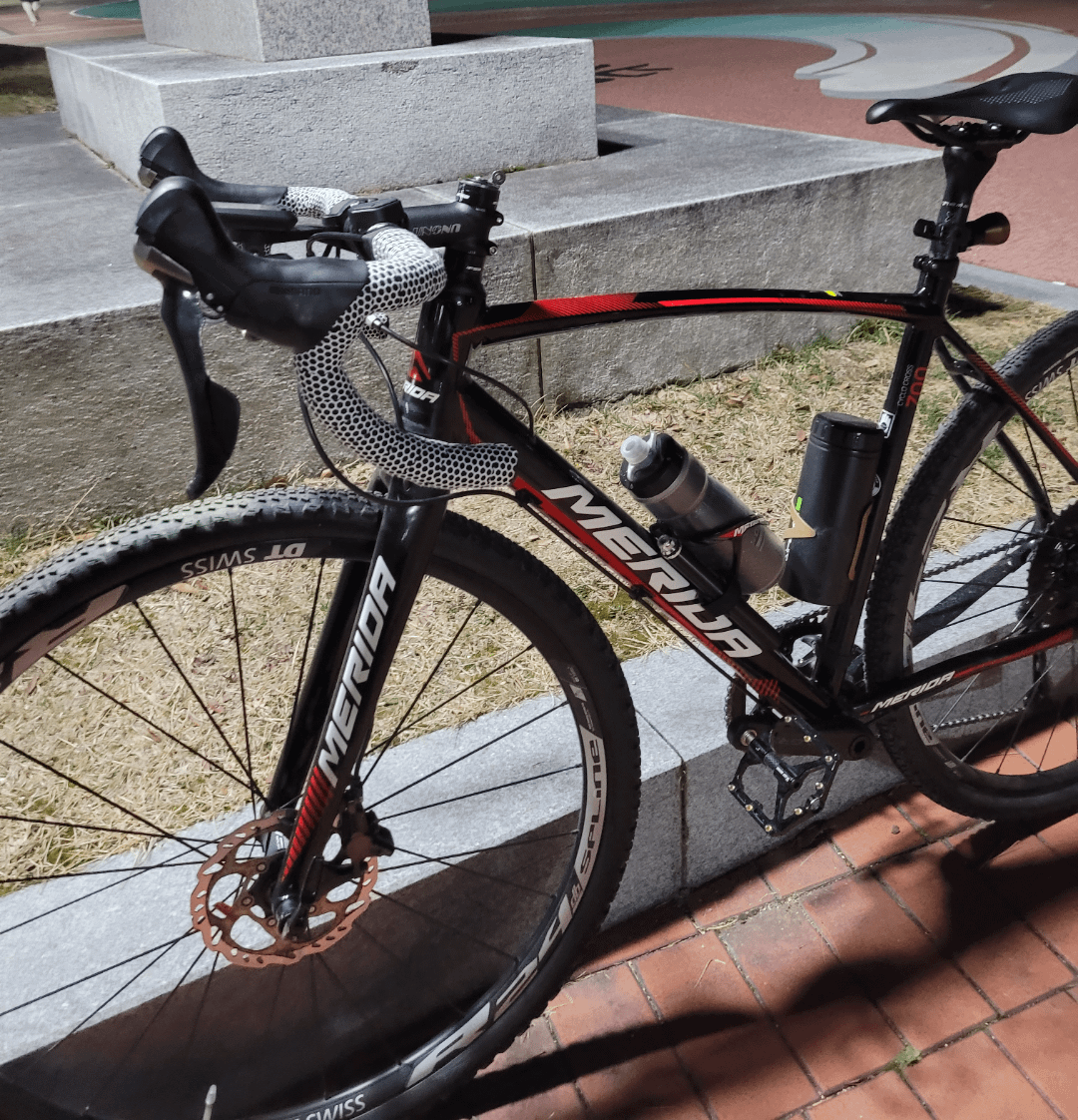

Hi guys. I’m planning to buy magene p505 power meter crank but i’m not sure it would work on my bike. I’m using 1x system with stone single chainring that is grx compatible and my local dealer said magene p505 is not compatible with 1x chainring, but why?? They are all shimano 110bcd and i think there’s no reason they do not work. Has anyone tried this?
by Ok_Pen8361
2 Comments
**Thanks for posting to /r/gravelcycling! It looks like you’ve submitted an image.**
This community encourages additional context about image submissions. You can include details about your post in a comment below. Some suggestions for good comments:
* Bike details (make, model, accessories, and gear)
* Location (specific or general is fine)
You can also use **post flair** to give additional context about your post.
*I am a bot, and this action was performed automatically. Please [contact the moderators of this subreddit](/message/compose/?to=/r/gravelcycling) if you have any questions or concerns.*
After looking at it, 1x should be fine, just not with your GRX-compatible chainring. GRX rings mount behind the spider, whereas 1x road rings mount in front of it. So if you put a GRX ring on a road crank like the Magene, the ring would be set in too close to the frame. You’ll just need to get a 1x chainring made for Shimano road cranks.
