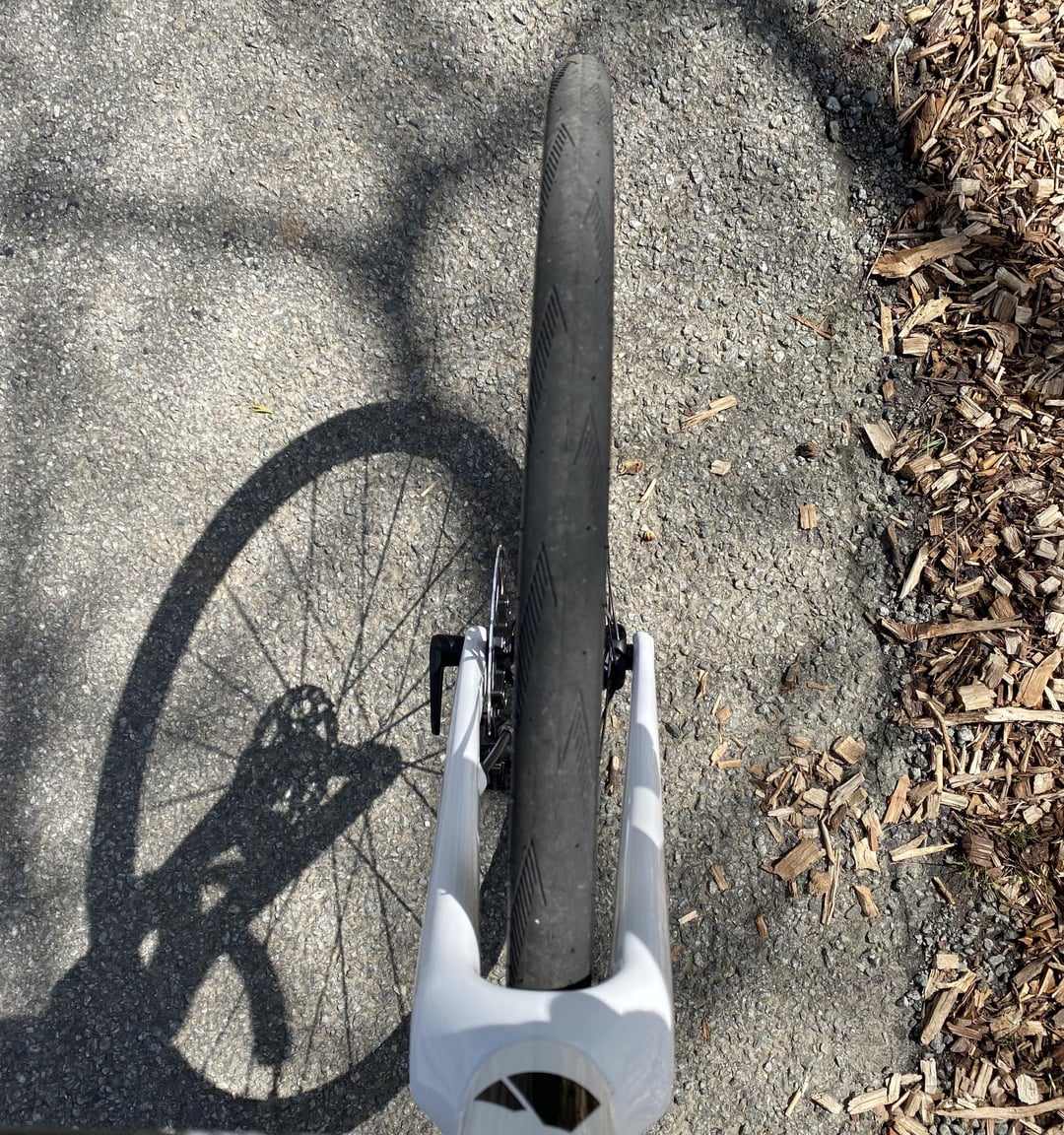

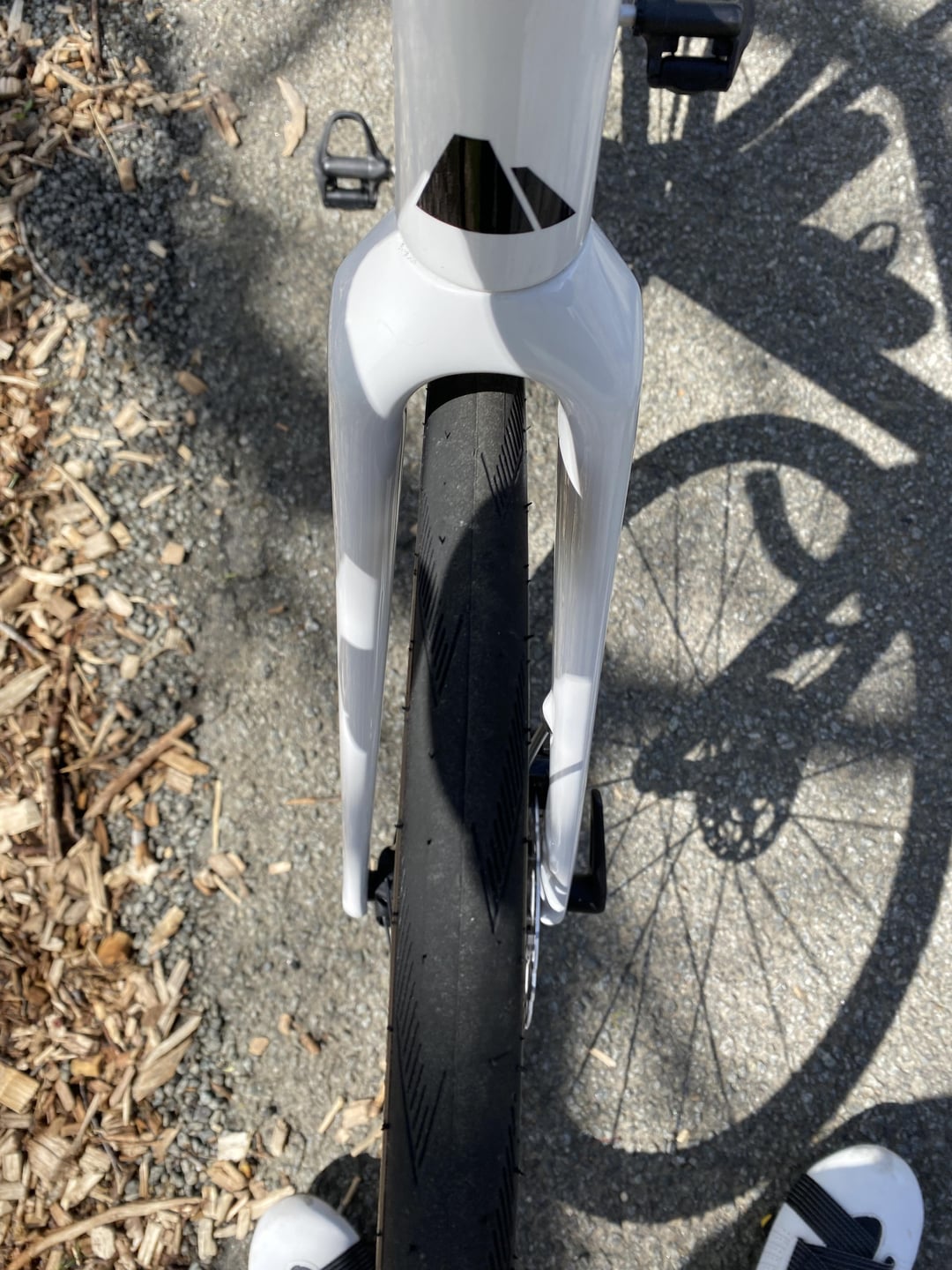

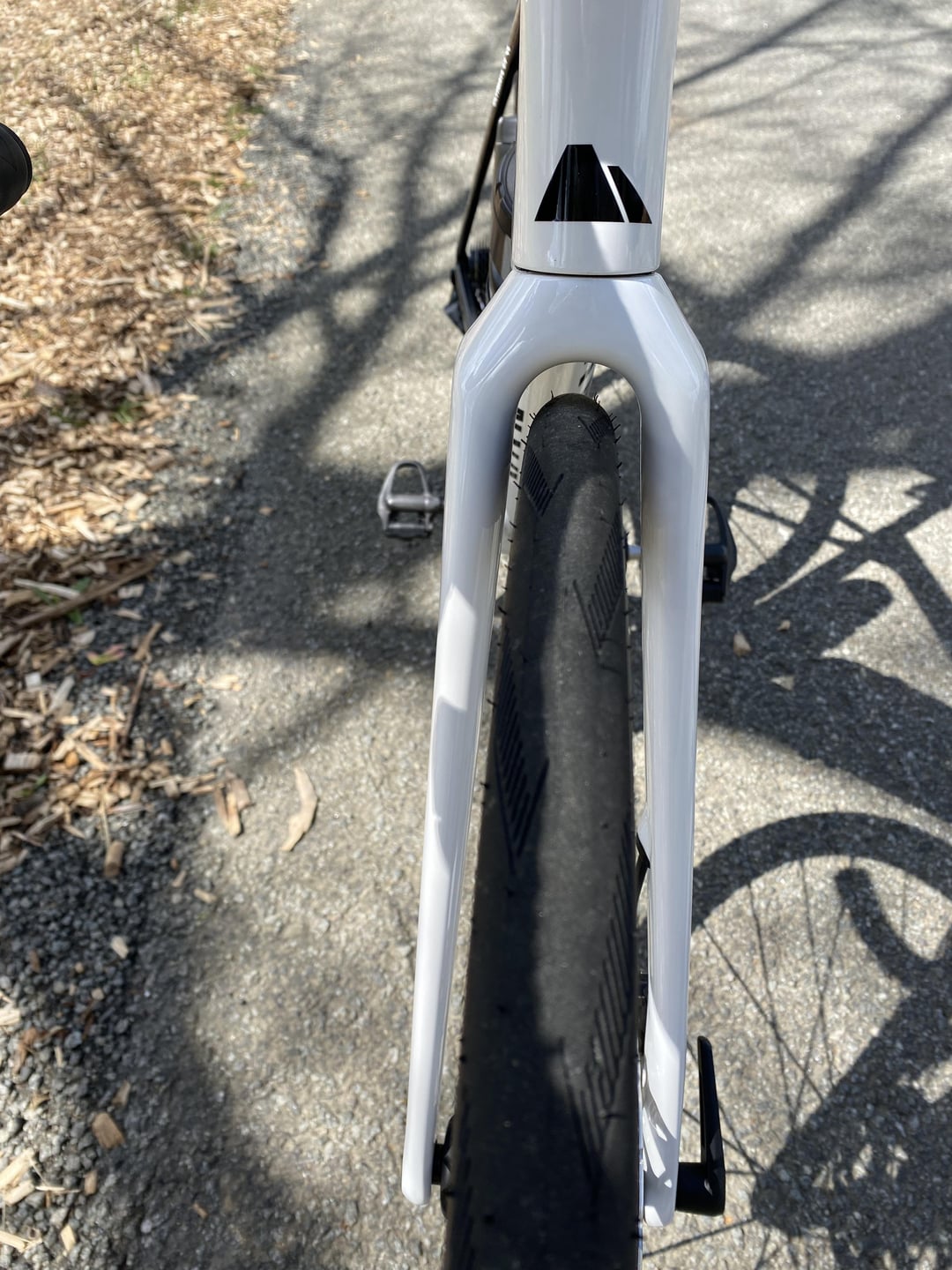

Am I crazy, or is the front wheel a bit askew? Looks like it has a bias to the non brake side. I’ve taken it on and off multiple times and it keeps fitting the same way. It’s not giving me any mechanic issues, but I’m wondering if this is normal? This on an Ultimate CF 7.
by southern_wasp
6 Comments
it supposed to be, enjoy your ride mate.
Put it in the wrong way (ignore the disc being on the wrong side temporarily)
Is it the same? Its the fork, contact Canyon
Is the tire closer to the side? Its the wheel, loosen all the non disc side spokes a quarter turn, tighten all the disc side spokes a quarter turn
Ha! I never noticed that before. My current bike is rim brake but I’ll watch for that at the LBS.
It’s not dished perfectly. If these were high-end I’d demand they be perfect as it will definitely affect your maximum tire size clearance.
The dropouts for the thru axles are not perfect, causing the wheel to sit off center. Bad tolerance from Canyon. I have the same issue. I confirmed the wheel is true with that park wheel alignment gauge.
When installing the front wheel try to push it up towards the handlebar while tightening the thru axle. It helped. Here’s what mine looked like without doing that.
https://preview.redd.it/d71nnkpvm5uc1.jpeg?width=1222&format=pjpg&auto=webp&s=2359e1759a356f6774dea8fa9feb4d468aa17da9
https://preview.redd.it/tec1y6h3p5uc1.png?width=3024&format=png&auto=webp&s=8f9e37ee23b1991f2d720f9ed05d3f86e485bf17
Ideal on my Grizl
