“Alenka”. Custom track fork.

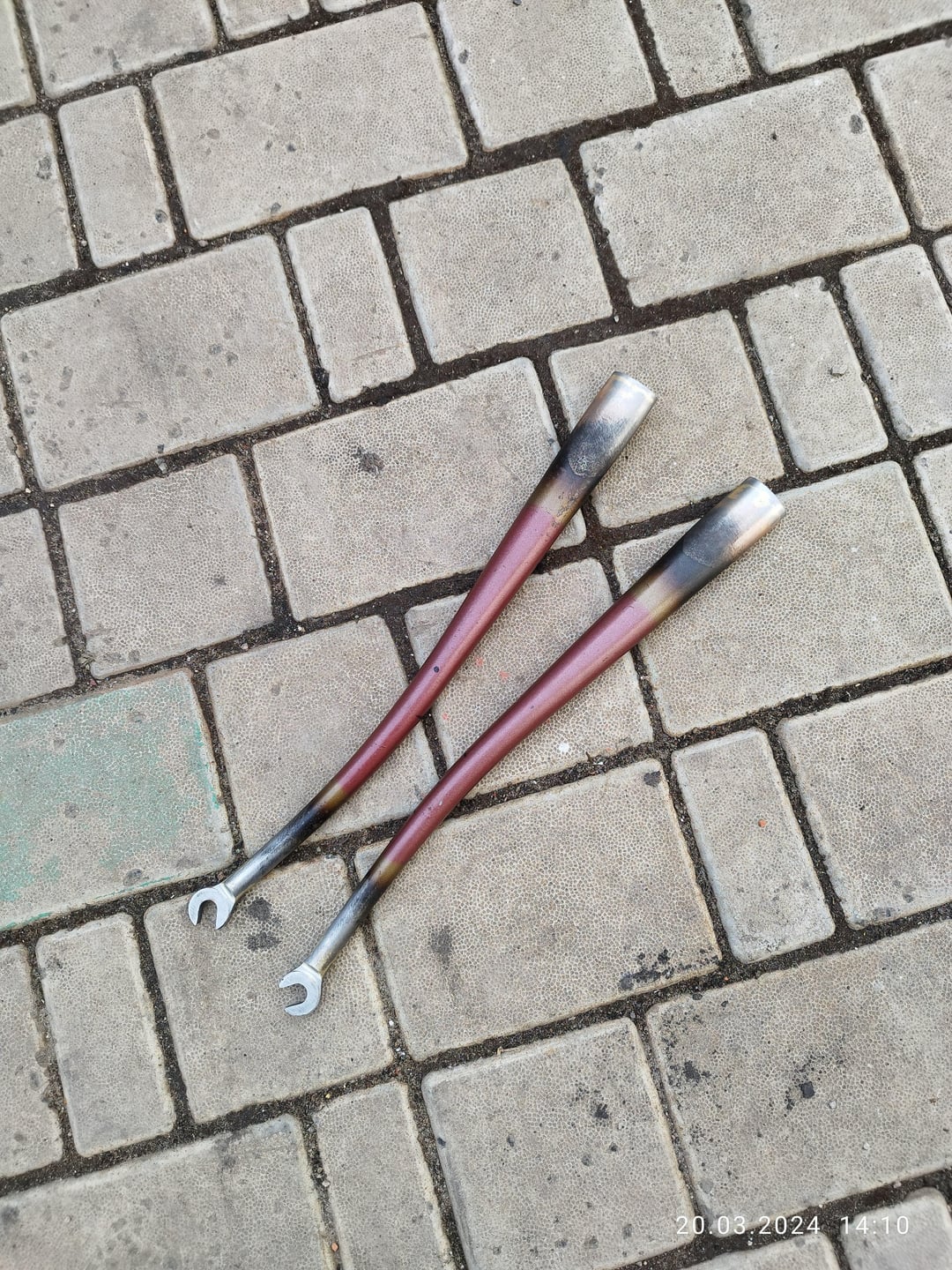

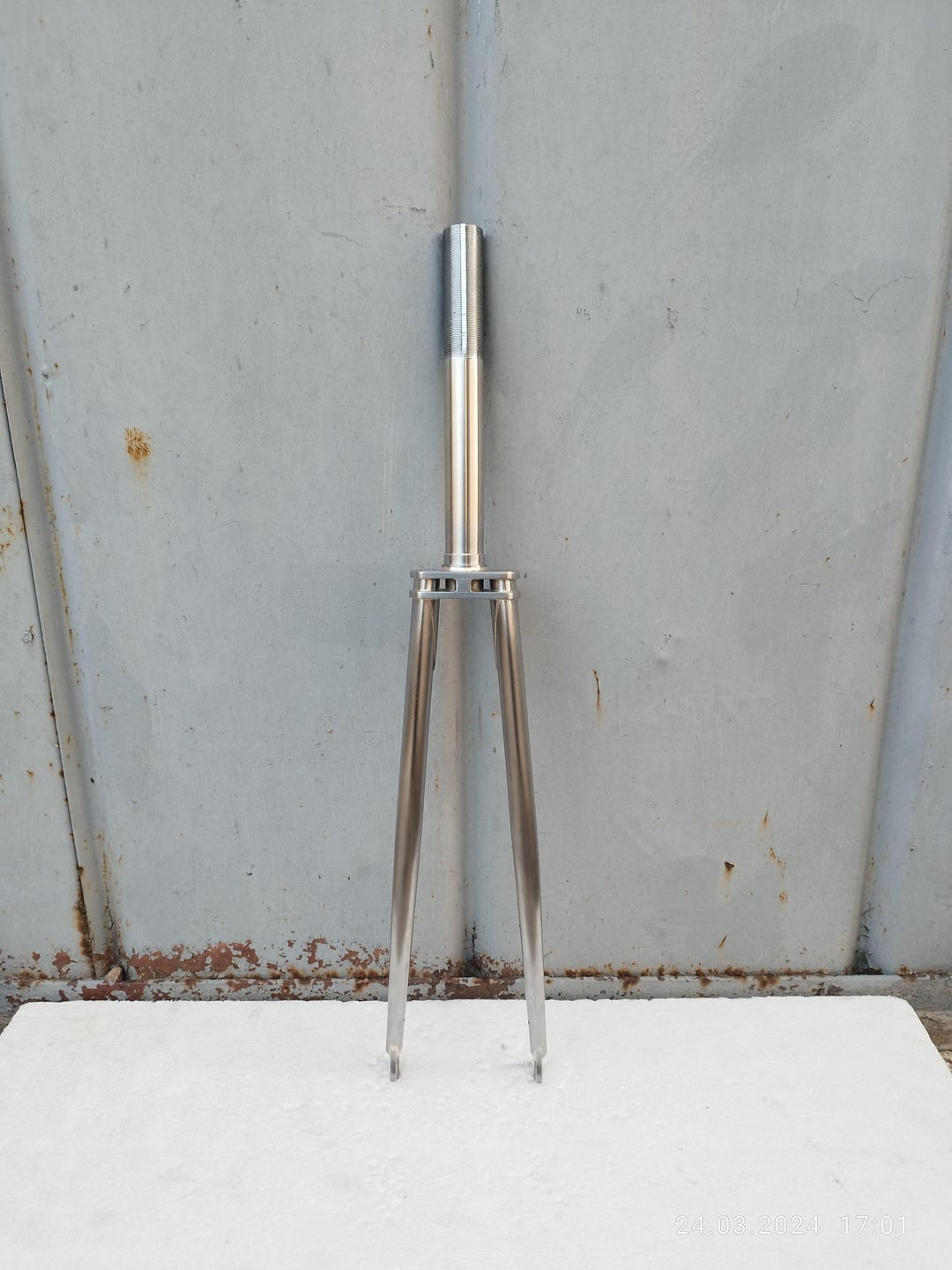

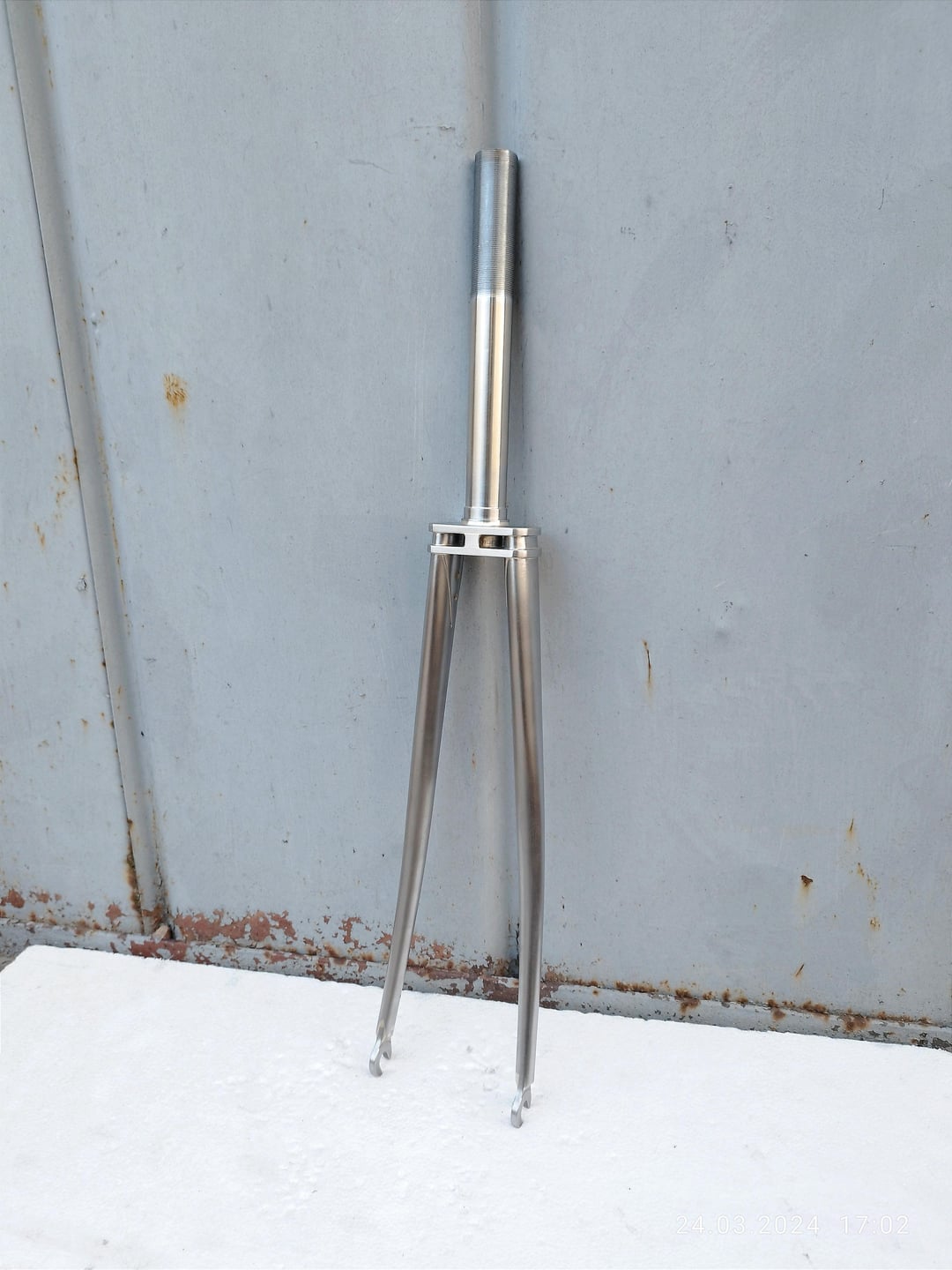

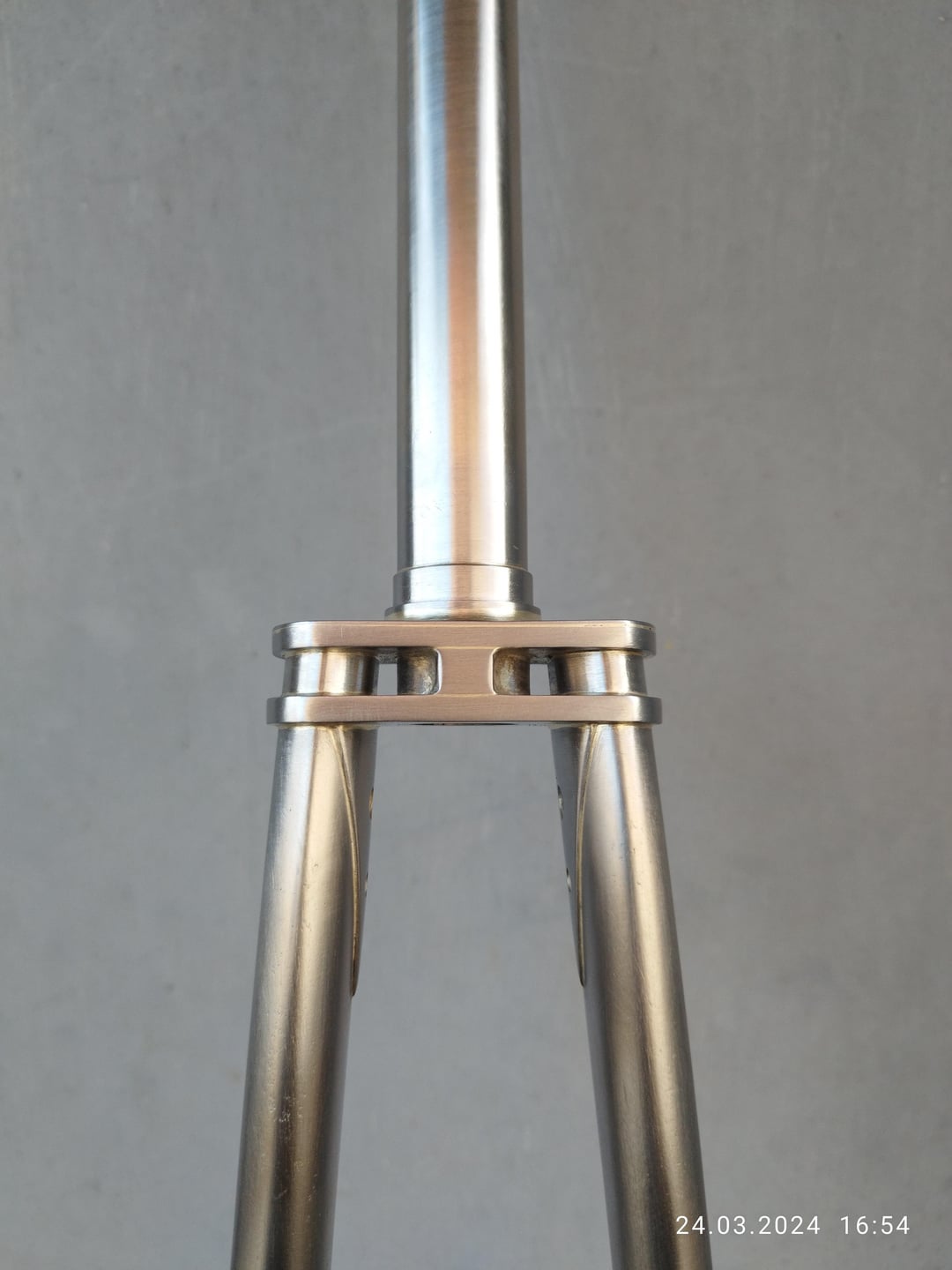

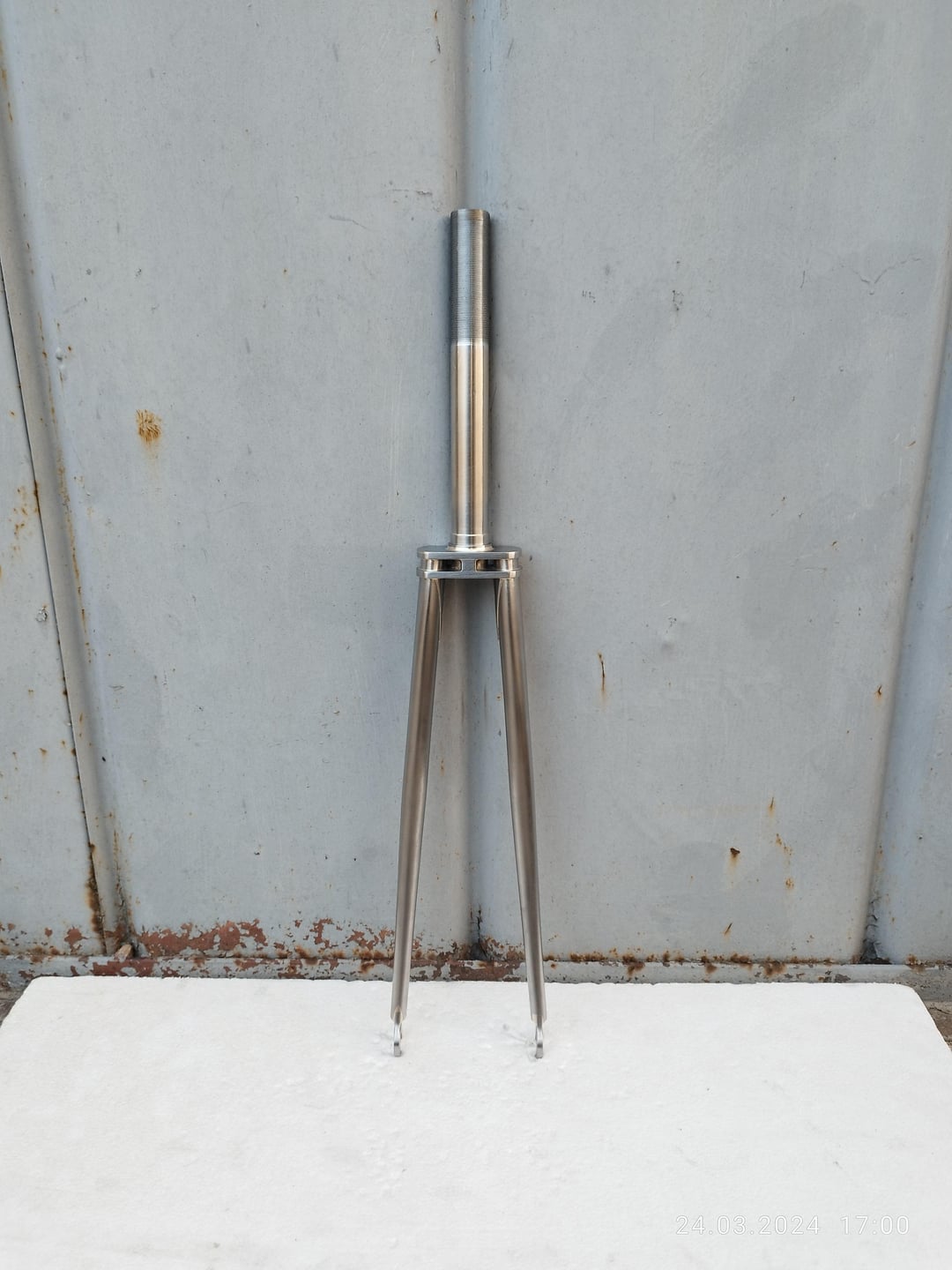

From the new fork from the Старт-Шоссе, or rather, only its blades and dropouts, I made such a two-crown fork.

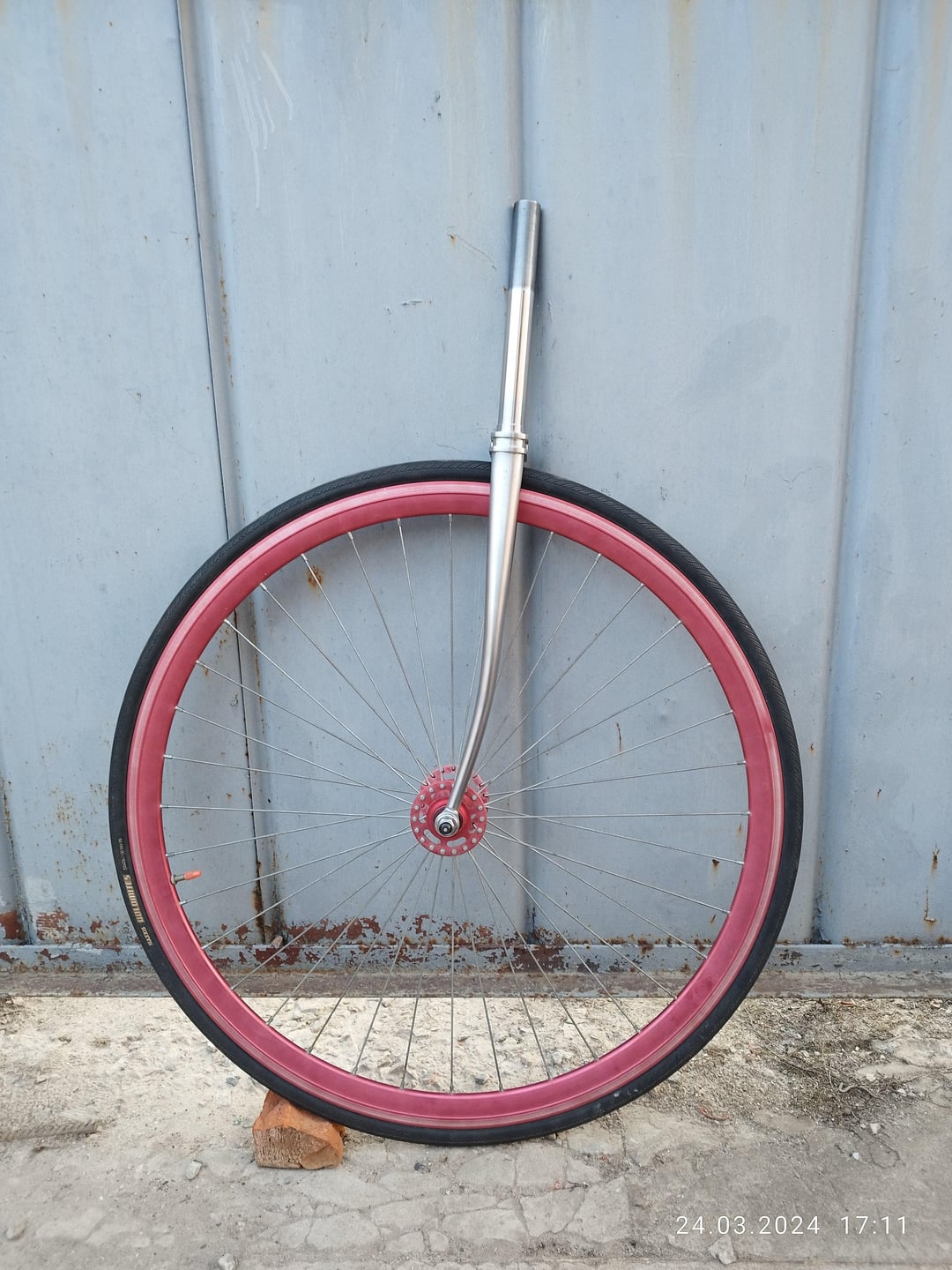

Wheel-700 c
Steerer-1″, long 208 mm, thread length 80 mm
Rake-28 mm

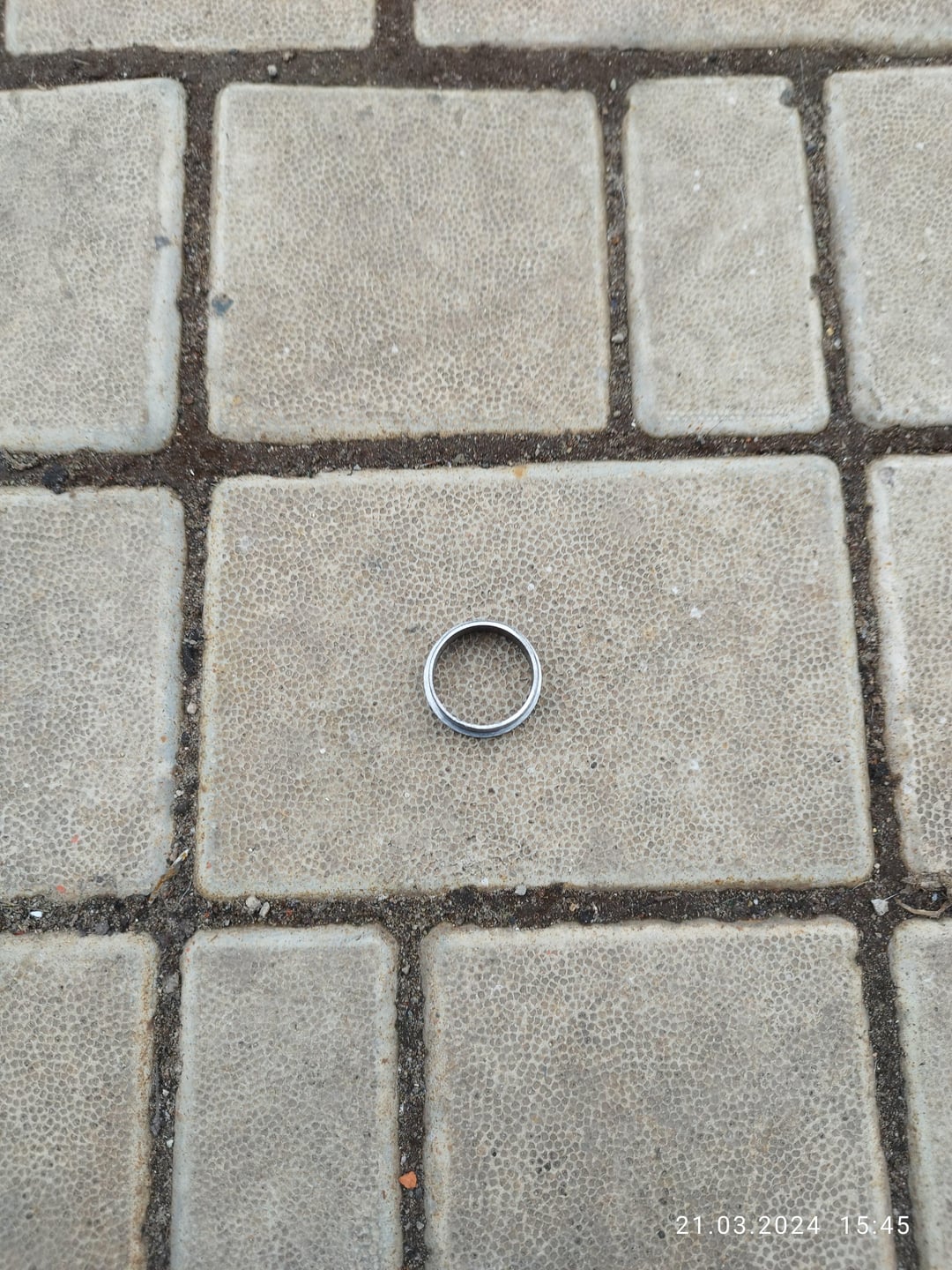

Crown race-27.0

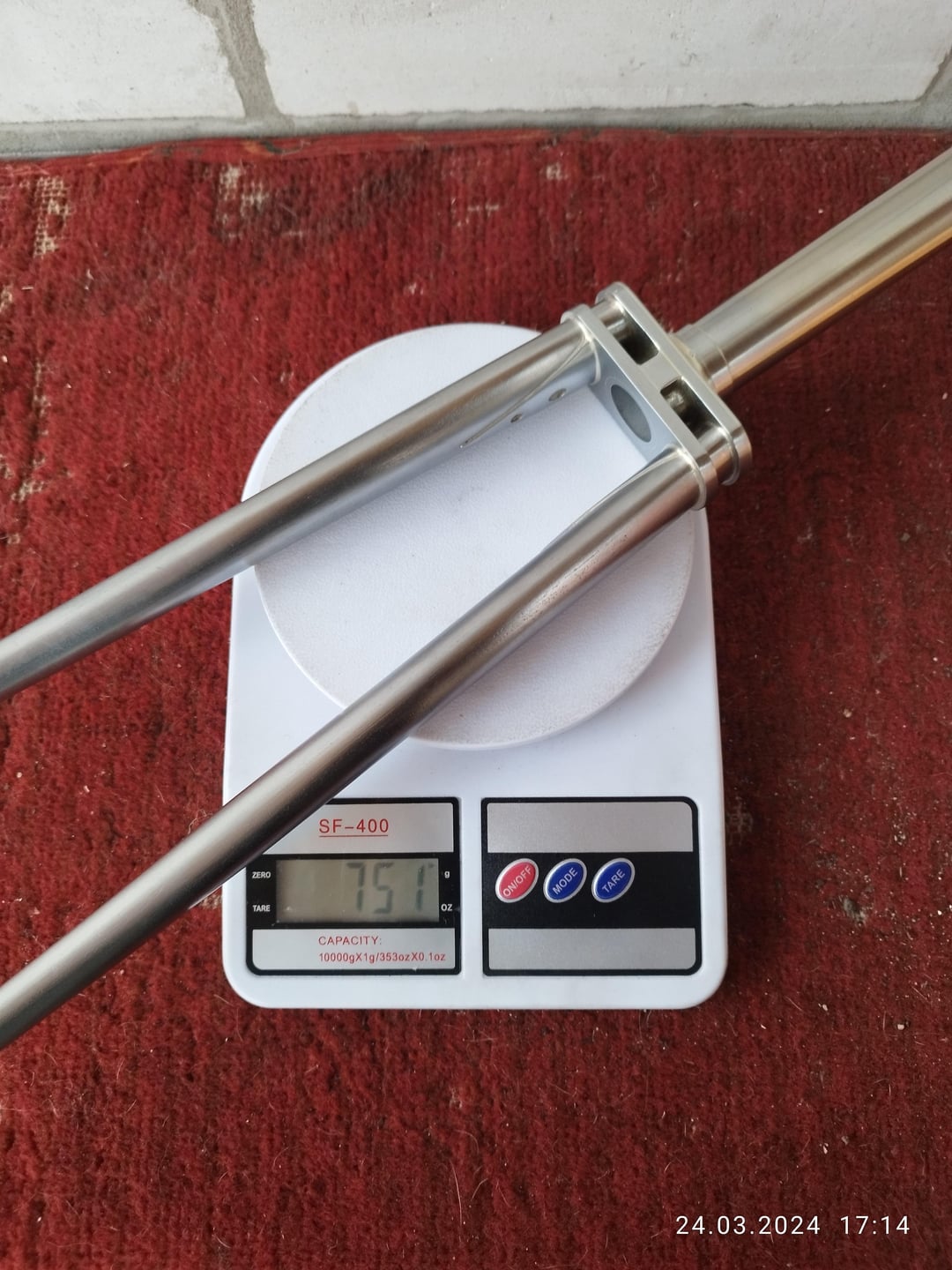

Weight-751 grams

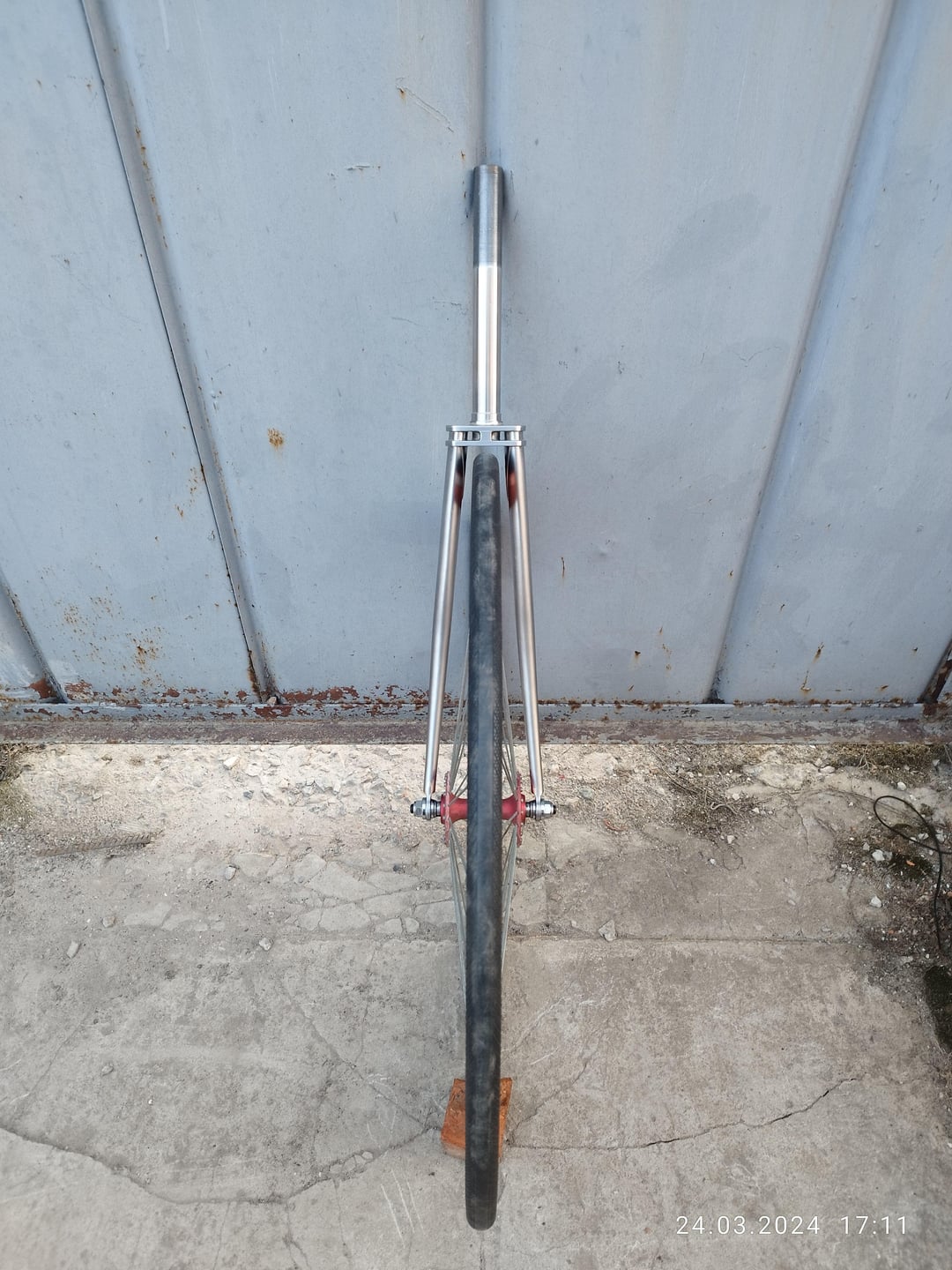

Max tire-25 mm

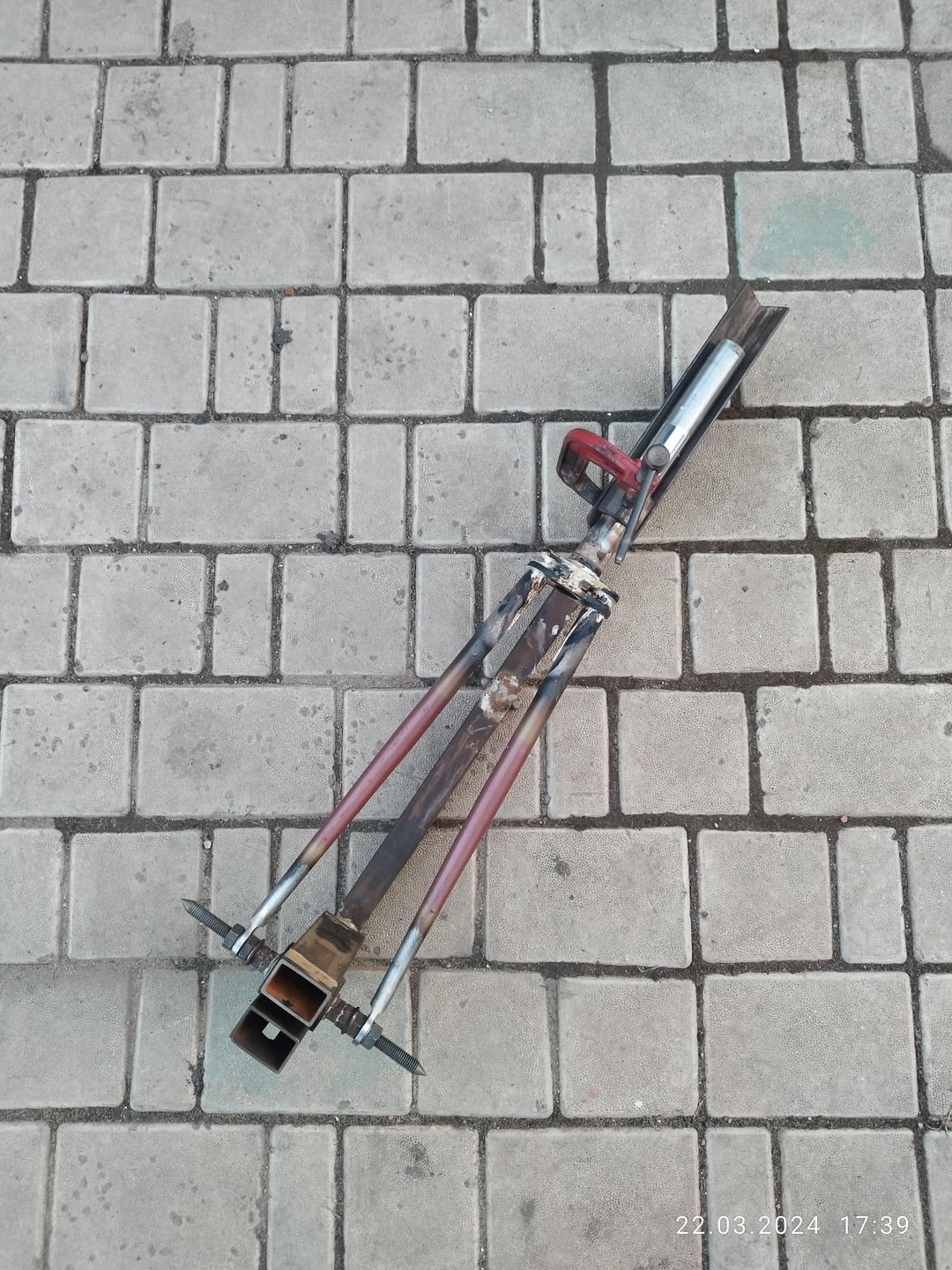

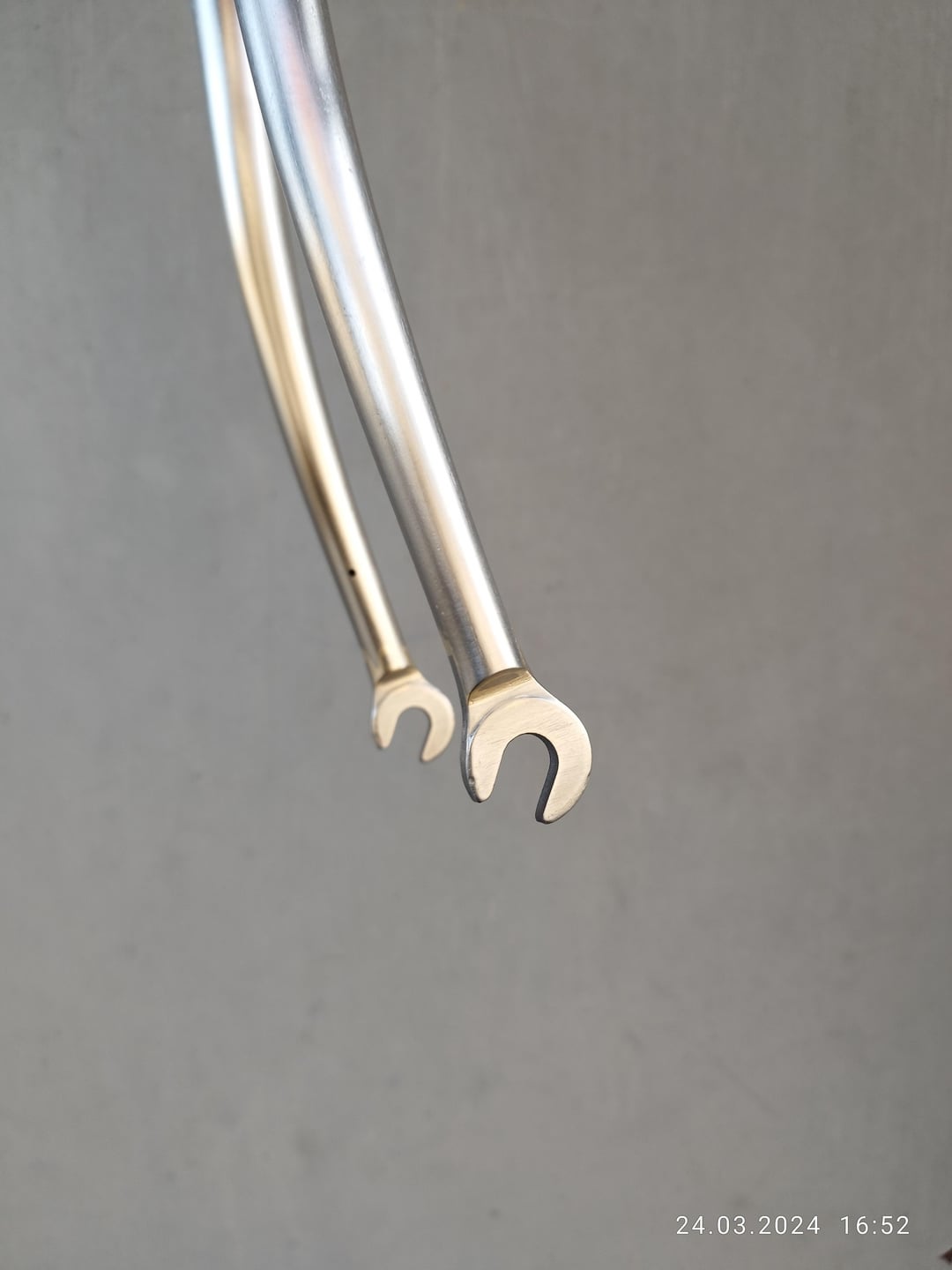

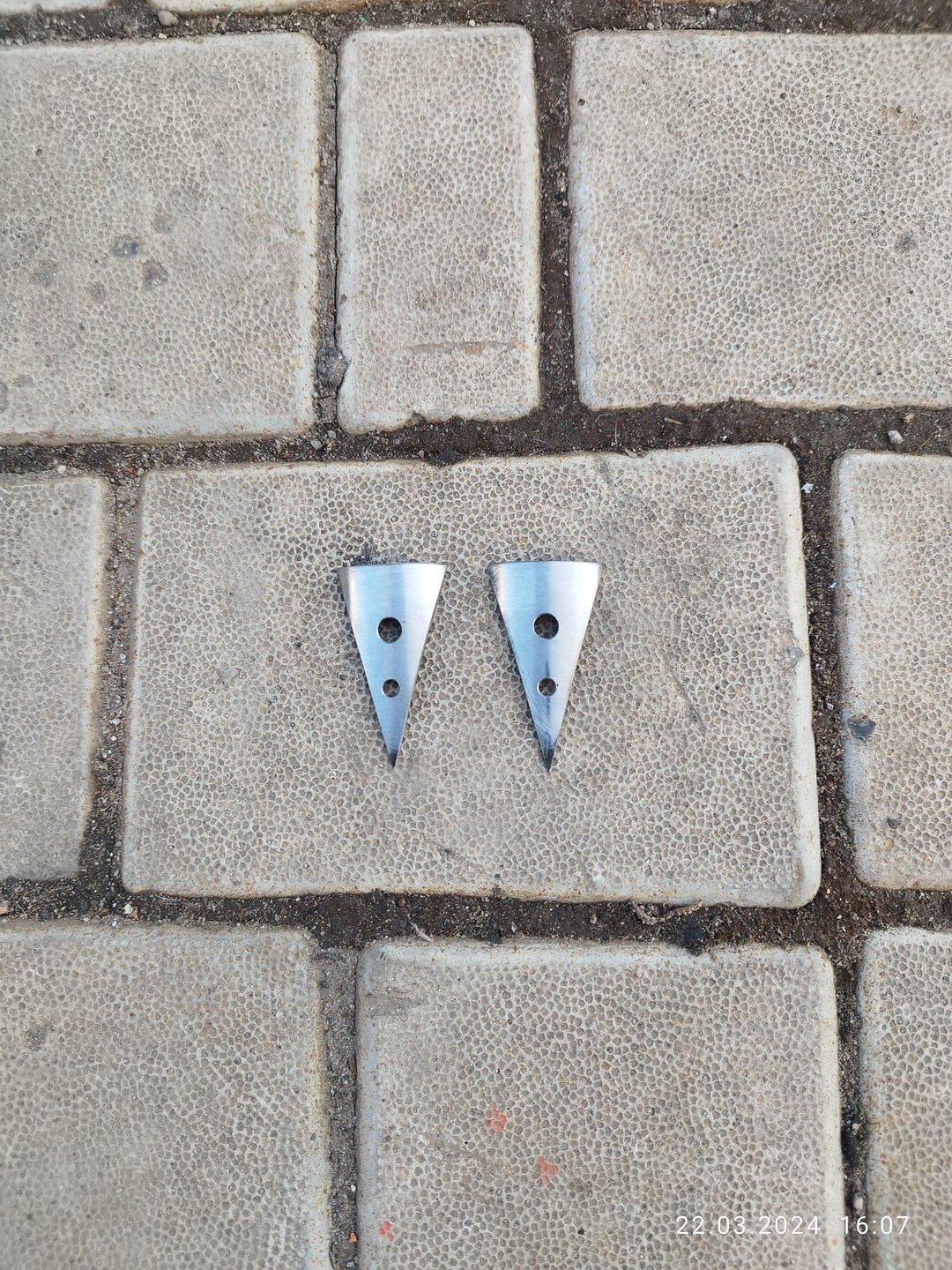

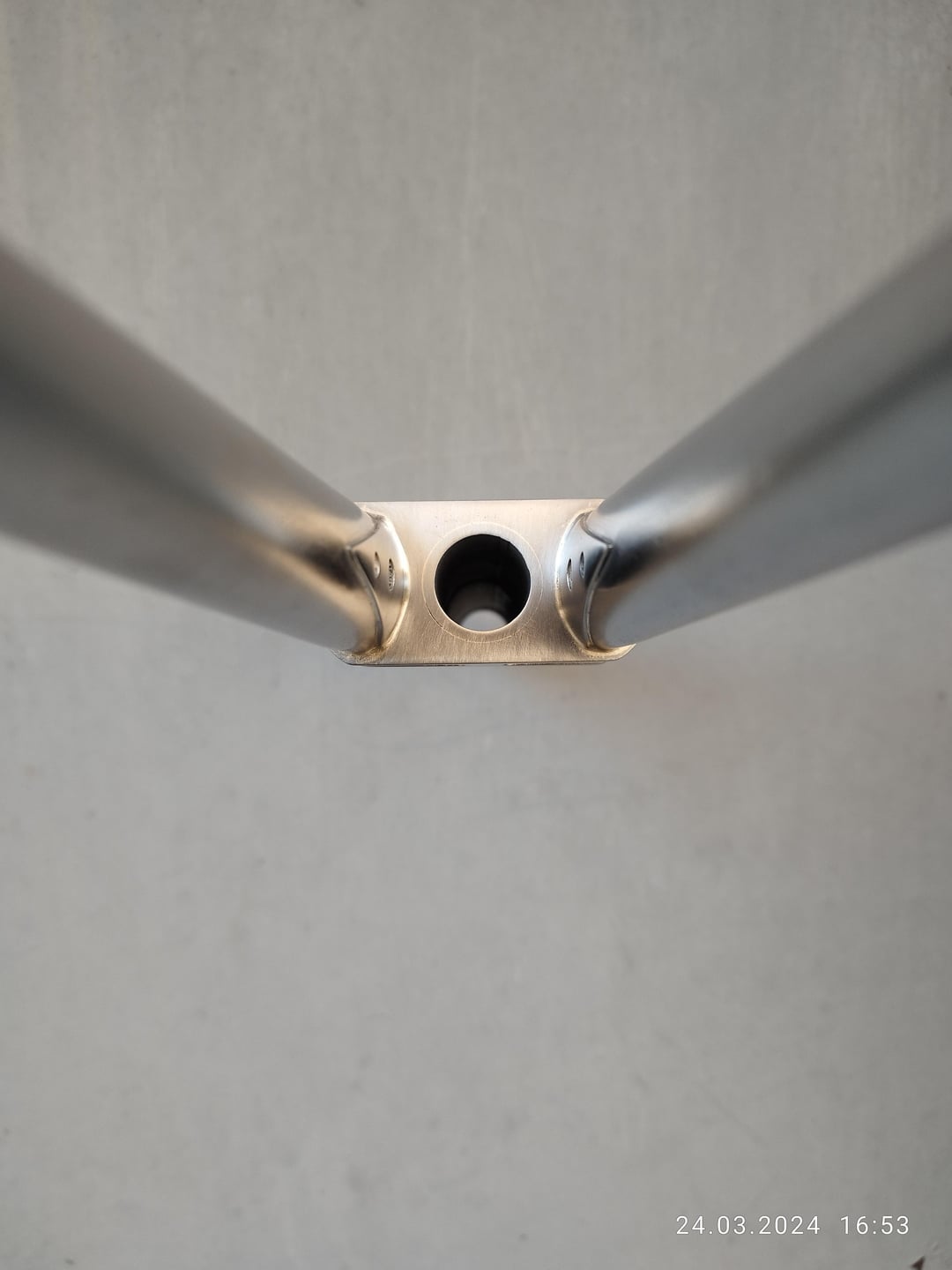

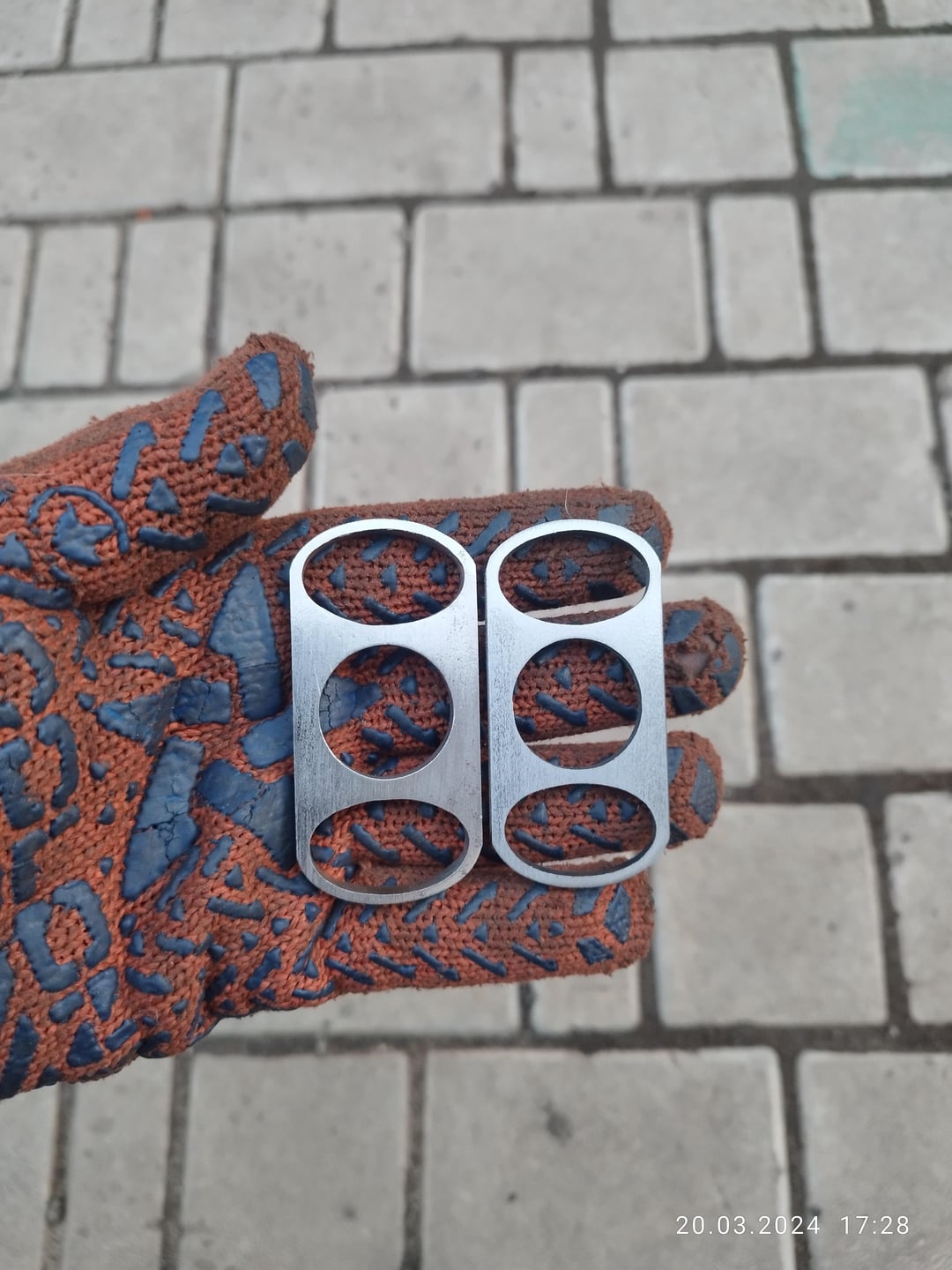

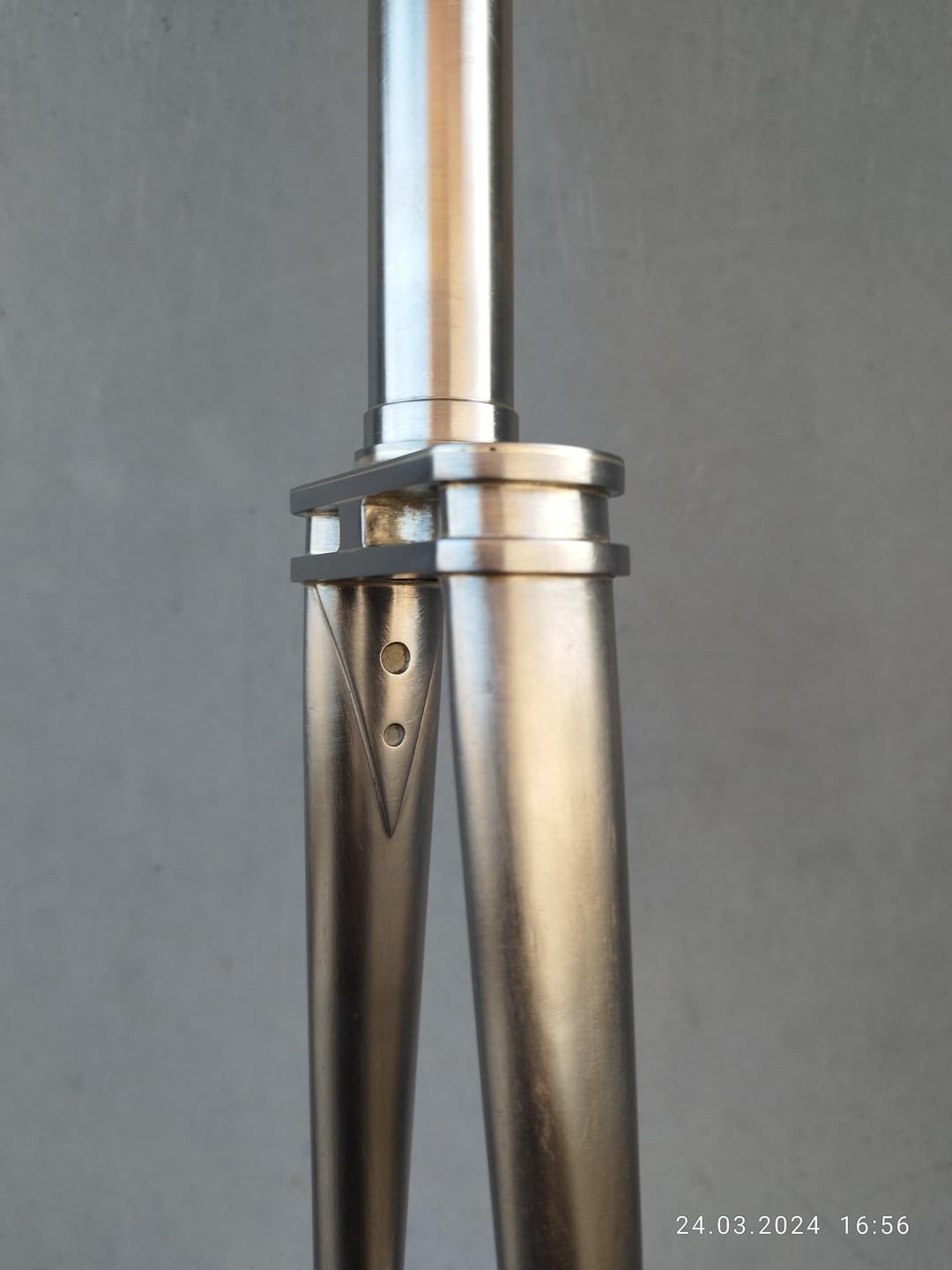

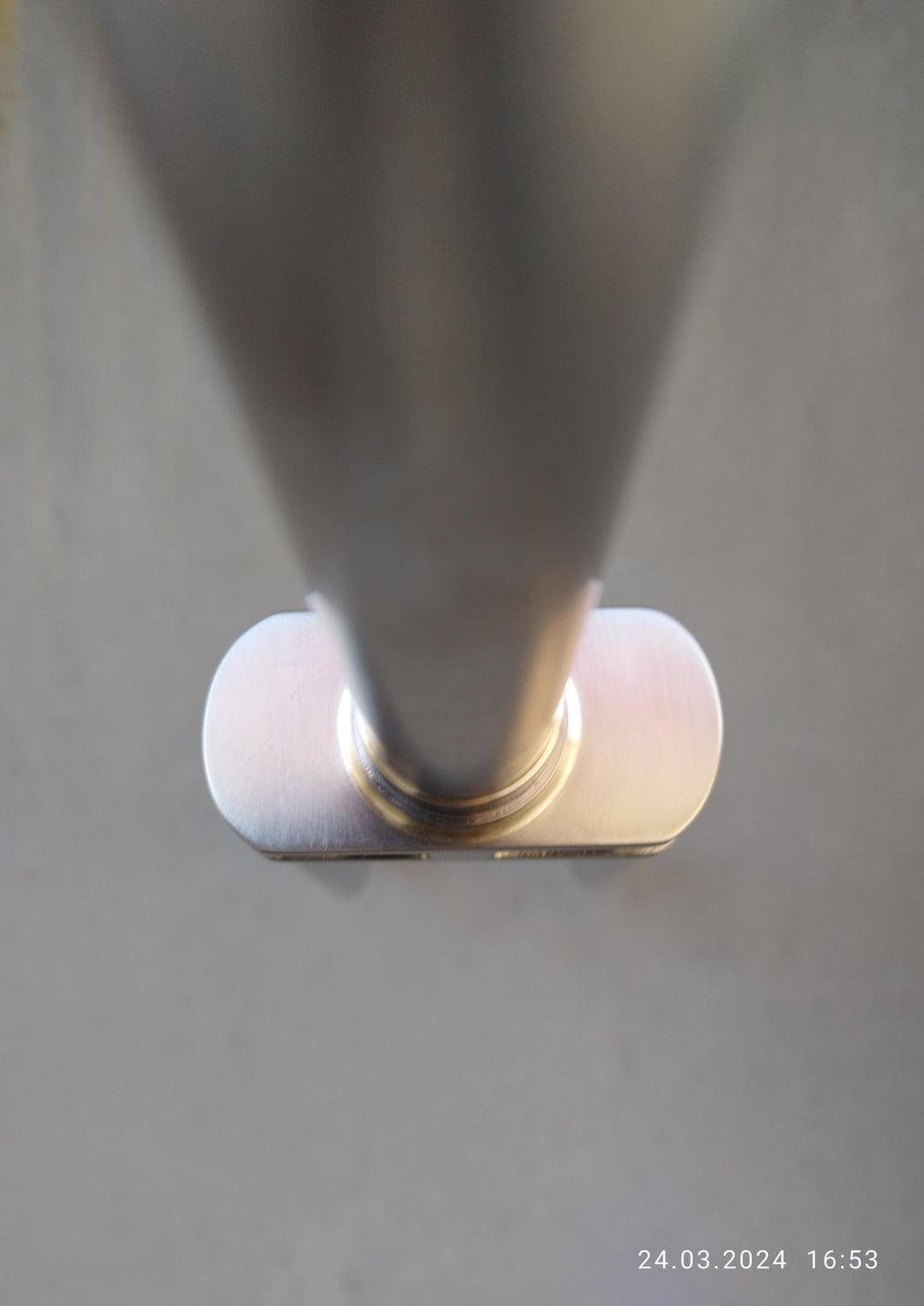

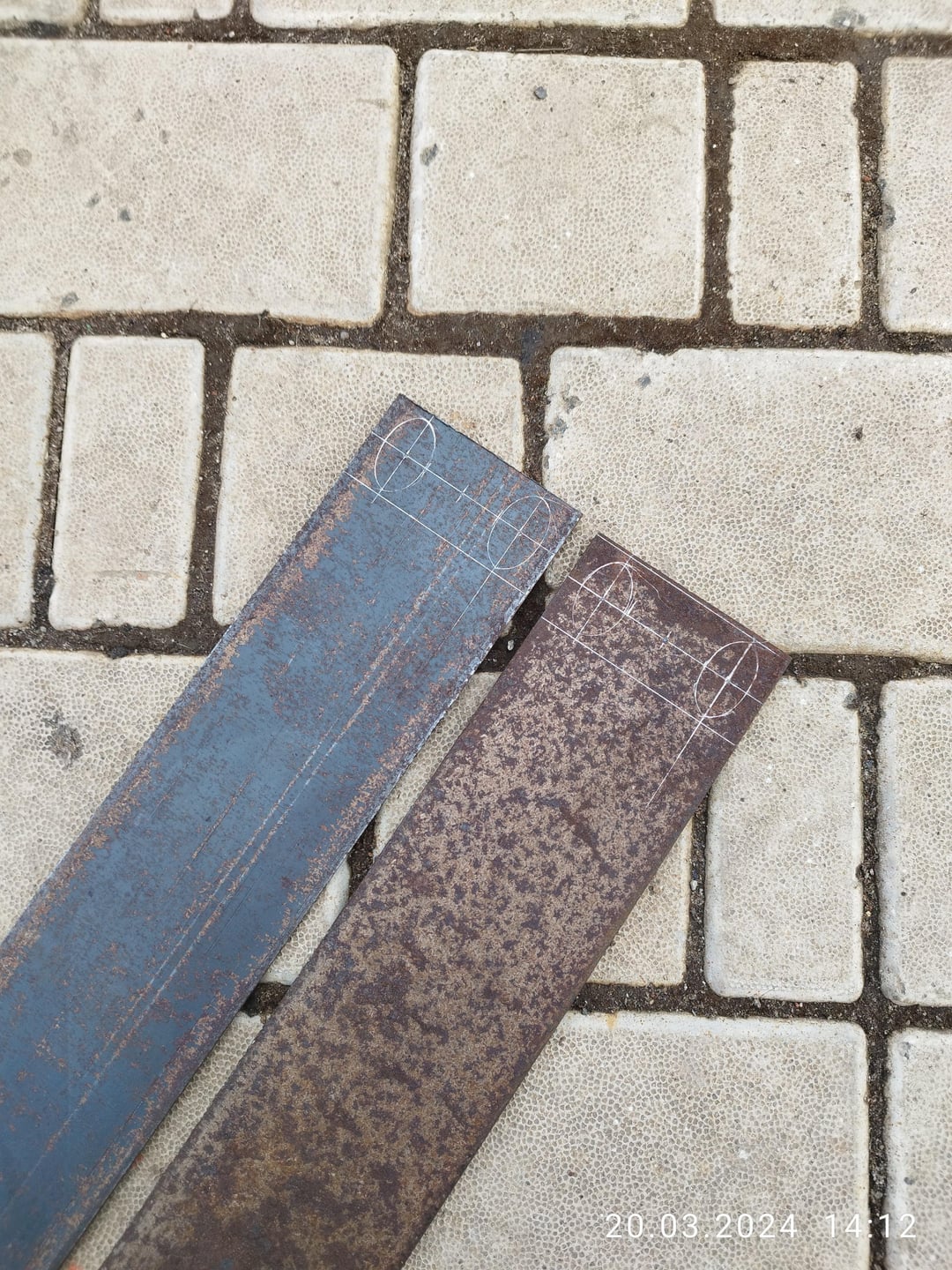

As a result of the work, the rake of the blades was reduced, the dropouts were rebrazed, a new crown and reinforcing linings were made, and a new inch steerer was brazed in.

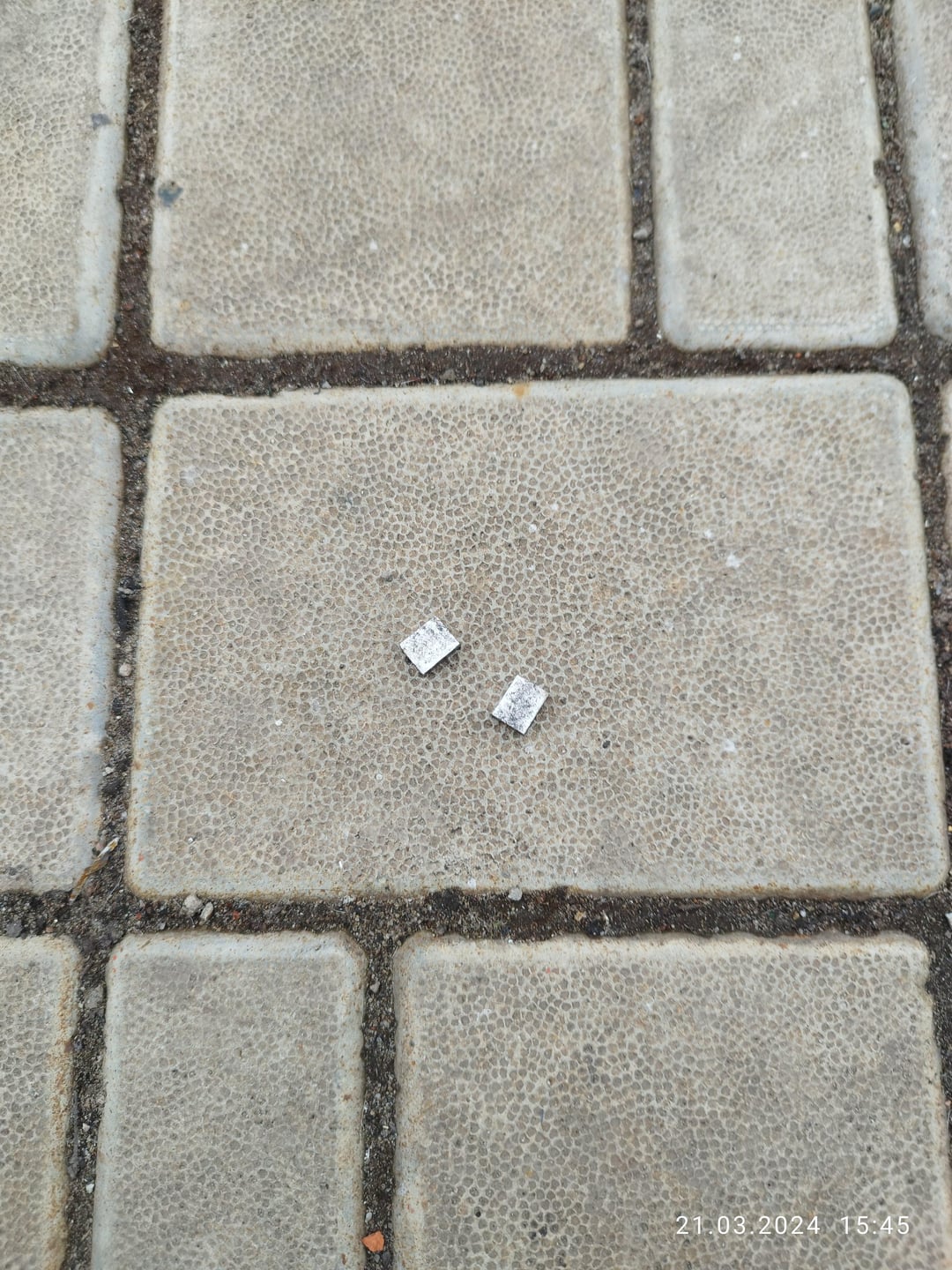

Everything was brazed with 40% silver.

by atepernetuzh_
