Facebook Twitter LinkedIn Pinterest Bluesky Threads Why does this look wrong to me? by MrGaminDuck Bicycling Bike Bike Repair Biking Cycling Repair

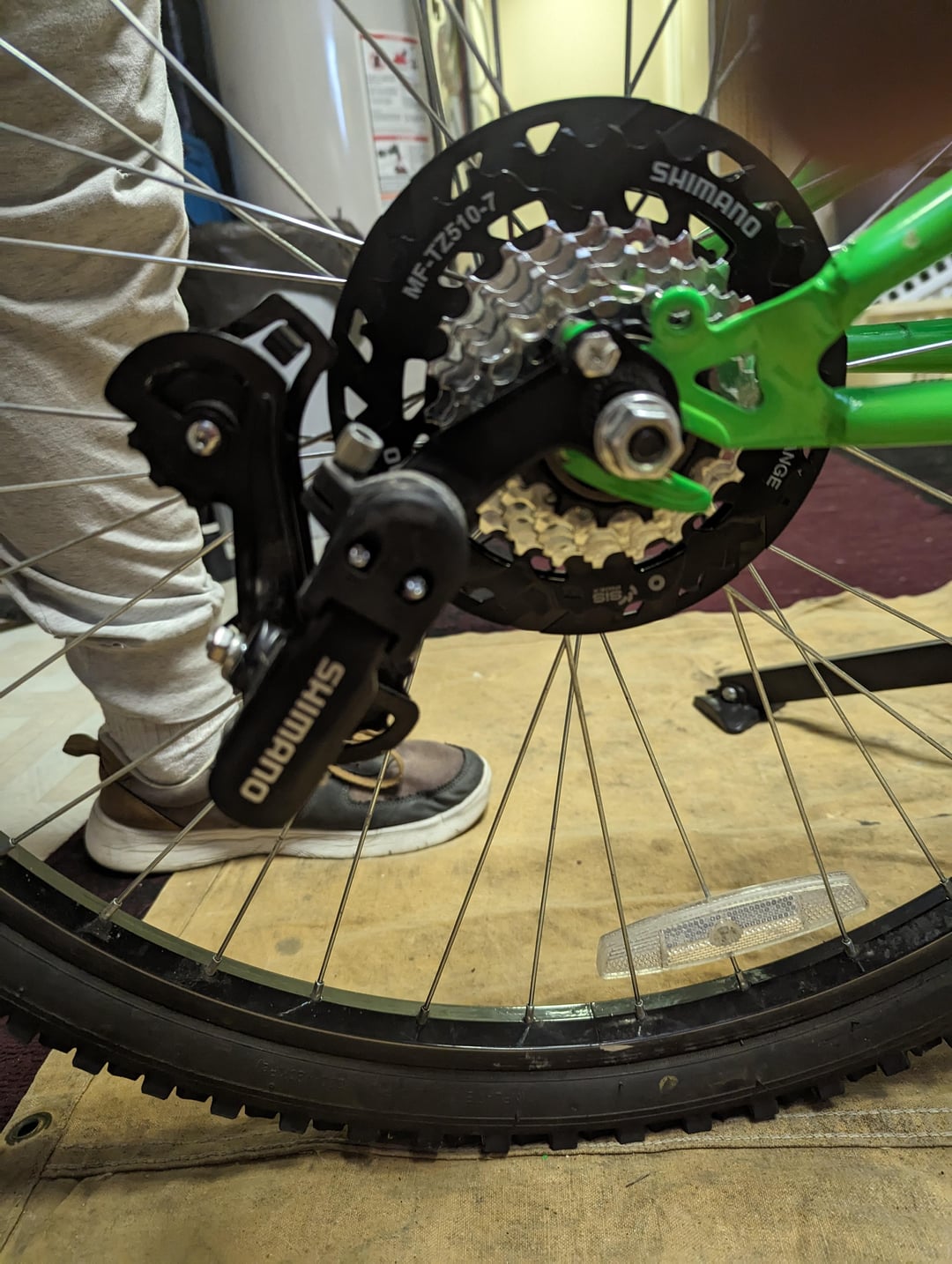

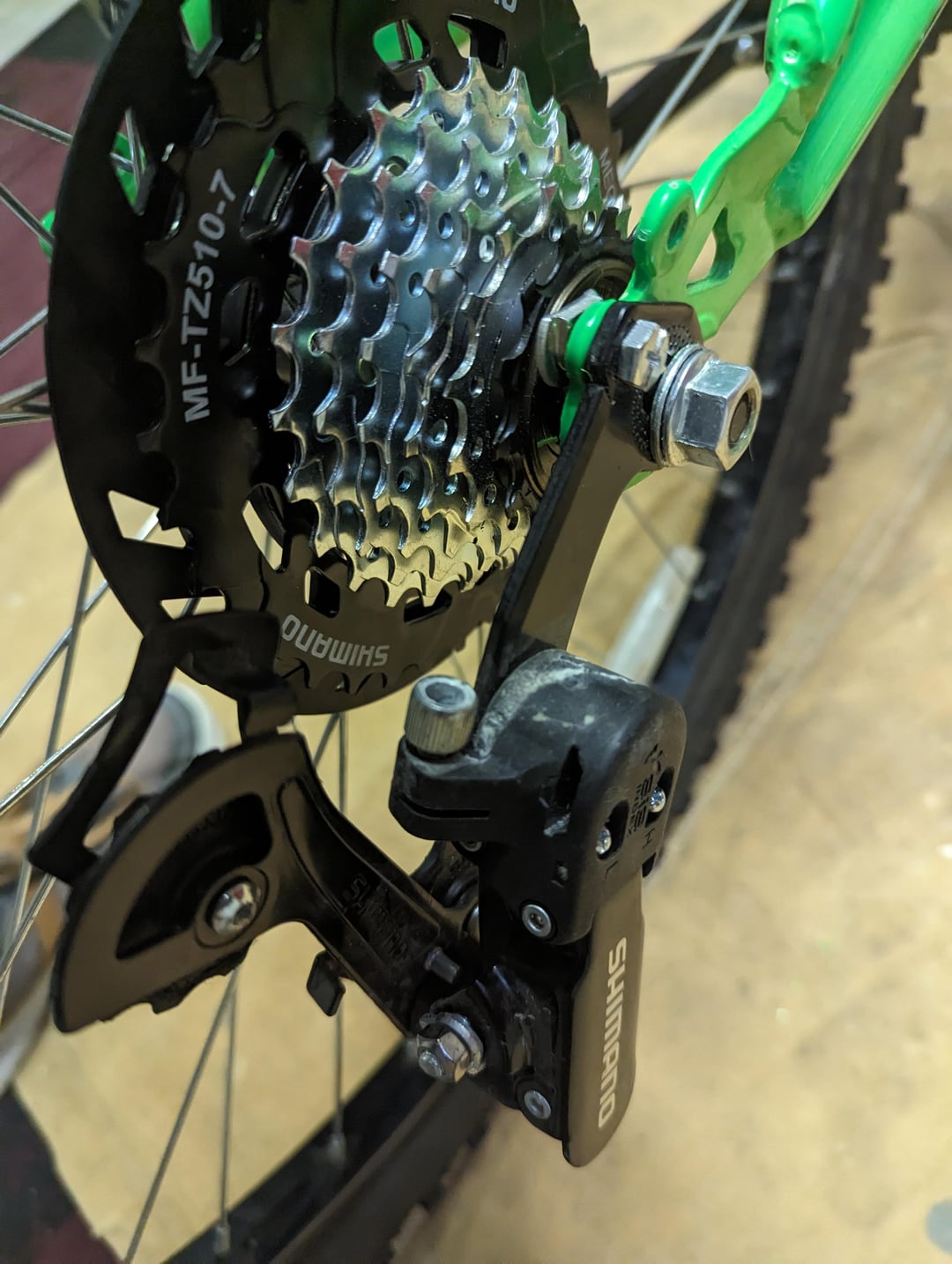

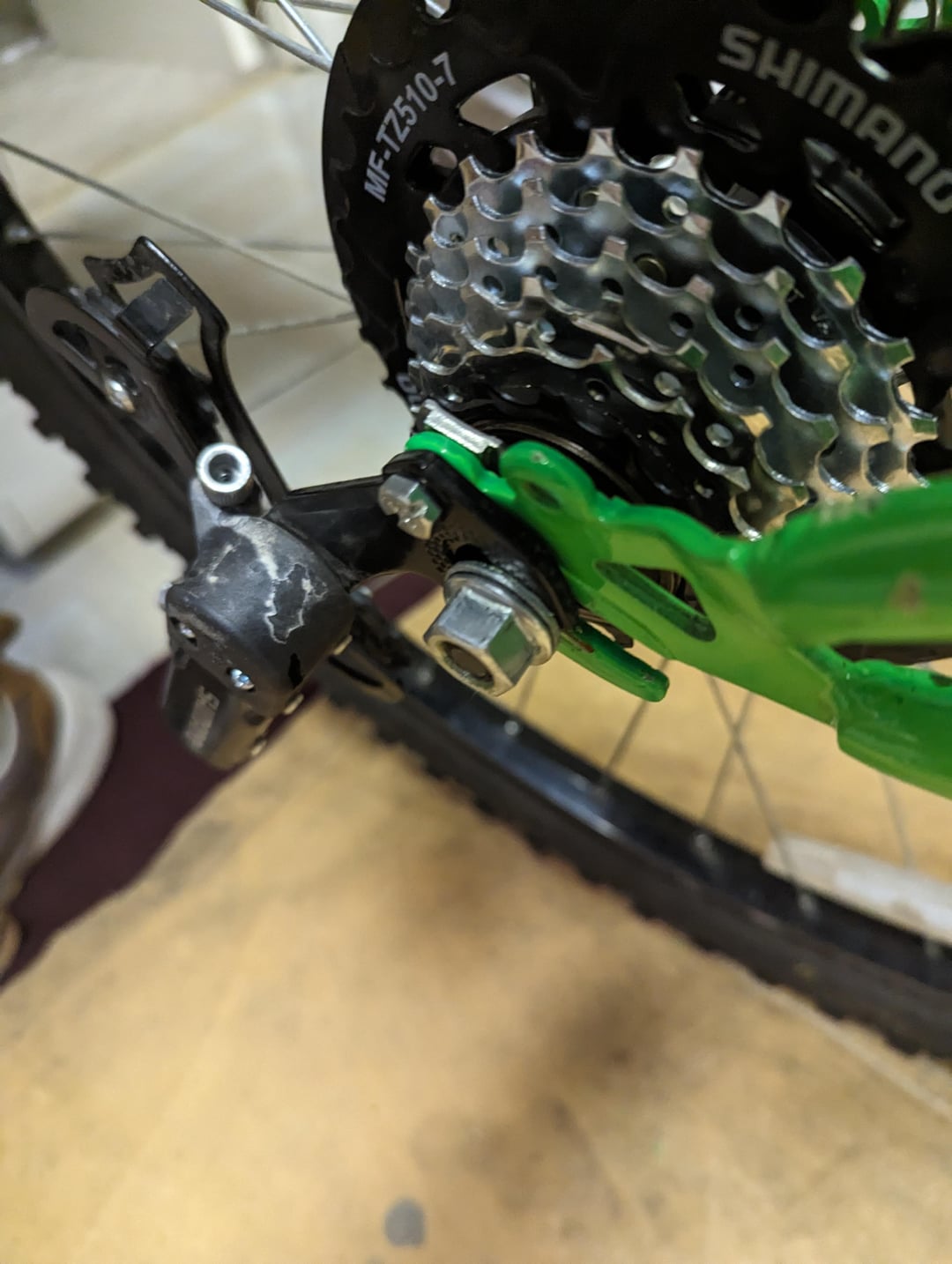

GunnyWombat on February 6, 2024 6:24 pm The mech hanger doesnt bolt into the frame like that. It slides into the dropout and the curved part of the silver bolt sits against the rear of the dropout. The tabs you have bolted it into are for mudguards and racks.
ScootMaBoot on February 6, 2024 6:24 pm It’s mounted incorrectly. See pg 13. https://si.shimano.com/en/pdfs/dm/GN0001/DM-GN0001-26-ENG.pdf
2 Comments
The mech hanger doesnt bolt into the frame like that.
It slides into the dropout and the curved part of the silver bolt sits against the rear of the dropout.
The tabs you have bolted it into are for mudguards and racks.
It’s mounted incorrectly. See pg 13. https://si.shimano.com/en/pdfs/dm/GN0001/DM-GN0001-26-ENG.pdf
