I believe it’s a 73mm bottom bracket and the crank spindle needs to be long enough to fit that. I’ve got a 920 that I reconverted to a 2x, and the GRX I tried had a spindle that was too short.
Posibill on
It is 100% a 73mm bottom bracket shell so crank won’t work. Almost any mountain double will work.
Shimano cranks use a 24mm spindle so you’d need a shimano bottom bracket (or compatible 24mm spindle bottom bracket)
SRAM GXP is a 22/24mm spindle so 24 on one end and 22 on the other. Works with SRAM GXP compatible cranks.
Bubu510kush on
Can you tell us what’s the brand name saddle/seat post bag you have there? Tnx
woodwarmsteelreal on
Idk about the BB width but you need a hollowtech BB to go with that crank. The SRAM gxp won’t work. (+ They are crap anyway)
5 Comments

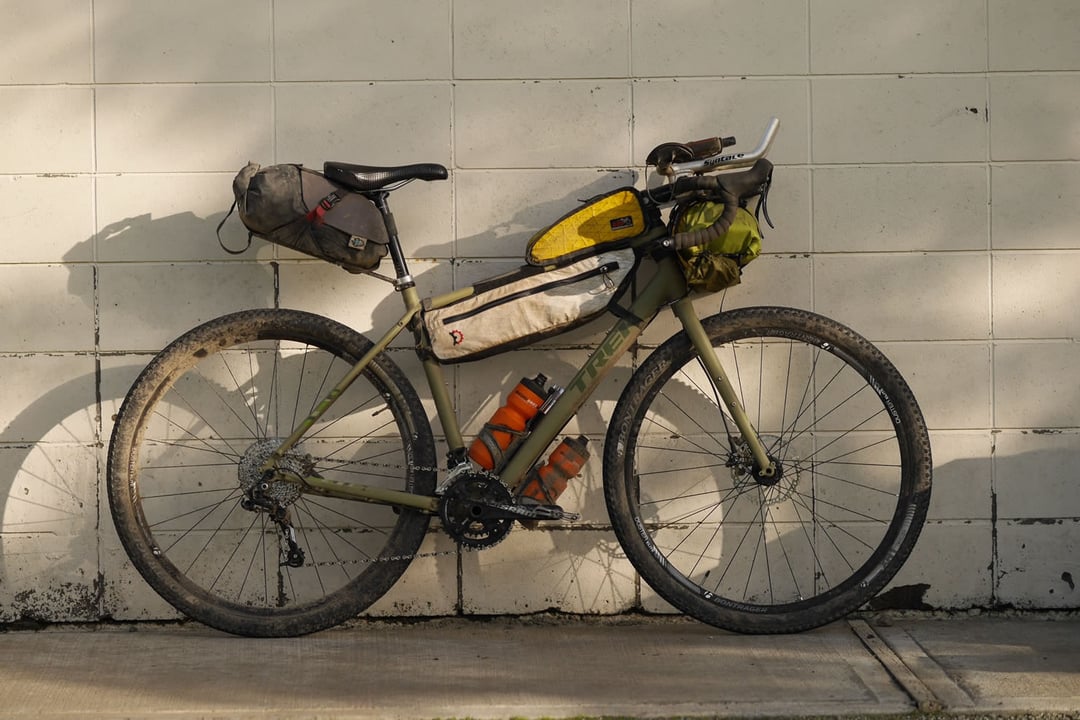

Idk but I’ve always loved these frames
I believe it’s a 73mm bottom bracket and the crank spindle needs to be long enough to fit that. I’ve got a 920 that I reconverted to a 2x, and the GRX I tried had a spindle that was too short.
It is 100% a 73mm bottom bracket shell so crank won’t work. Almost any mountain double will work.
Shimano cranks use a 24mm spindle so you’d need a shimano bottom bracket (or compatible 24mm spindle bottom bracket)
SRAM GXP is a 22/24mm spindle so 24 on one end and 22 on the other. Works with SRAM GXP compatible cranks.
Can you tell us what’s the brand name saddle/seat post bag you have there? Tnx
Idk about the BB width but you need a hollowtech BB to go with that crank. The SRAM gxp won’t work. (+ They are crap anyway)
