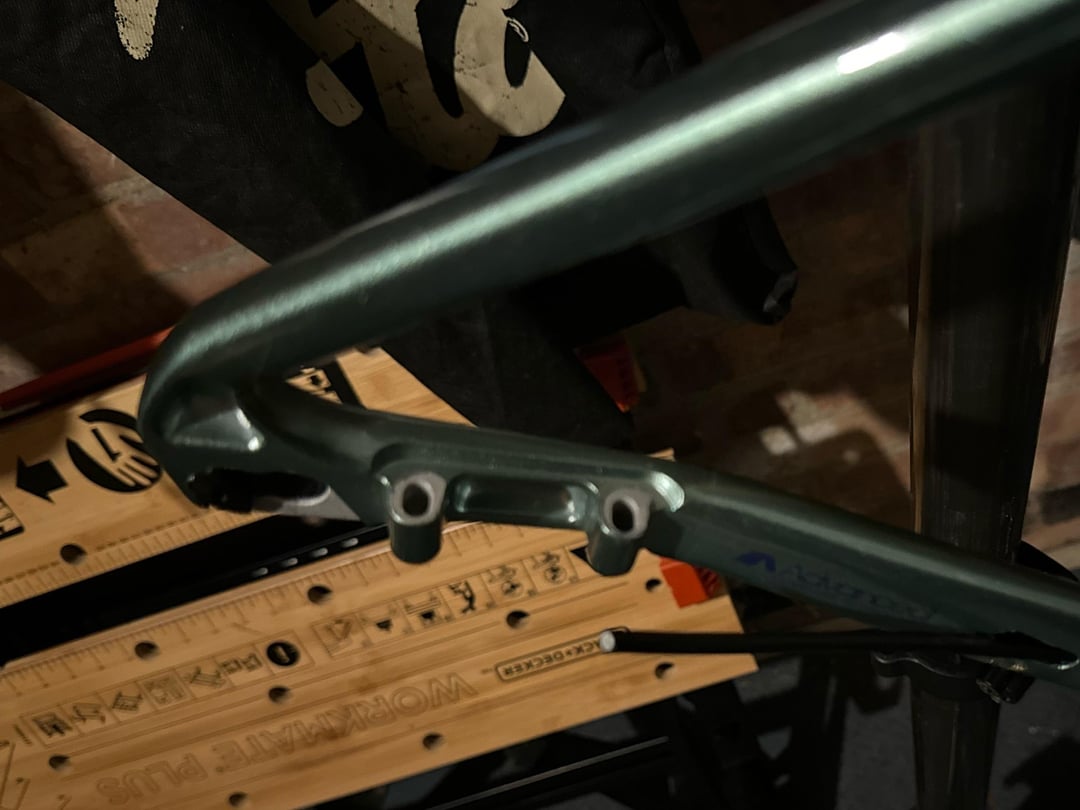

I’ve started a frame swap, all was going well until I’ve gone to fit my fear calliper into the new bike.

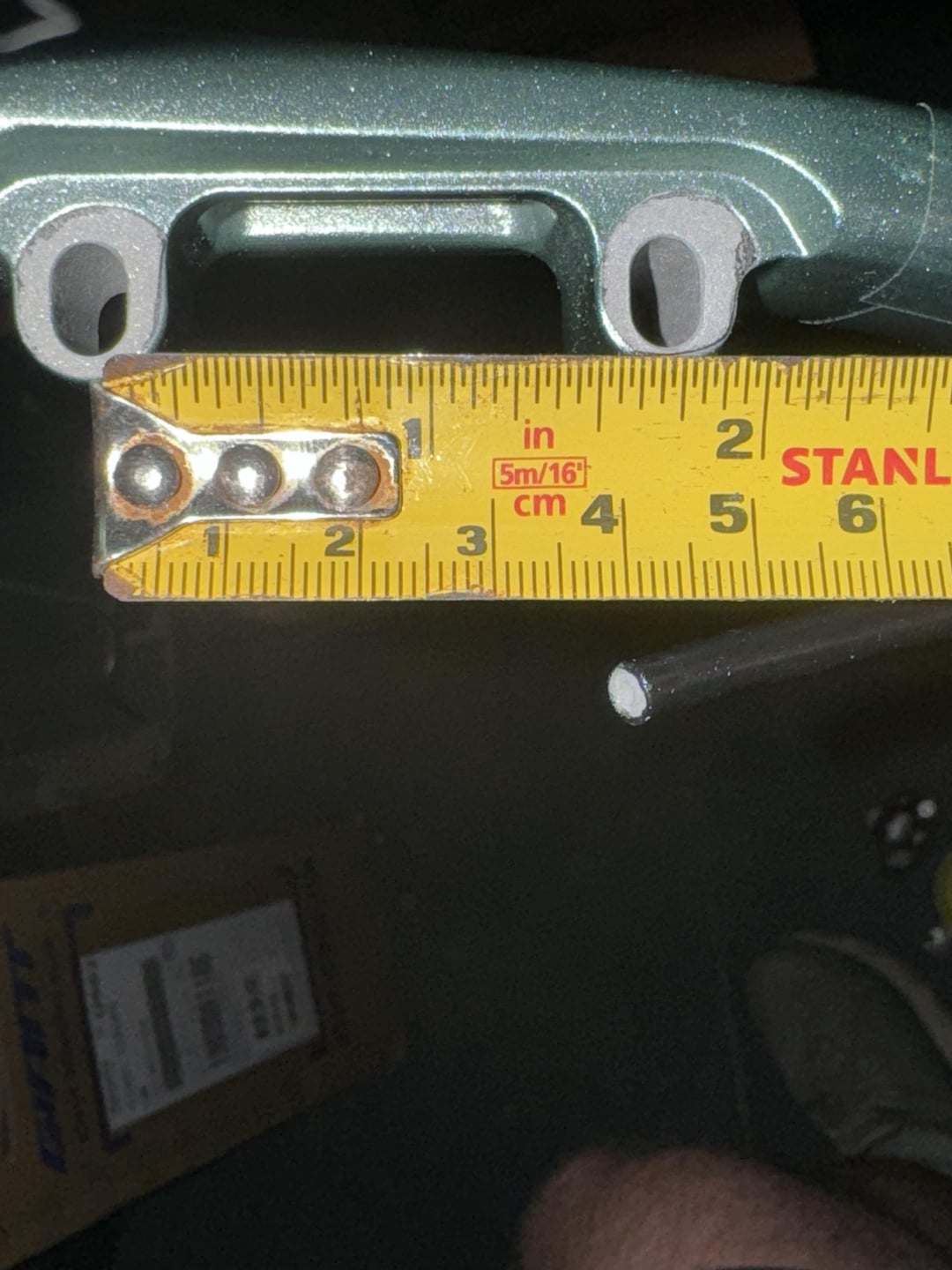

The bolt distance is 45mm and after an hour furiously googling I am still none the wiser.

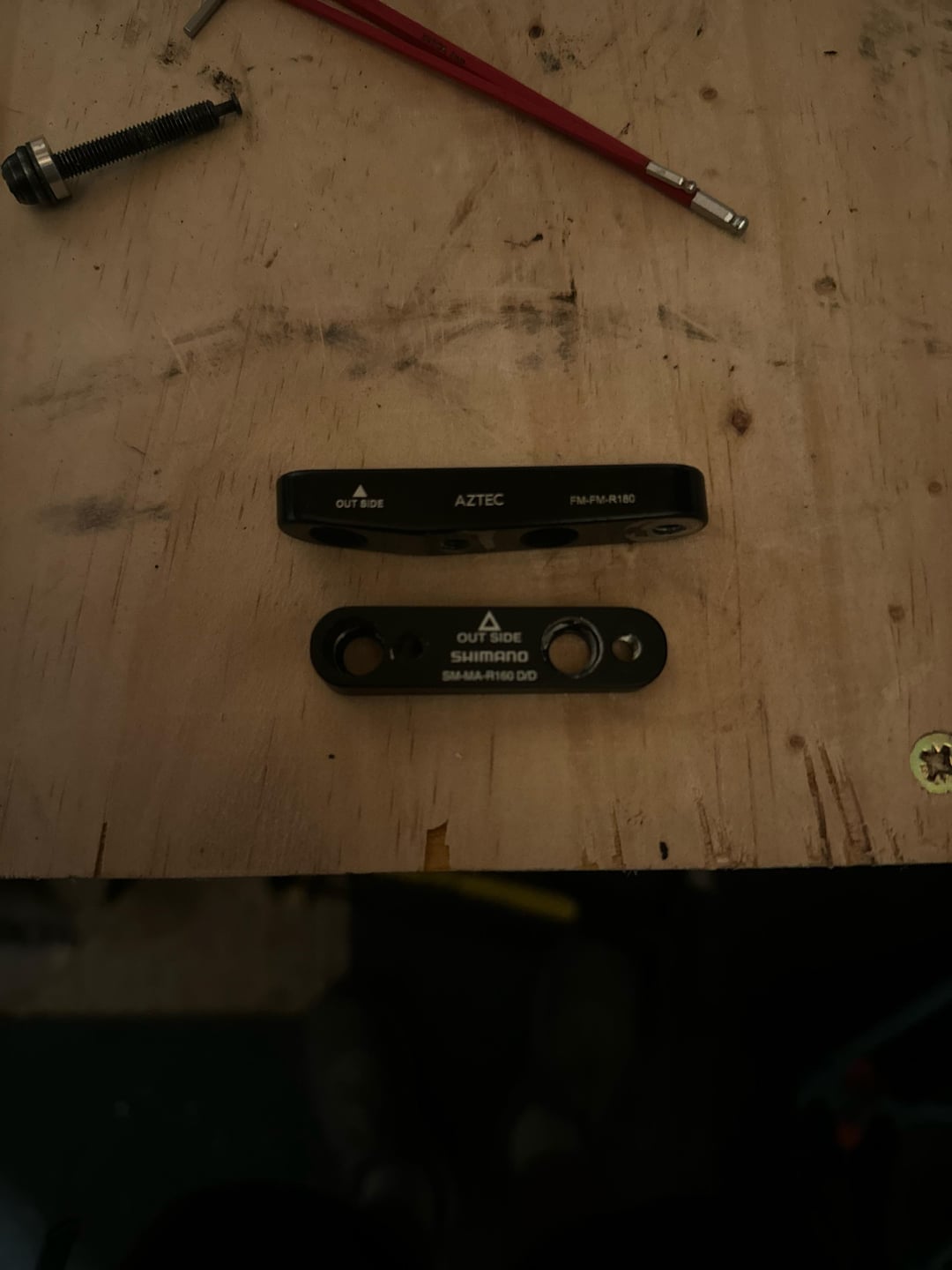

Flat mount is usually 34mm and all the adaptors I’ve collected over the years use this width as I’ve just confirmed.

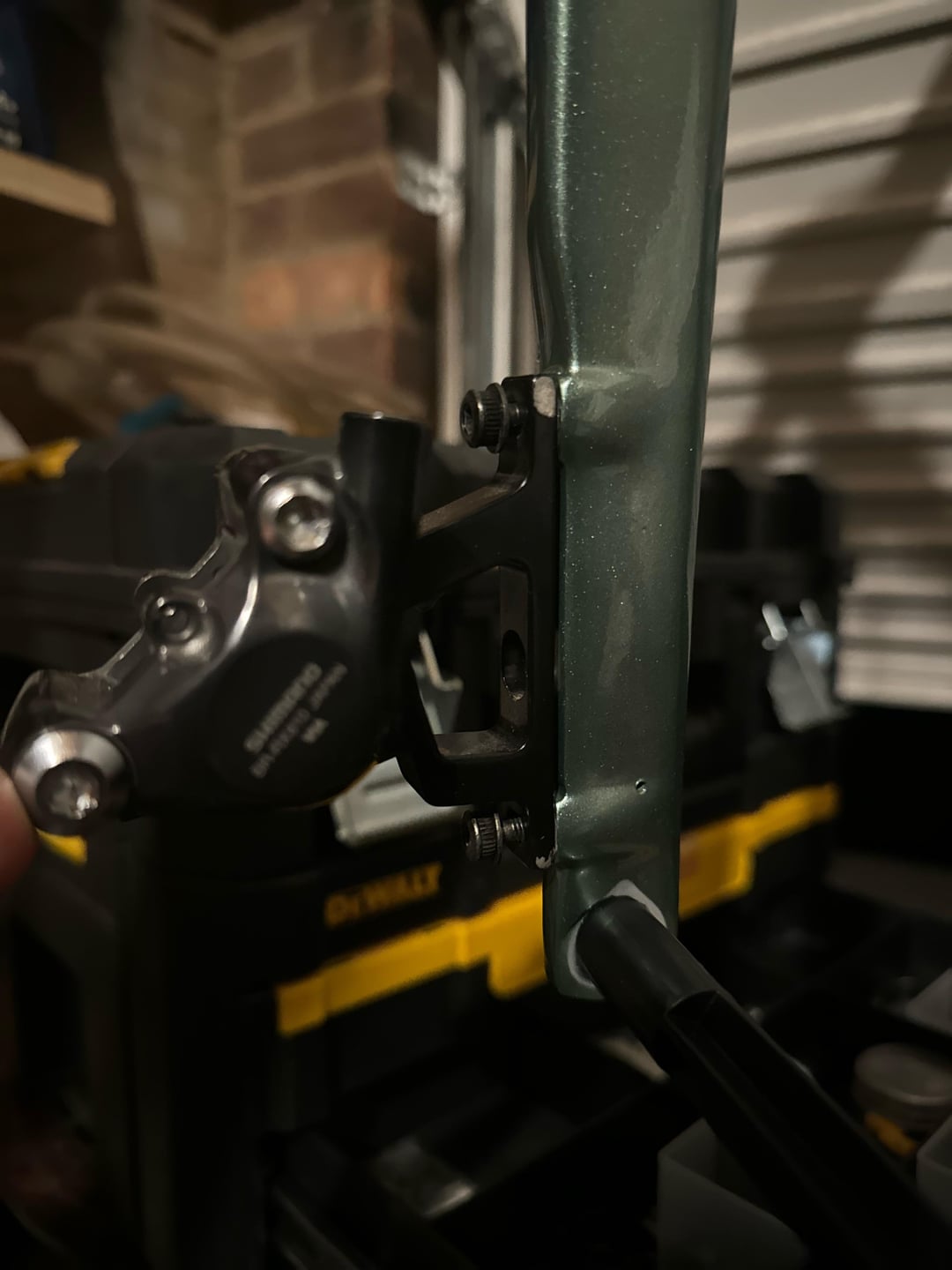

Front caliper was a straight swap using a same flat mount adaptor.
Any ideas?
by Bazarooo
2 Comments
No idea on dimensions but I think one of the SRAM adapters sticks out both ends of the caliper itself
What frame is it, and what brakes did it have originally?
Edit: Since the frame has adjustable dropouts at the rear with a flipchip, there’s a corresponding adapter that fits on there. (Since if you move the axle of the rear wheel, you also need to move the caliper with it)
https://static.giant-bicycles.com/Manuals/MY22FlipChipInstructions_1641917727.pdf
There should be a similar adapter for the 2024 Giant Revolt
