New Bike Build. I did take a few links out already.
Always afraid of taking too many out!

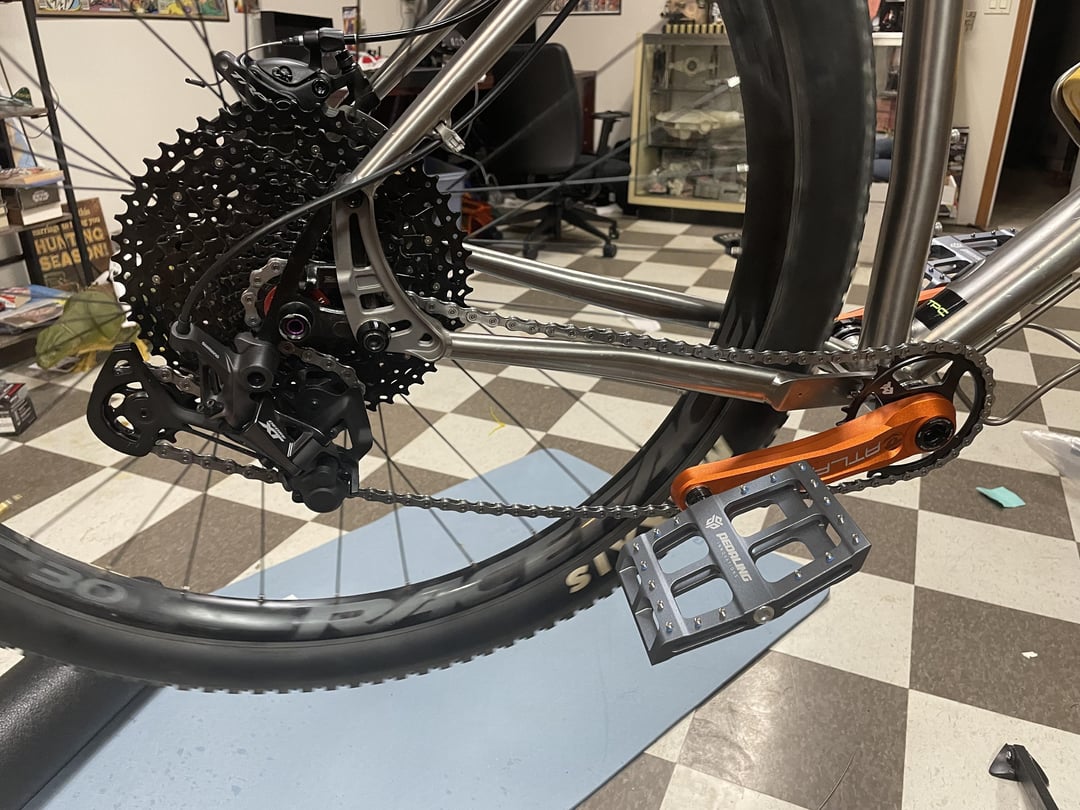

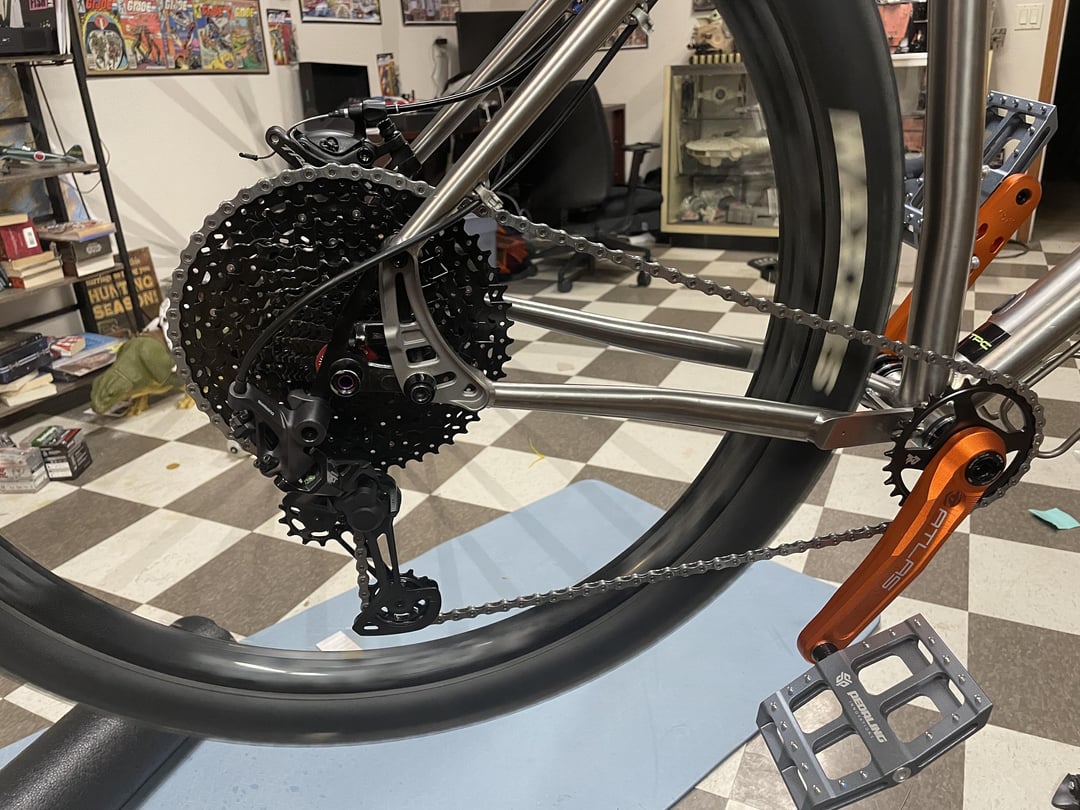

See derailiur position on lowest gear. Shorter chain would pull it forward more.
by porktornado77
New Bike Build. I did take a few links out already.
Always afraid of taking too many out!
See derailiur position on lowest gear. Shorter chain would pull it forward more.
by porktornado77
4 Comments
Too long, looks like it’s resting on top of the chain stay?
Big cog, to chainring + 3 links, for shimano.
[https://www.youtube.com/watch?v=VdUQKVMPF5I&ab_channel=ParkTool](https://www.youtube.com/watch?v=VdUQKVMPF5I&ab_channel=ParkTool)
Can you double-check that this is the SGS-type XT derailleur that has longer cage and the capacity for 10-51?
If so, then I would remove exactly one pair of chain links. It’s definitely too long in the smallest sprocket.
If in doubt, count the old links
Finding and following the install guide is always the correct move: https://si.shimano.com/en/pdfs/dm/MARD001/DM-MARD001-05-ENG.pdf
Modern Shimano 1x RDs have a much larger b gap setting than derailleurs from past generations. you can’t go wrong following the manual to the letter, but you can go wrong following a 10 year old video that doesn’t apply to modern derailleurs.
