I’m working on a neighbors Hurley hydrous 29er e-bike, and his bearings are shot.
There’s a label that reads “6804rs” but the measurements don’t match up.
Online references say 6804rs = 20x32x7

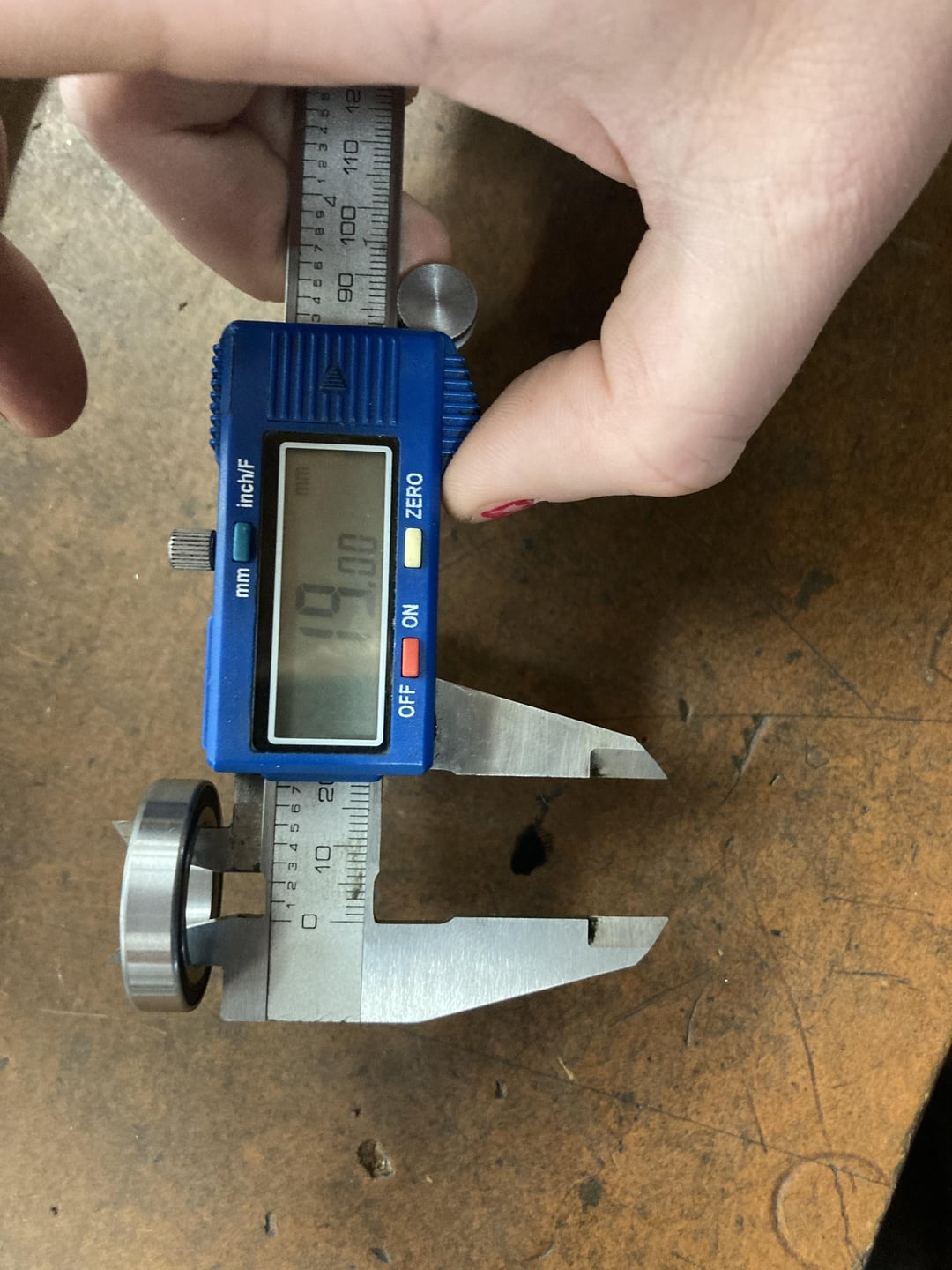

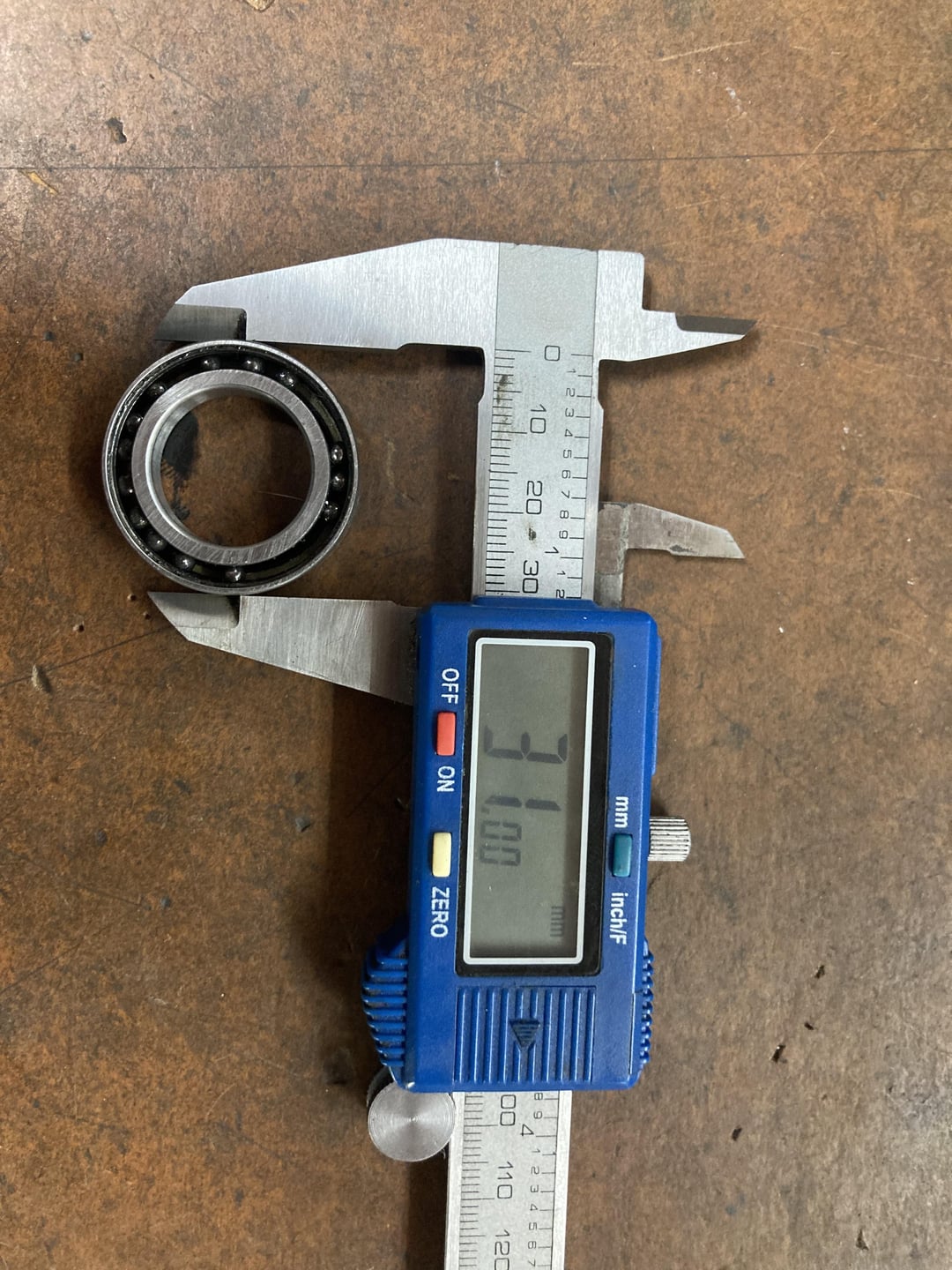

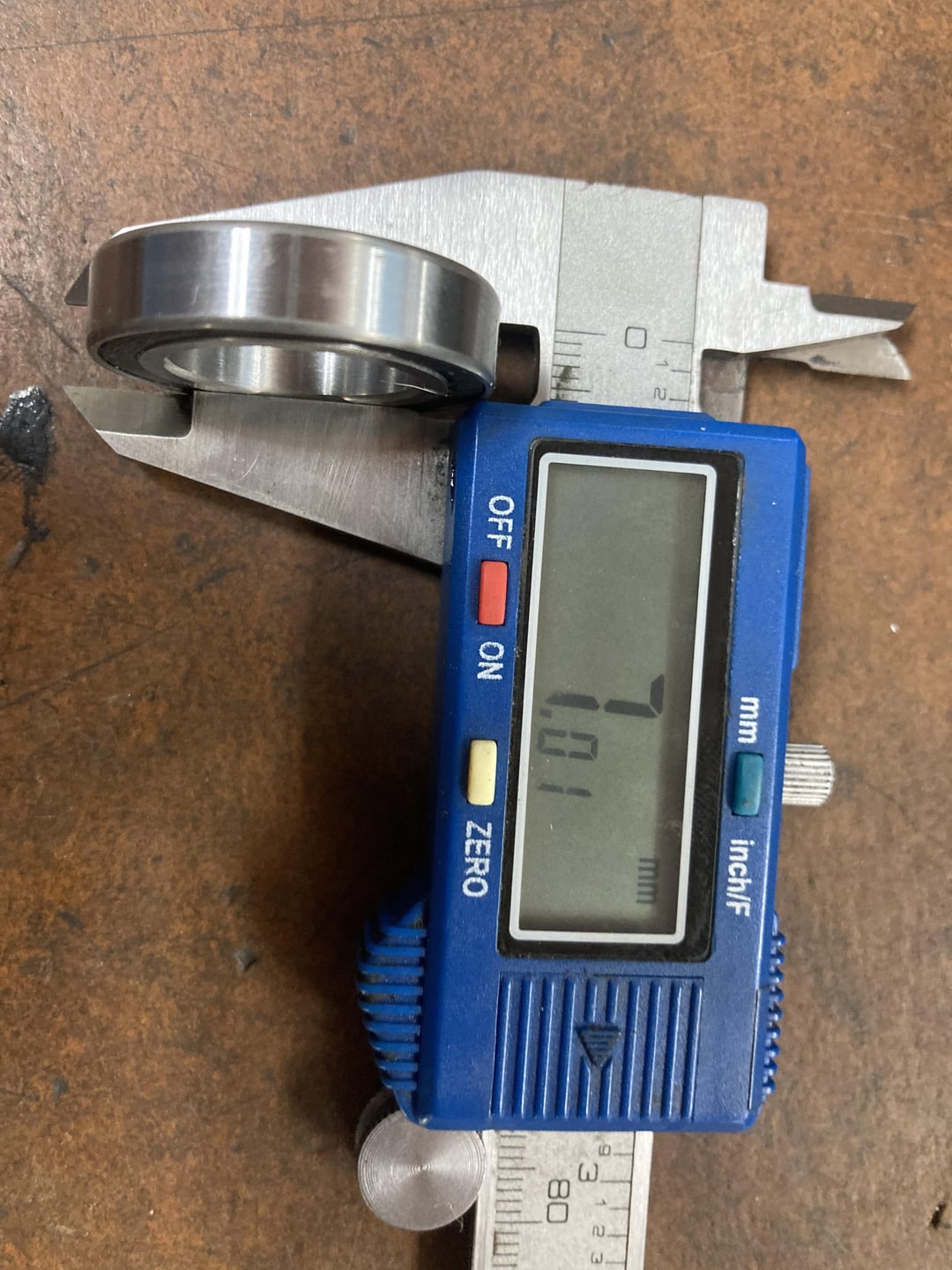

But my bearing measures 19x31x7
Am I measuring mine wrong? Any tips?
by MartinAdkins
4 Comments
It’s a non-standard bearing size so your local results may vary.
Searching “19 31 7 ball bearing” came up with a few local (and international) results for me.
https://www.kineticbikebearings.com/mr1905317-2rs-max-19-05-x-31-x-7mm.html
https://www.alie()xpress.com/i/32890655457.html (Reddit filters AliExpress links, remove () to see product) AliExpress bearing quality may differ significantly to reputable brands.
Any reason you can’t just replace the BB as a whole?
Have you considered just getting a new bottom bracket? Chances are good that that’s your cheapest and simplest option.
https://preview.redd.it/fxrekldo9nfc1.jpeg?width=1125&format=pjpg&auto=webp&s=f96b1420d538be076b5e50a44ce330a3bcba73ce
These are non-standard bearings 19317
