* (8) 3/4” x 2’ PVC pipe
* (2) 3/4” PVC coupling
* (2) 3/4” PVC 3-way 90 degree socket
* (6) 3/4” PVC cap slip
* (2) 1” metal spring clamp
**Crossbar**
* (3) 1/2” x 2’ PVC pipe
* (2) 1/2” PVC coupling
* (2) 1/2” PVC cap slip
**Optional**
* Use electrical tape for bar visibility as well as color coding the pieces to be built easily.

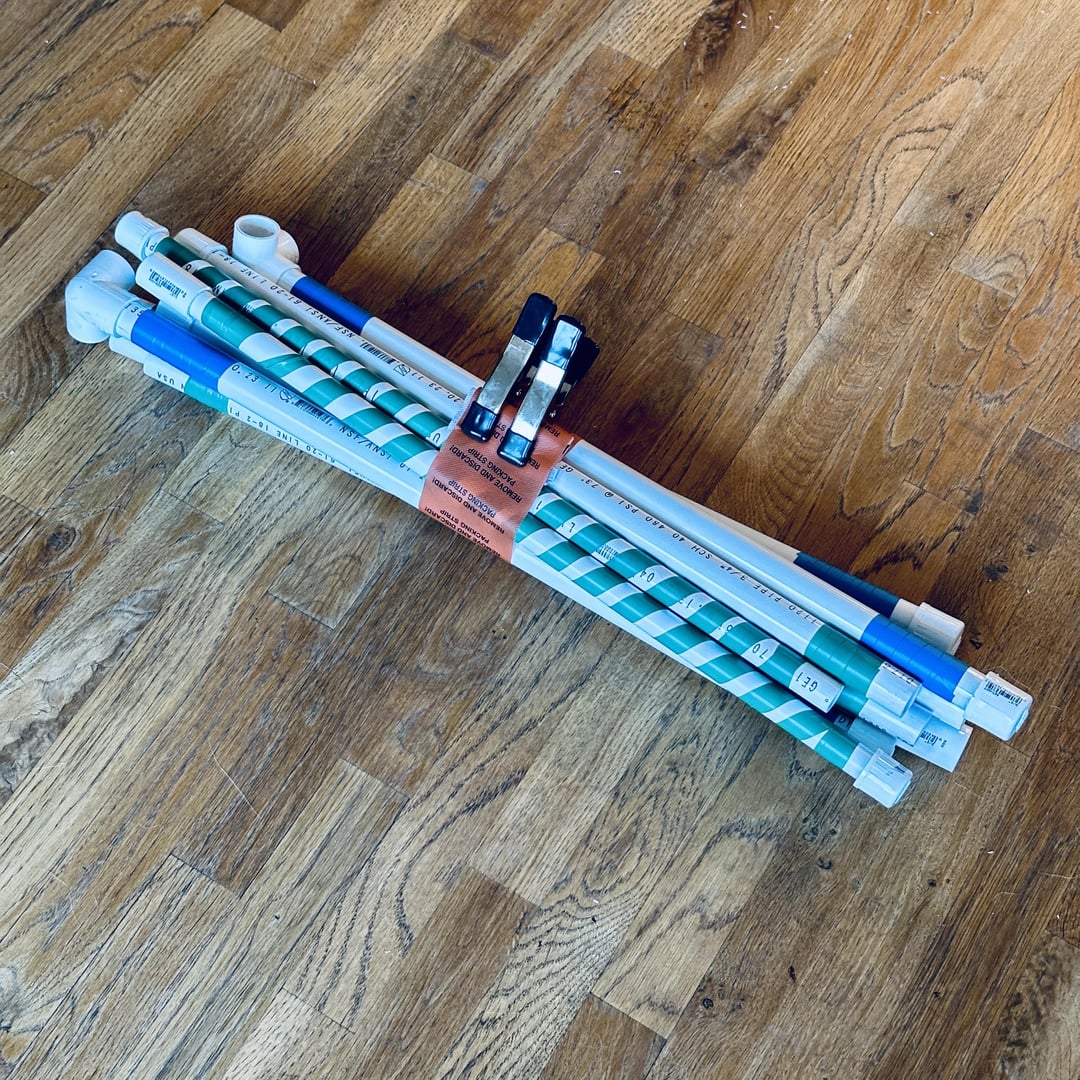

* Makeshift strap for now but the circumference of all the poles is ~13″ so I bought a 12″ Voile strap (not shown)
**Tips**

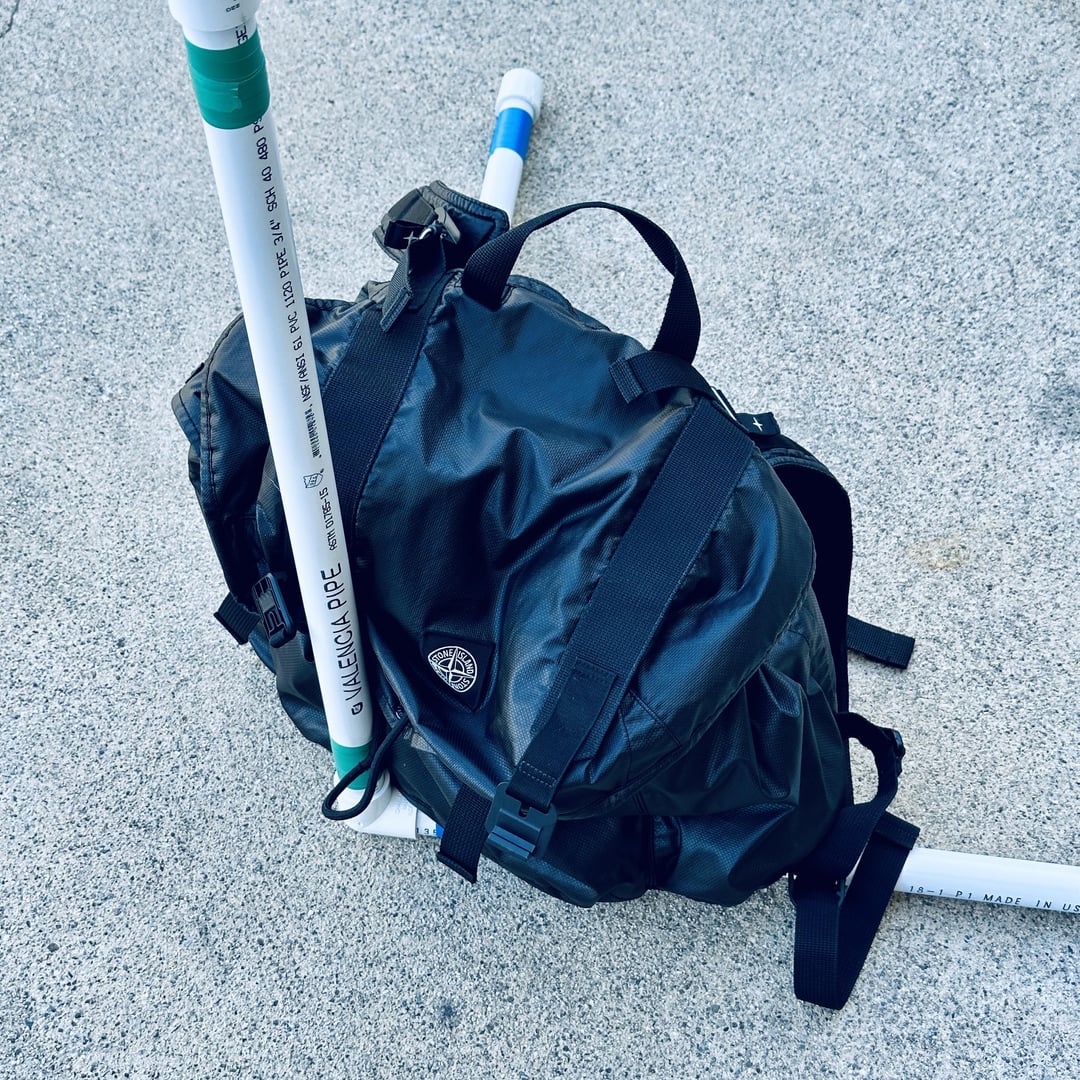

* If you and a friend are riding together, and both have bags, throw them on the legs for added stability.

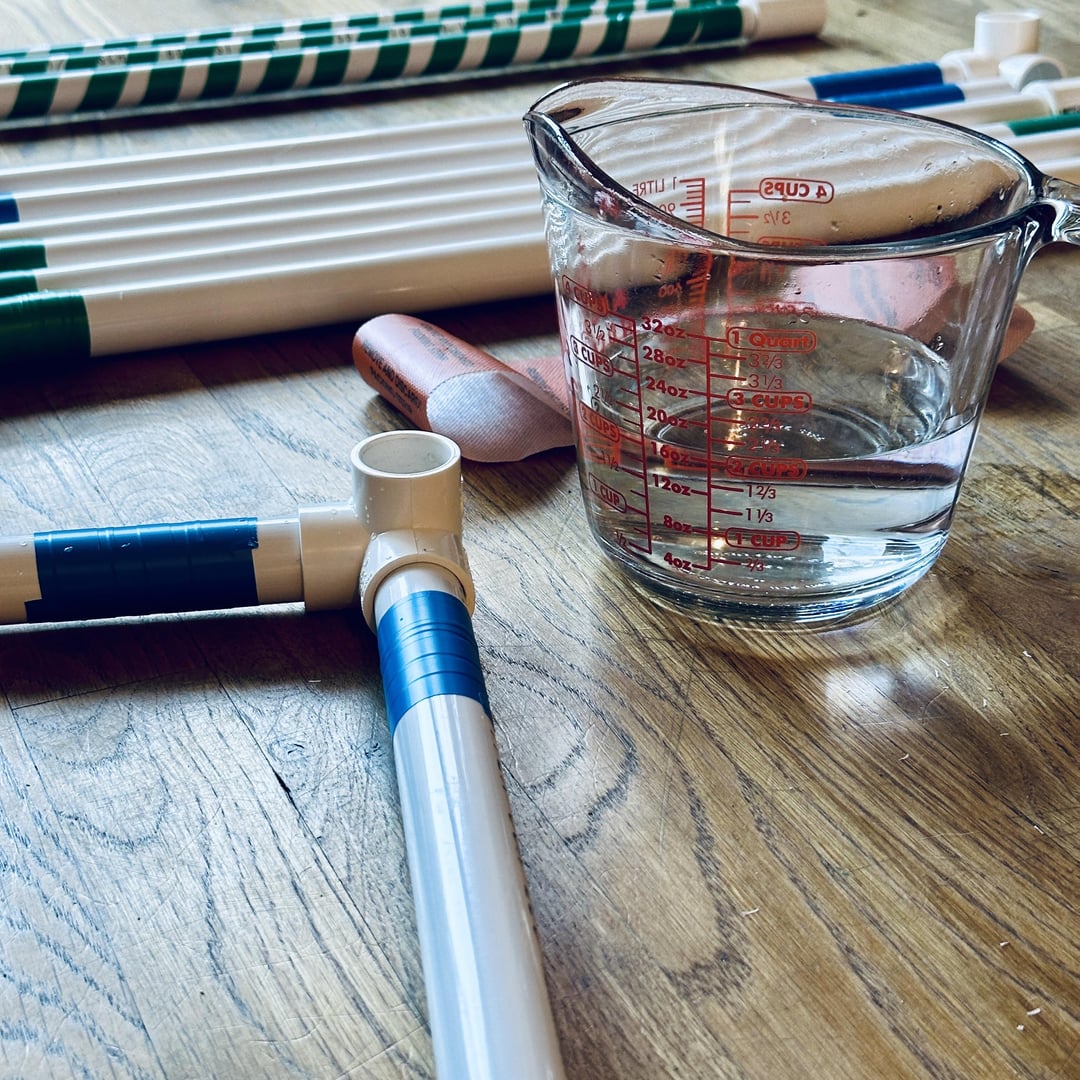

* Or if you have water handy (tap or large water bottle), fill the legs before you add the uprights and that will stabilize them. I filled each one with 16oz of water.

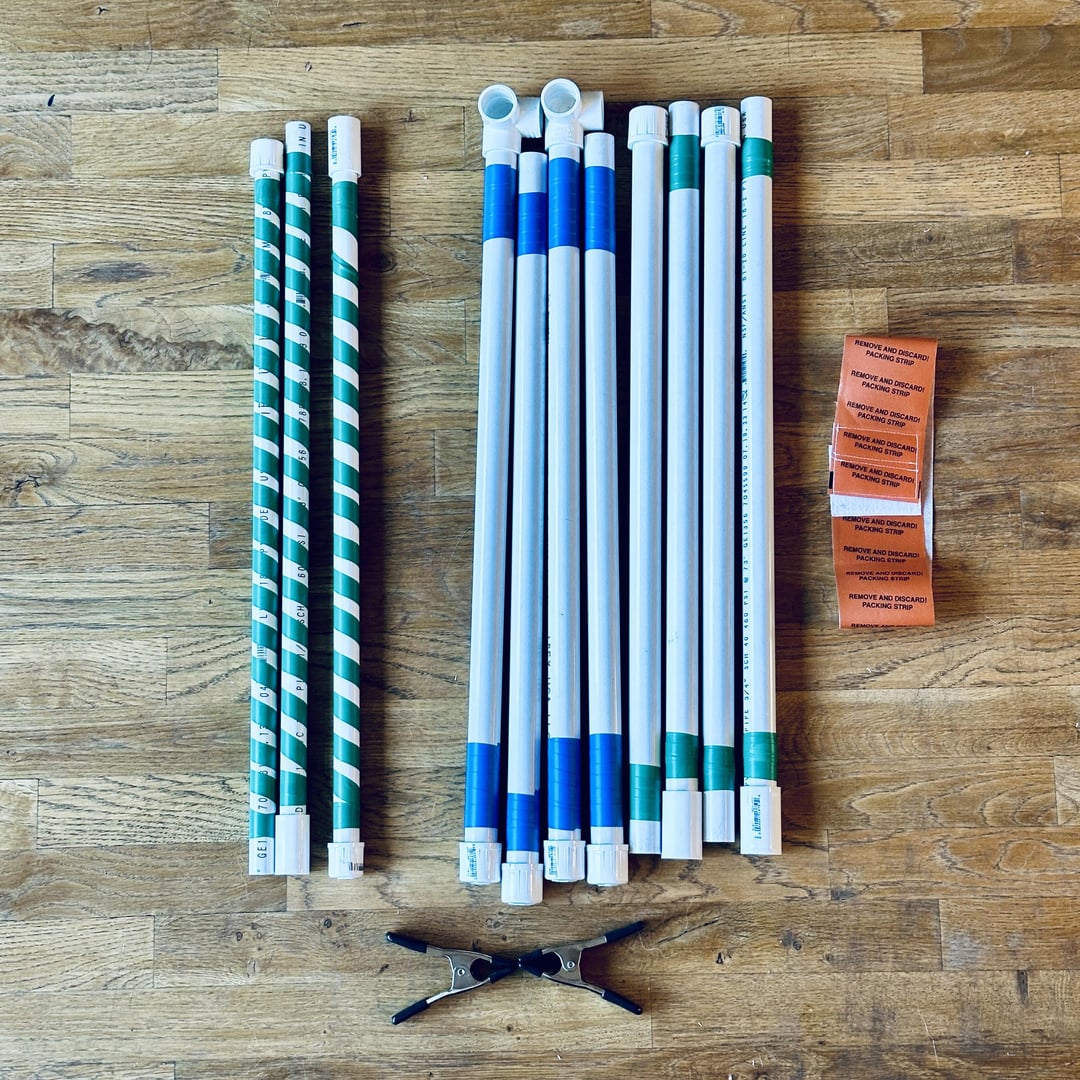

* Also, tape blue on the bottom and green on top to easily identify which one is meant to go where speedily. Use whatever color your heart desires.

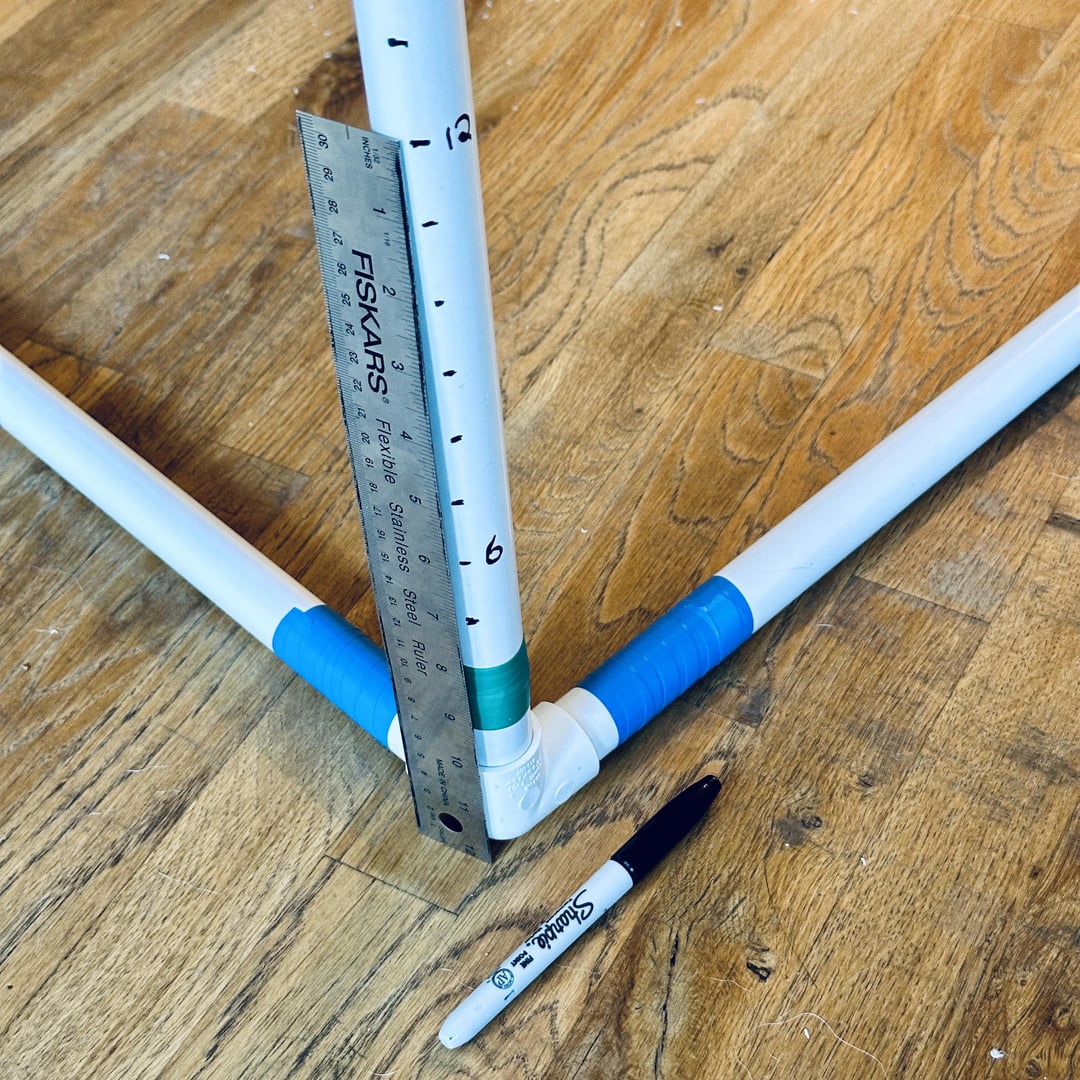

* Make sure to measure once it’s put together to compensate for the fittings.
**Cheaper Version**
* Don’t worry about any of the caps (although they do level out the legs with the 3-way socket on the bottom)
* You could get away with just (2) 1/2″ x 2′ PVC pipe for the bar. I personally like 3 as you can safely try 180s.
SIGMA_GLIZ_BOT on
Back in my day we just stacked skateboards or random shit but this is nice lol
2 Comments

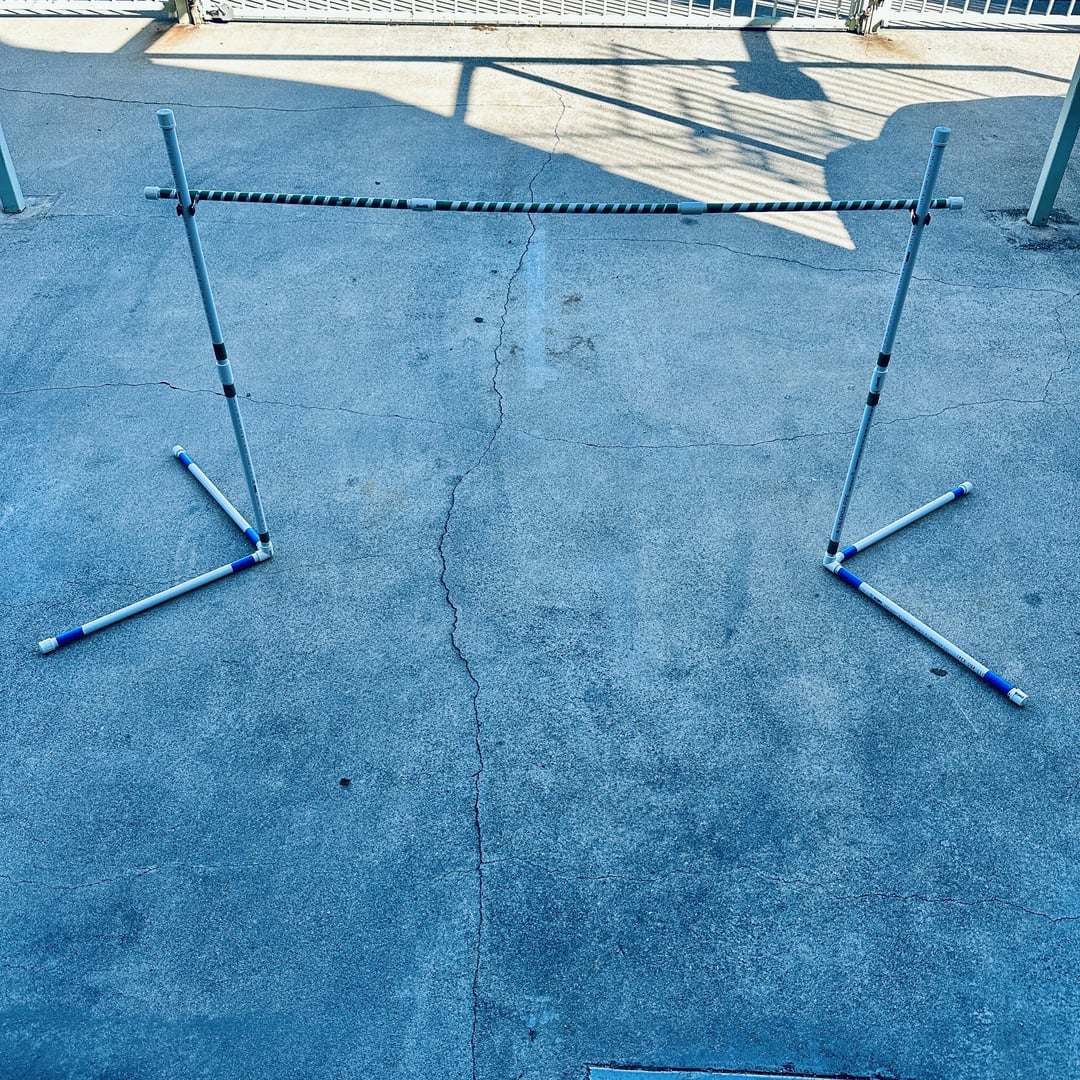

**How To: Cheap Bunnyhop-O-Meter**

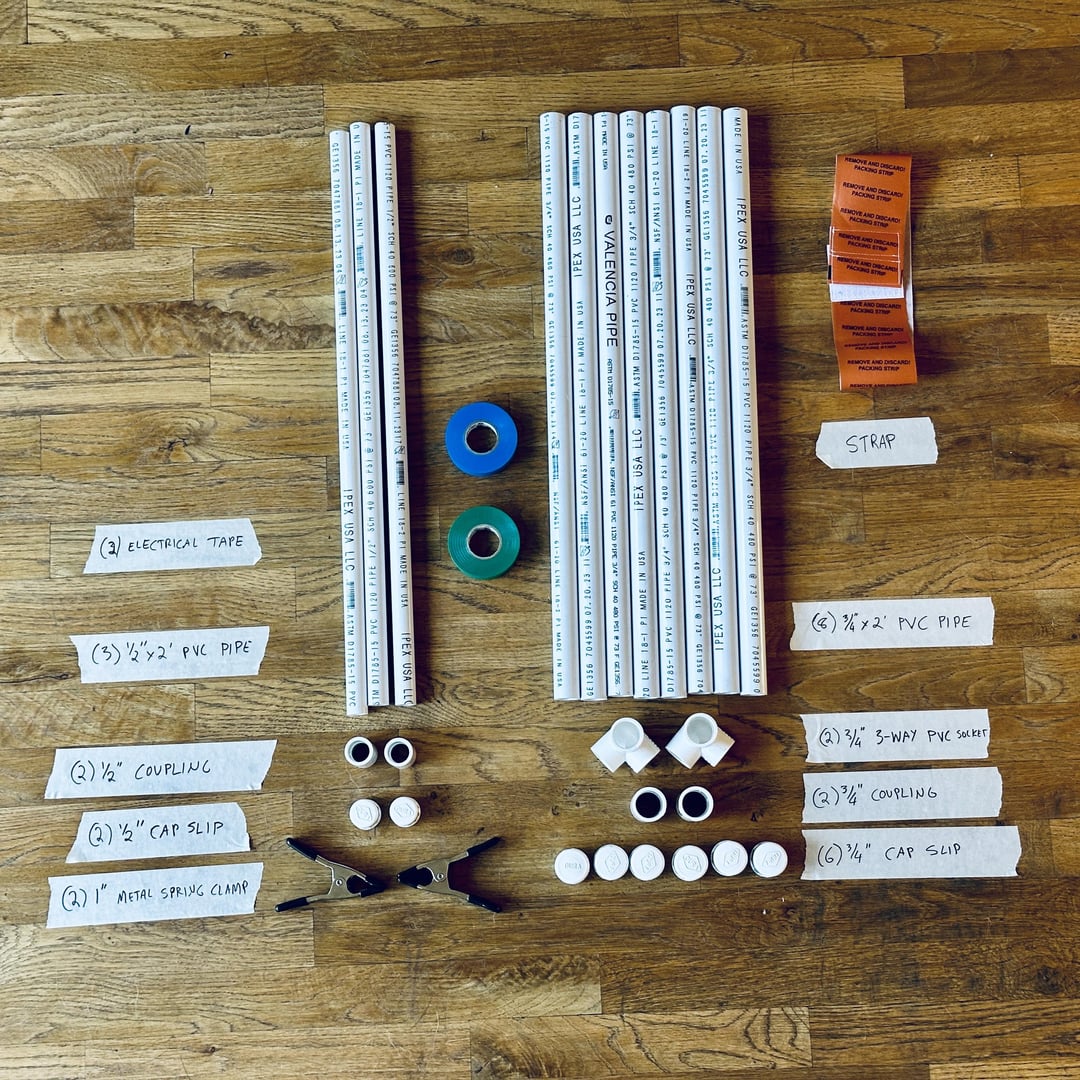

*Parts (~$50)*
**Uprights**
* (8) 3/4” x 2’ PVC pipe
* (2) 3/4” PVC coupling
* (2) 3/4” PVC 3-way 90 degree socket
* (6) 3/4” PVC cap slip

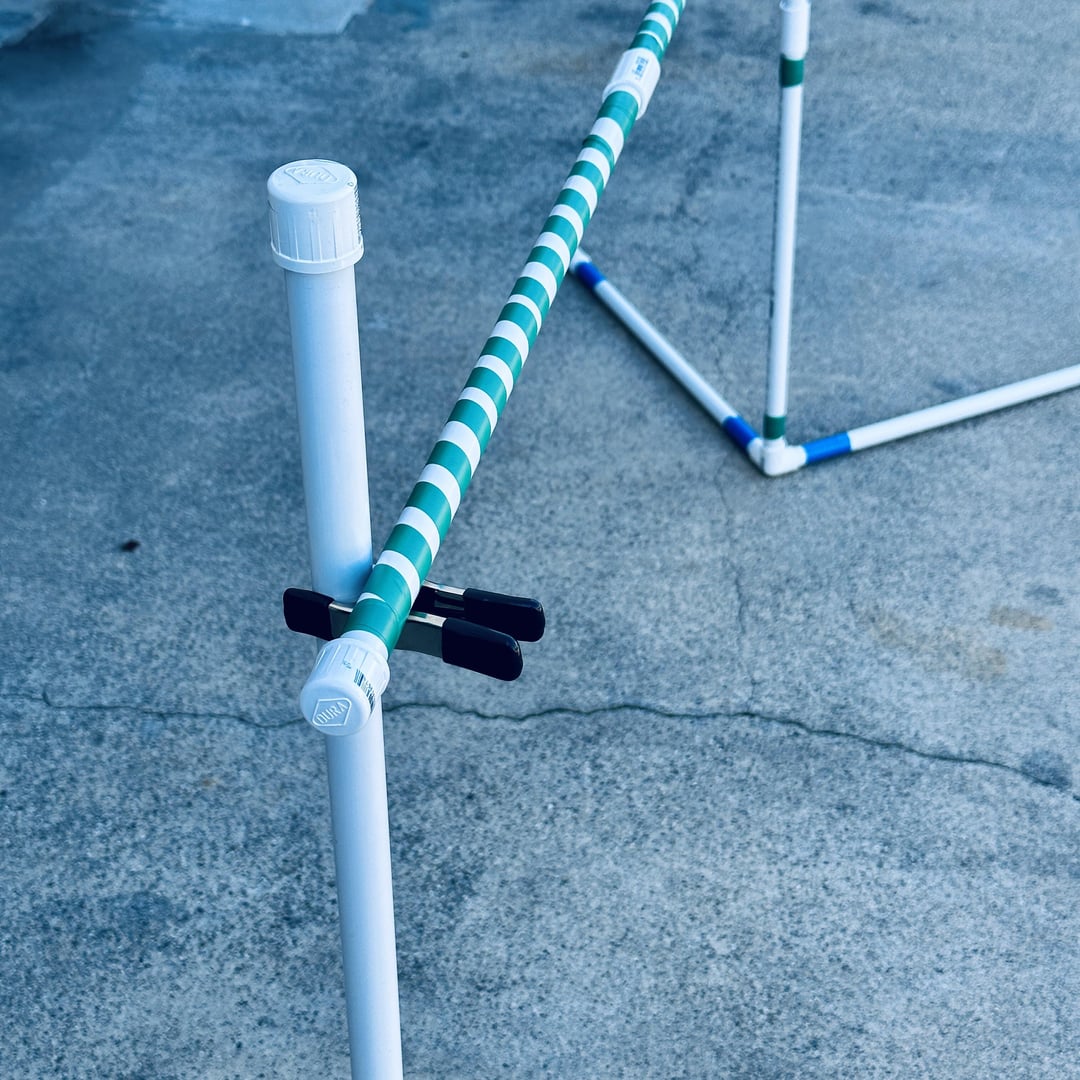

* (2) 1” metal spring clamp
**Crossbar**
* (3) 1/2” x 2’ PVC pipe
* (2) 1/2” PVC coupling
* (2) 1/2” PVC cap slip
**Optional**
* Use electrical tape for bar visibility as well as color coding the pieces to be built easily.
* Makeshift strap for now but the circumference of all the poles is ~13″ so I bought a 12″ Voile strap (not shown)
**Tips**
* If you and a friend are riding together, and both have bags, throw them on the legs for added stability.
* Or if you have water handy (tap or large water bottle), fill the legs before you add the uprights and that will stabilize them. I filled each one with 16oz of water.
* Also, tape blue on the bottom and green on top to easily identify which one is meant to go where speedily. Use whatever color your heart desires.
* Make sure to measure once it’s put together to compensate for the fittings.
**Cheaper Version**
* Don’t worry about any of the caps (although they do level out the legs with the 3-way socket on the bottom)
* You could get away with just (2) 1/2″ x 2′ PVC pipe for the bar. I personally like 3 as you can safely try 180s.
