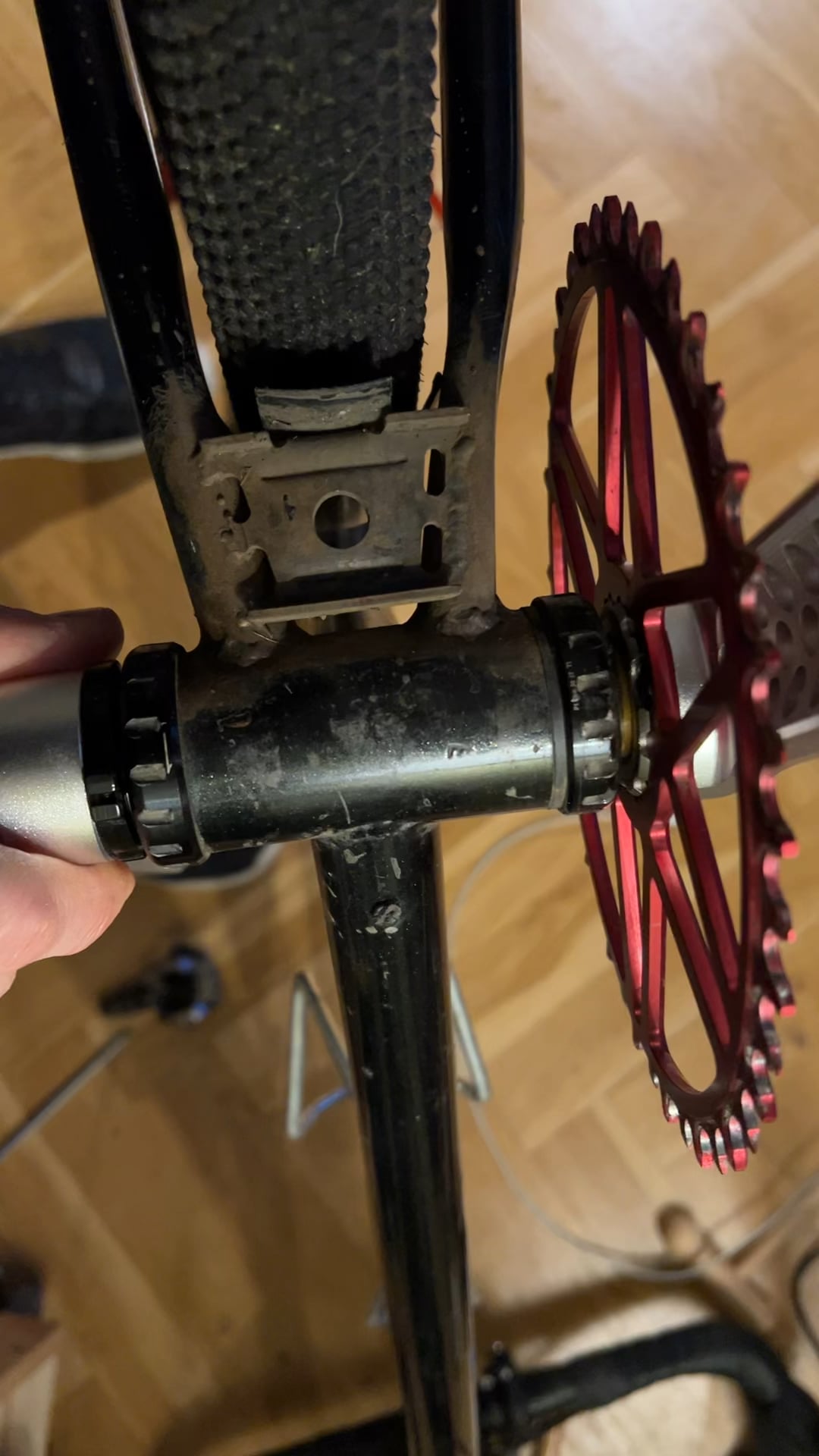

So what am I not getting right? It’s a Chinese crankset, but is sold as a road/gravel and judging by the reviews people really do install these on road/gravel frames.
My previous crankset has a shorter shaft (91mm vs 96mm on this one) and fits perfectly.
Do I just need wider cups?
If so, probably also a different chainring with an offset?
by dlgvvv
3 Comments
https://preview.redd.it/pztmdmcvws7c1.jpeg?width=1562&format=pjpg&auto=webp&s=8fce4f78a7e2270f5530ee1732aedf4678d30f71
That’s the difference in shaft length
If the difference is exactly 5mm, then you have a 73mm crank in a 68mm bottom bracket. You can take up the difference with bottom bracket spacers (shimano mountain ht2 bbs come with the spacers).
2×2.5mm spacers should do the trick, though iirc shimano gives a 1mm and 2 2mm spacers, and the 1mm goes on the non drive side.
It’s a copy of a cane creek, stam dub, Easton style crank with the pre load collar on the non drive side. Tap it flush on the drive side then screw the preload collar to push against the non drive side bearing until there’s no play. You will need to loosen the set screw on the collar to to so, retighten when done. If the pre load collar comes off its threads before the play is sorted, then add some thin plastic spindle spacers to take up space between the cost and non drive side bearing.
