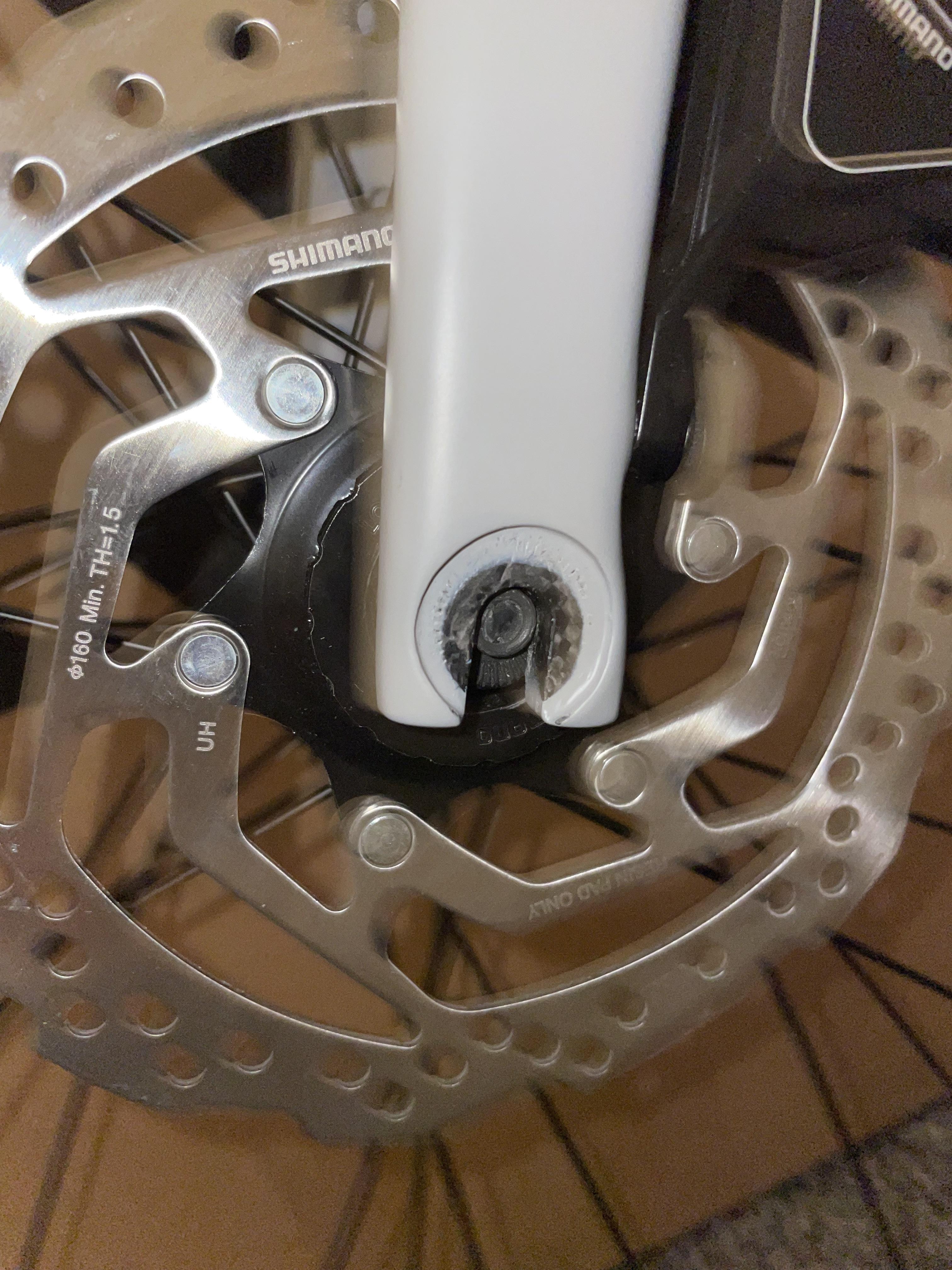

I just received Roadlite 5 from Canyon and I have some trouble installing the front wheel. A quick-release skewer comes with the bike but I can’t put it through the center of the wheel as one side seems blocked, as shown in the picture. What am I missing here? Do I need other tools or parts?
The manual they sent me is for other Canyon road bikes and they only have an online assembly video for Roadlite 9, so I basically need to figure things out by myself.
by durin607
1 Comment
The plastic protector that ships with the wheel probably broke off inside the axle. Insert the skewer on the other side and push it out.
