Hi everyone. I have setup the R7000 series FD a few times and it always feels like a little bit of a dark art.
I followed the dealer manual and watched many YouTube videos and read discussions and still have a high limit issue I still cannot figure out.
My height is correct, I am parallel, my white lines are straight, but I have a little rub in big front small back.
Easy solution, turn H limit clockwise to push FD outboard and eliminate rub

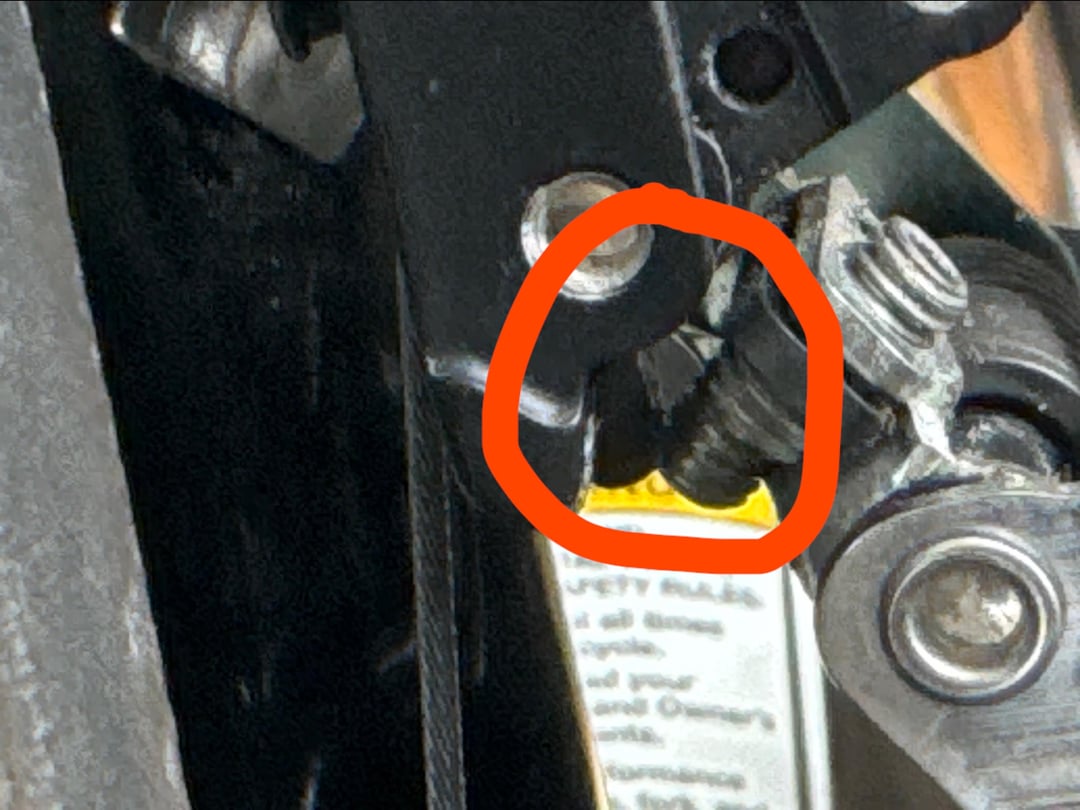

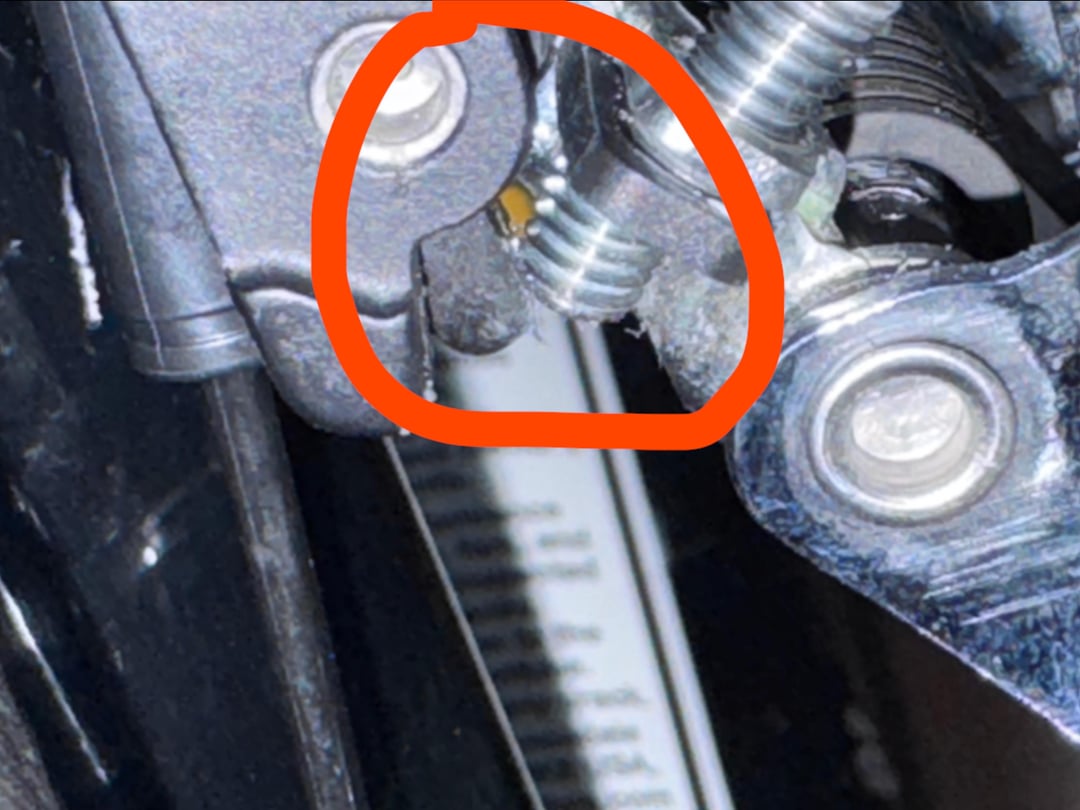

However, my H limit screw doesn’t seem to contact the derailleur body flush, and if I screw it in further, it actually slips below the derailleur body and ceases function.
Attaching some photos hoping for some input. Thanks in advance!
