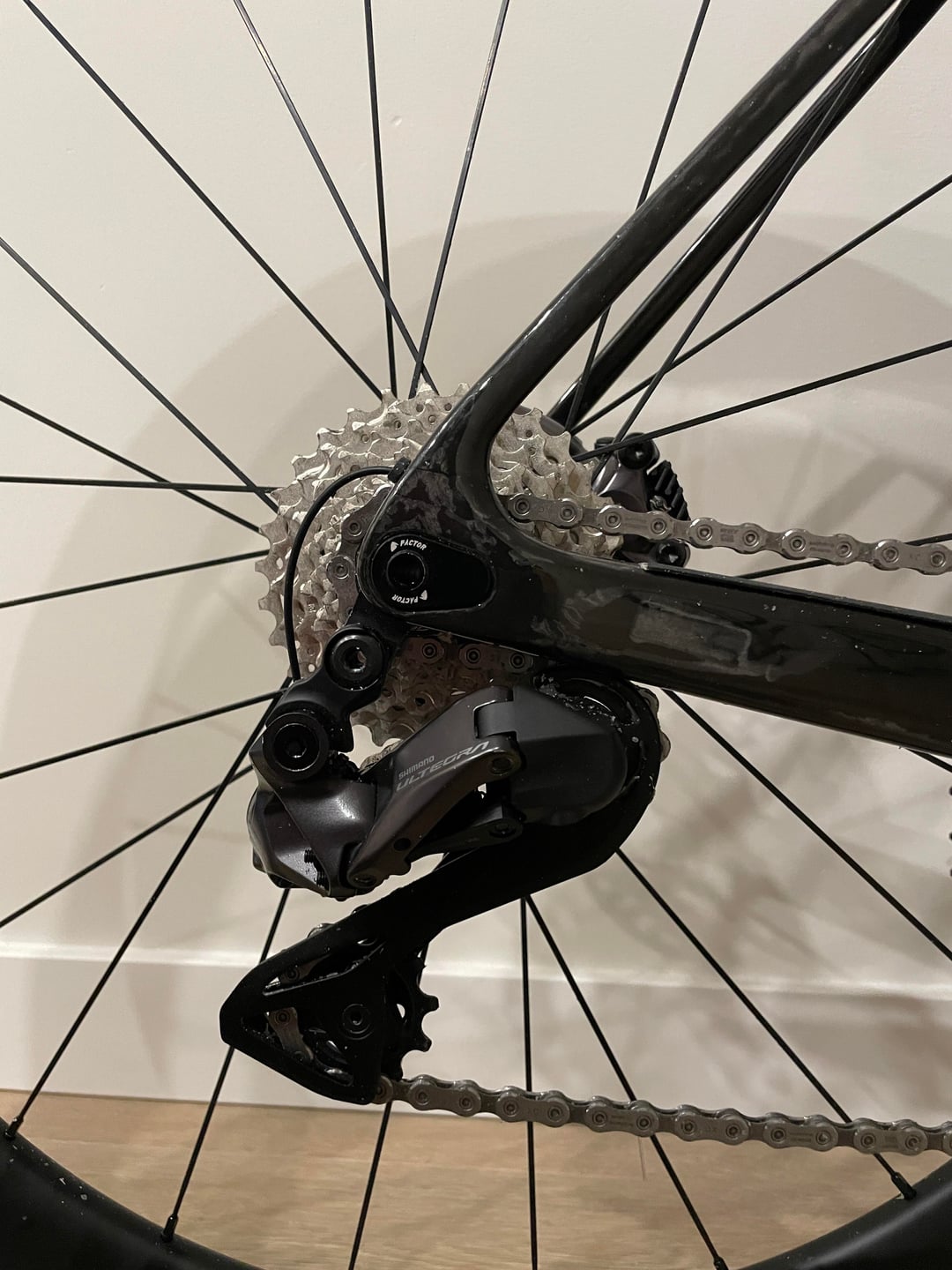

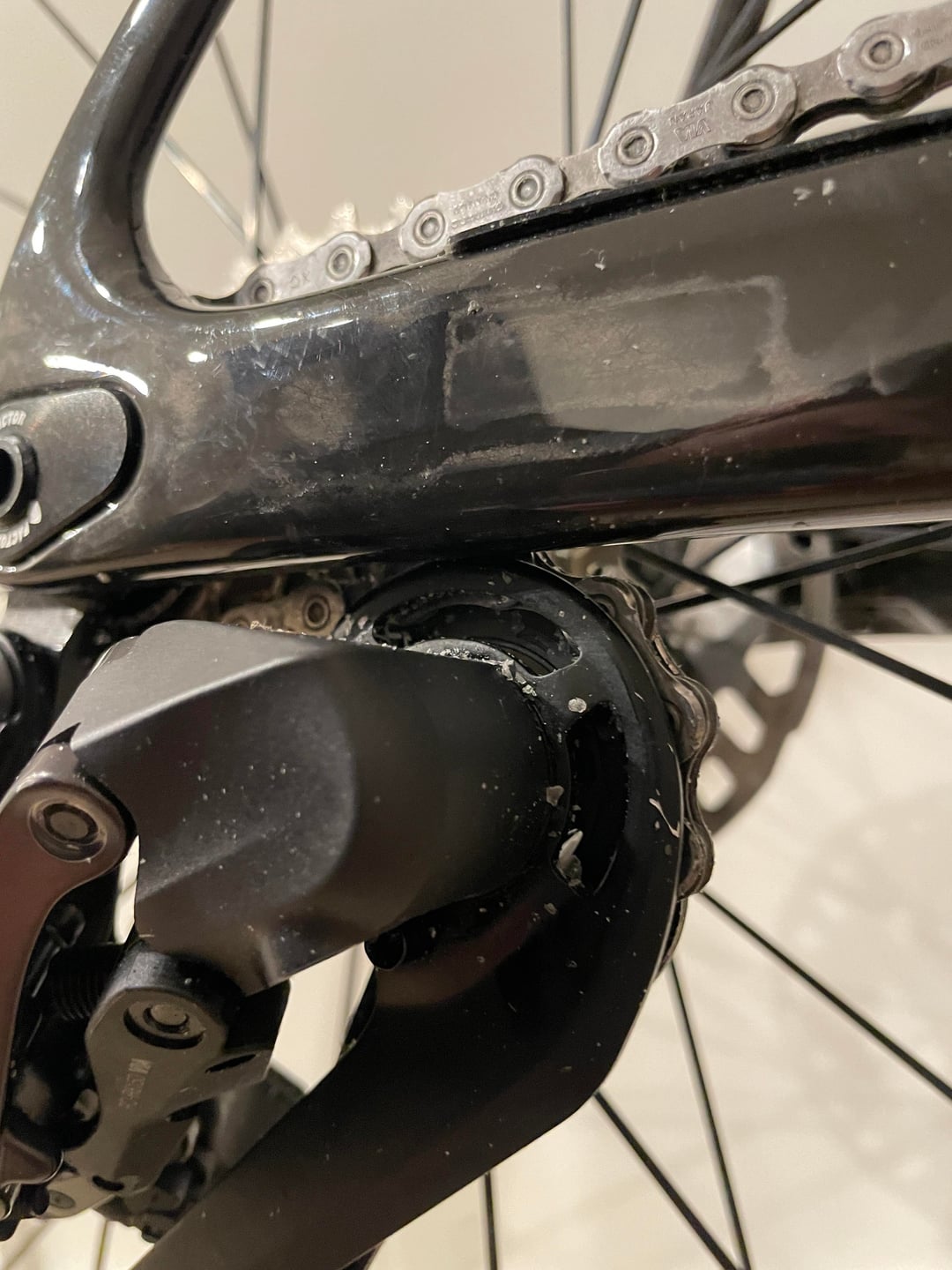

New bike build. Is my chain too long or something? Did the standard big sprocket-big chainring + 1 pin chain sizing. I’ve adjusted the B-tension with the Shimano paper guide and adjusted the H / L limit screws but still can’t fix this. Why is it holding such an aggresive upward angle?
3 Comments
New bike build. Is my chain too long or something? Did the standard big sprocket-big chainring + 1 pin chain sizing. I’ve adjusted the B-tension with the Shimano paper guide and adjusted the H / L limit screws but still can’t fix this. Why is it holding such an aggresive upward angle?
Your derailleur is installed incorrectly.
https://bicycles.stackexchange.com/questions/84123/do-9-speed-and-11-speed-derailleurs-need-different-hangers
See the one with the yellow frame on the right? Notice how the B link sits horizontal where it’s vertical on your bike? It needs to be horizontal.
You’re doing it wrong. 😊
