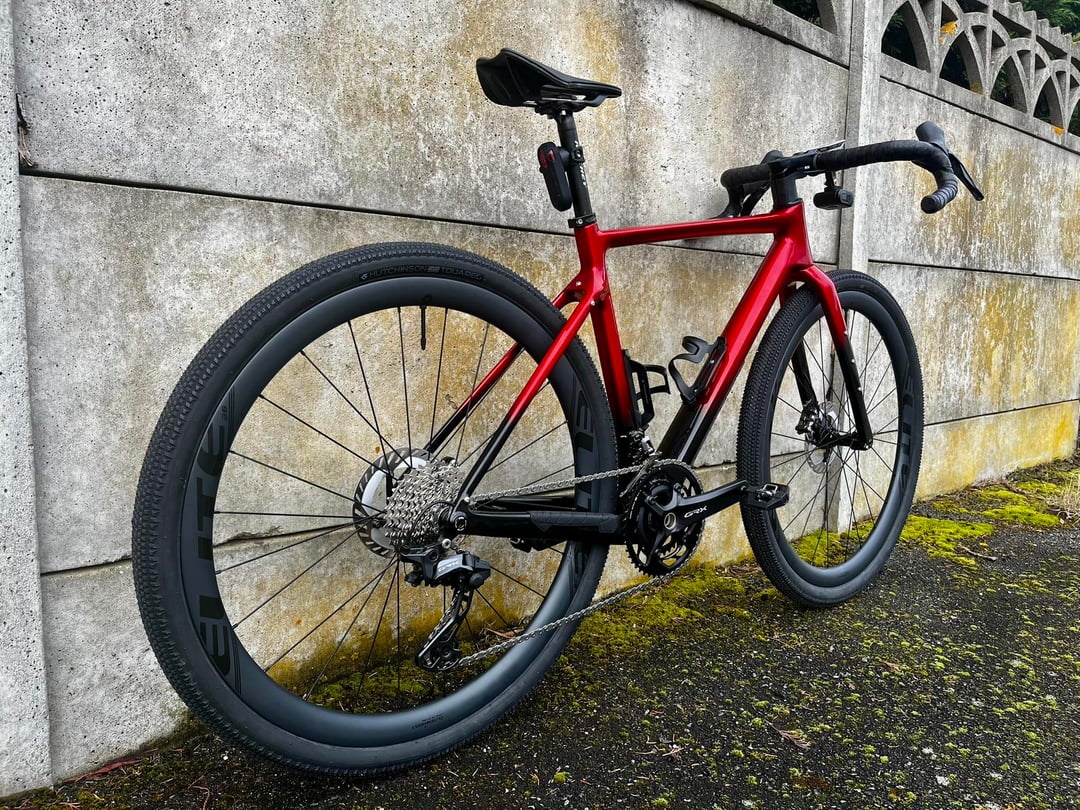

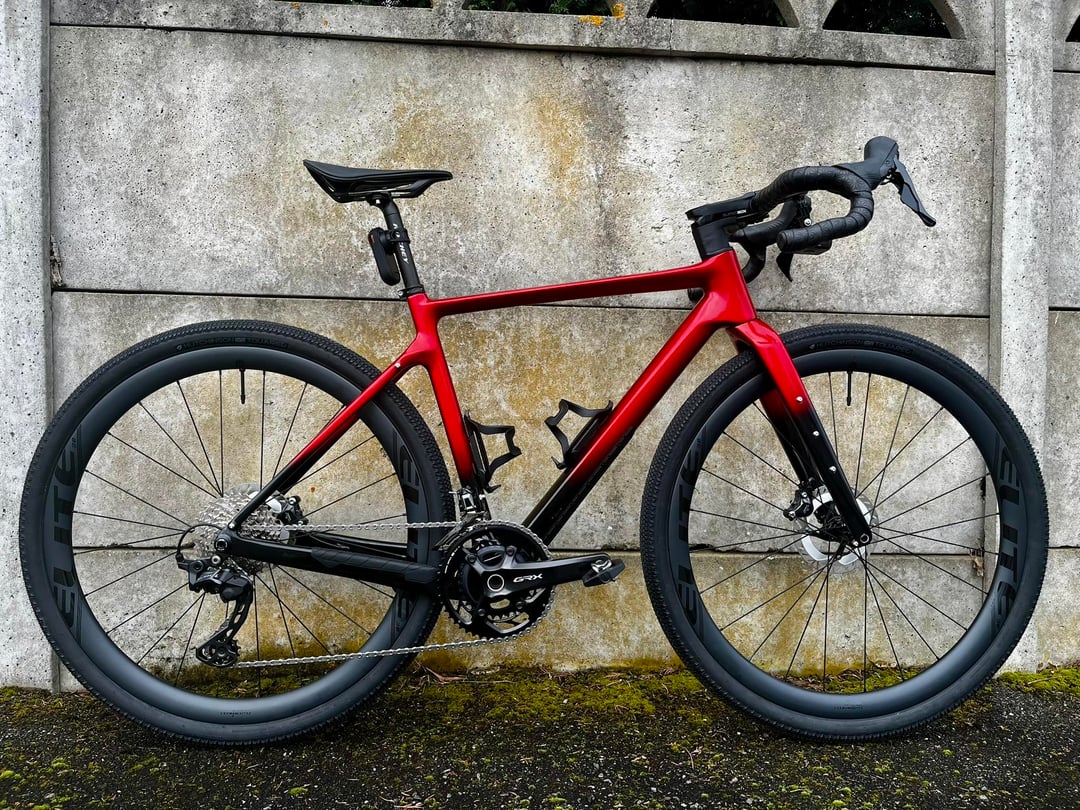

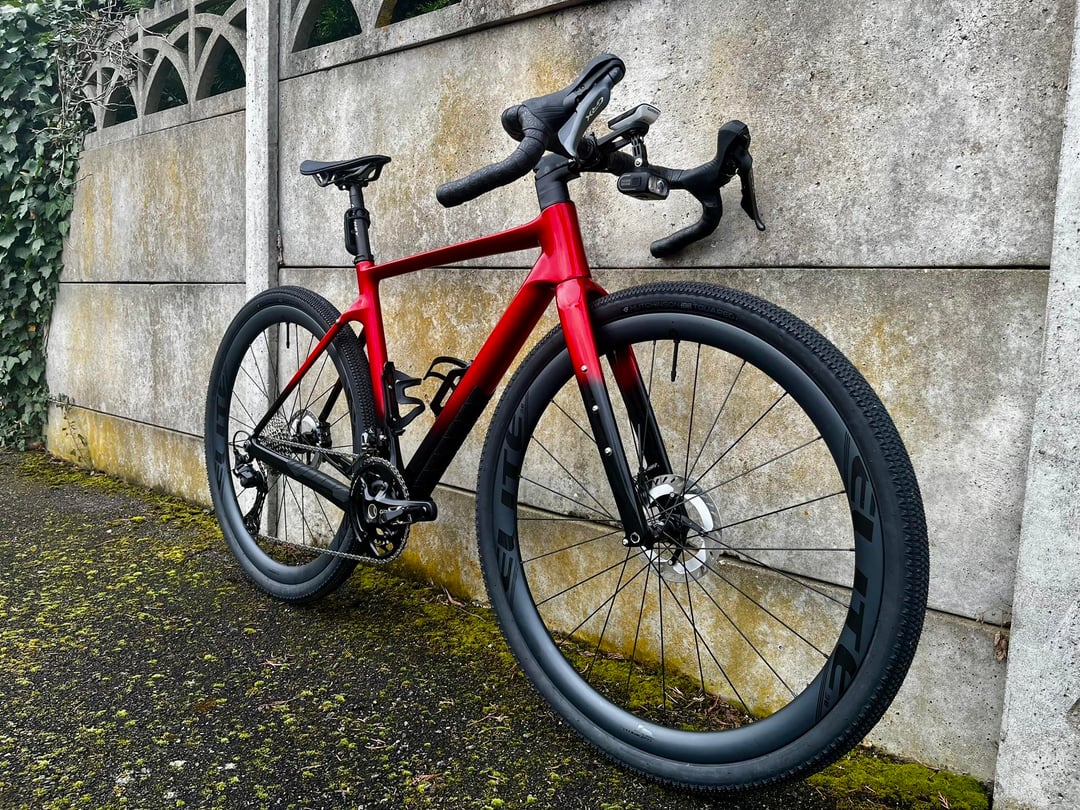

BXT 135 Gravel Build – GRX 820 + Elitewheels SLR

Just finished my gravel build and wanted to share it.

Total weight: 9.9 kg (21.8 lb) including bottle cages, computer and lights.
Total cost: around €1900, thanks to promotions and few second-hand parts

It also took me quite a few hours to figure out the correct semi-integrated headset, route the cables cleanly through the frame and cockpit, and properly bleed the brakes. It was a lot of trial and error, but I learned a lot in the process.

Frame / wheels

• Frame + fork — BXT 135 Gravel
• Rear wheel (38 mm rim, 25 mm internal width) — Elitewheels SLR Gravel
• Front wheel (38 mm rim, 25 mm internal width) — Elitewheels SLR Gravel
• Tires — Hutchinson Touareg 700×45c
• Tubeless valves 80mm — Aliexpress lowest cost

Drivetrain / brakes: Shimano only!

• Shift / brake levers — GRX ST-RX820
• Brake calipers — GRX BR-RX820

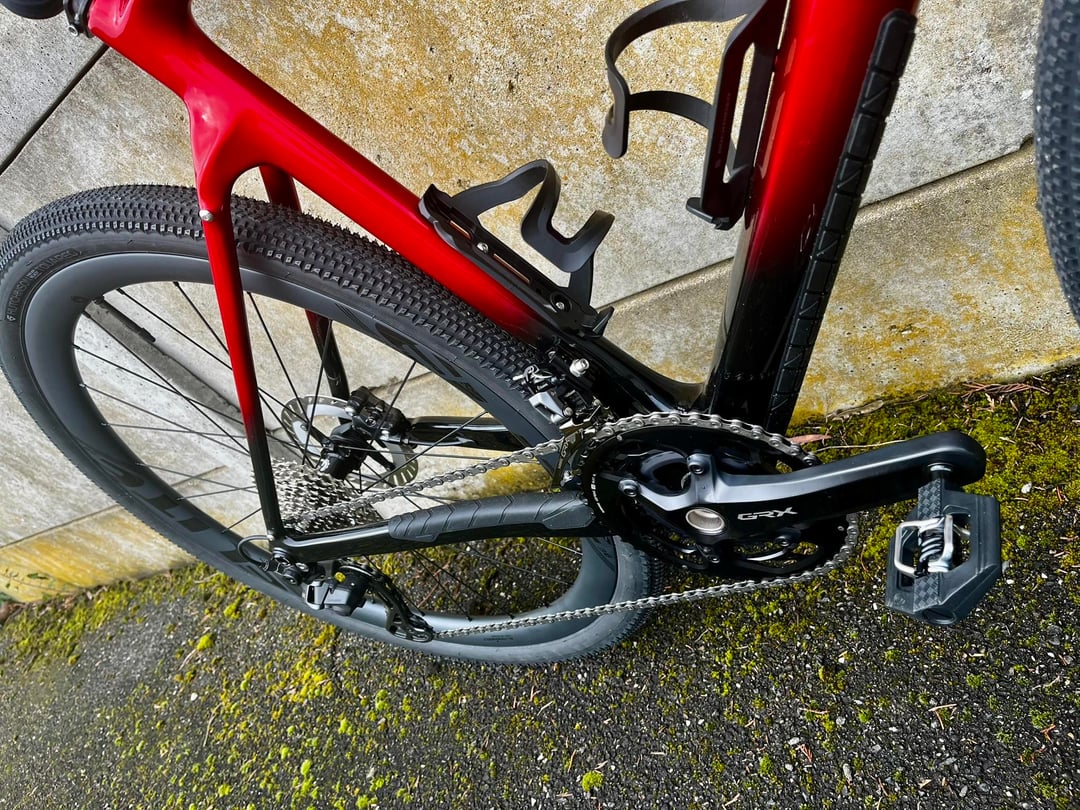

• Crankset 48/31 — GRX FC-RX820-2
• Rear derailleur — GRX RD-RX820
• Front derailleur — GRX FD-RX820
• Chain — Deore CN-M6100
• Cassette 11–36T — CS-HG710-12
• Brake rotor 160 mm — RT-CL800

Cockpit / contact points

• Handlebar — Ritchey Comp Venturemax 420 mm

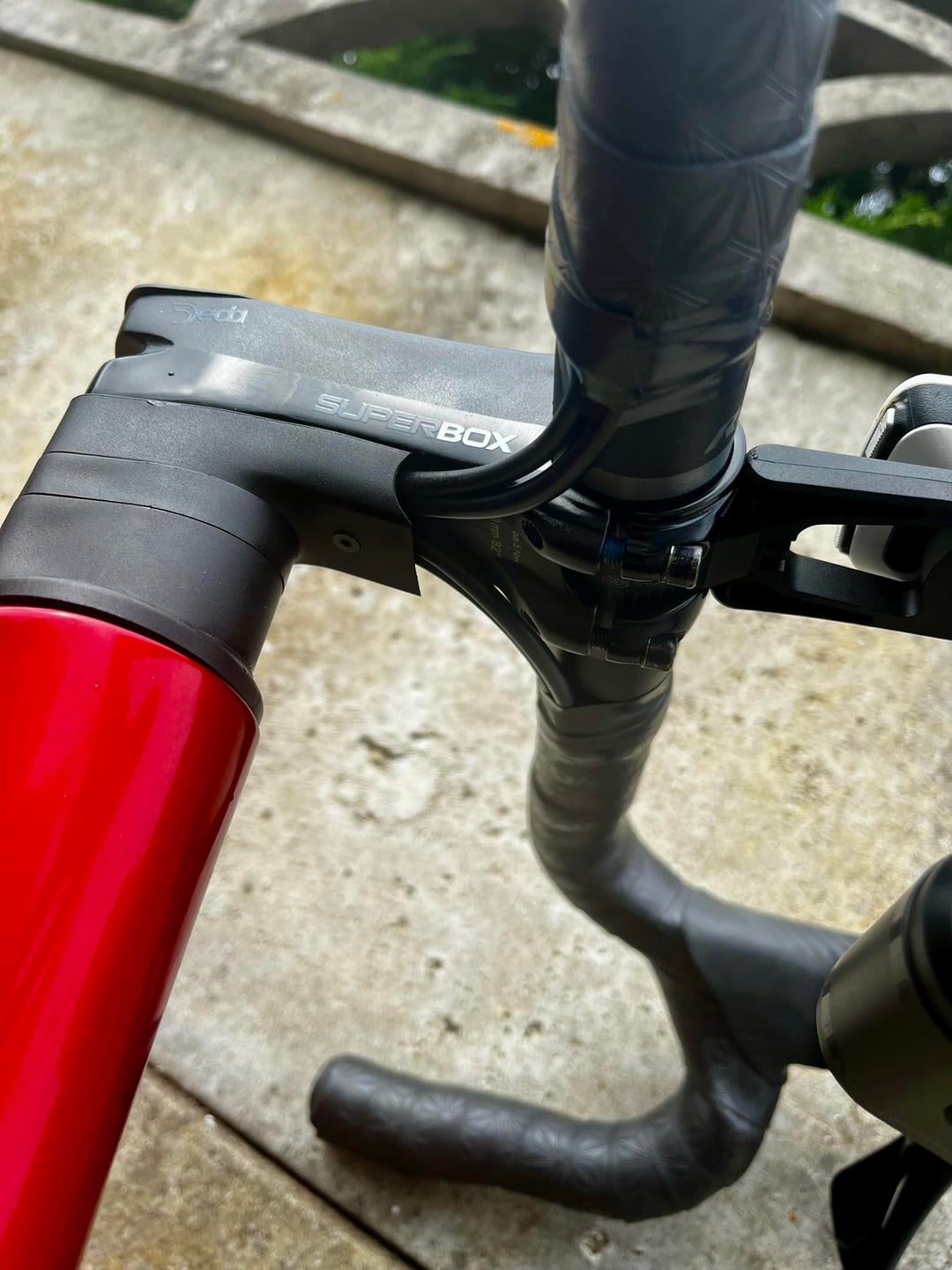

• Stem — Deda Superbox DCR
• Seatpost 350 mm — Ritchey
• Saddle — Selle Italia X Superflow
• Pedals — Crankbrothers Candy 1

Accessories

• Cycling computer mount — Deda mount
• Bottle cages — Decathlon
• Computer — Garmin Edge 520
• Front light — Magicshine Hori1300s
• Rear light — Garmin Varia RTL 515

Small parts

• Frame cable foam sleeves — Aliexpress lowest cost
• Bar tape — Aliexpress lowest cost
• Frame and chainstay protection — Aliexpress lowest cost

Really happy with how it turned out. Any thoughts or suggestions?
