Hello – I recently got a new bike and found that when my rear rack is loaded (with a tent etc.) it blocks my back light on seatpost.

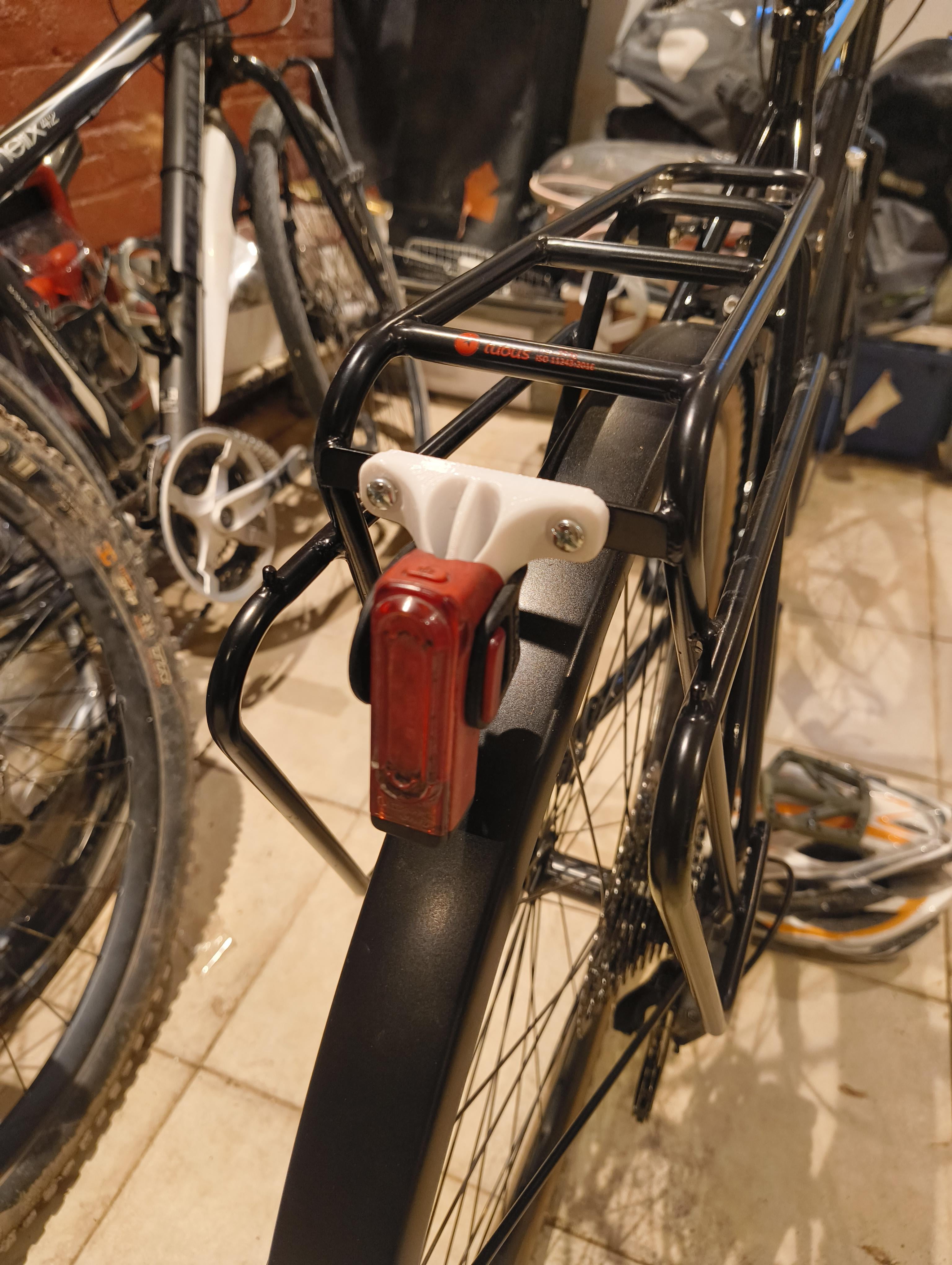

So I made this little bracket that allows you to attach to the back of the rear rack, and I thought it might be useful for others on here.
It's designed for a Lezyne light and a Tubus rack but should work with most lights that attach to a seatpost. The tube is 22mm diameter and the bolt holes are 6mm with a 50mm centre spacing. It weighs about 18g when printed in PETG.
The link has files for 3D printing and also SolidWorks files if you want to adjust any sizings.
https://grabcad.com/library/bicycle-rear-light-mount-for-tubus-rack-and-lezyne-light-1
by johnoe
4 Comments
Cool. Busch and Muller also make lights that fit that metal plate on the back of the Tubus racks
Thanks – whilst the two-hole mounting plate on the back of most racks is designed for a reflector/light to be fitted, most lights that fit are somewhat weak (designed to meet StVZO regulations) and lack the advanced technology (radar for example) available in other form factors.
I don’t have a 3D printer but I support your effort to solve this problem. There are hundreds of seat post mounted rear lights but only a handful of rack mounted rear lights.
Awesome! Can you make them in black? Do you sell them?
